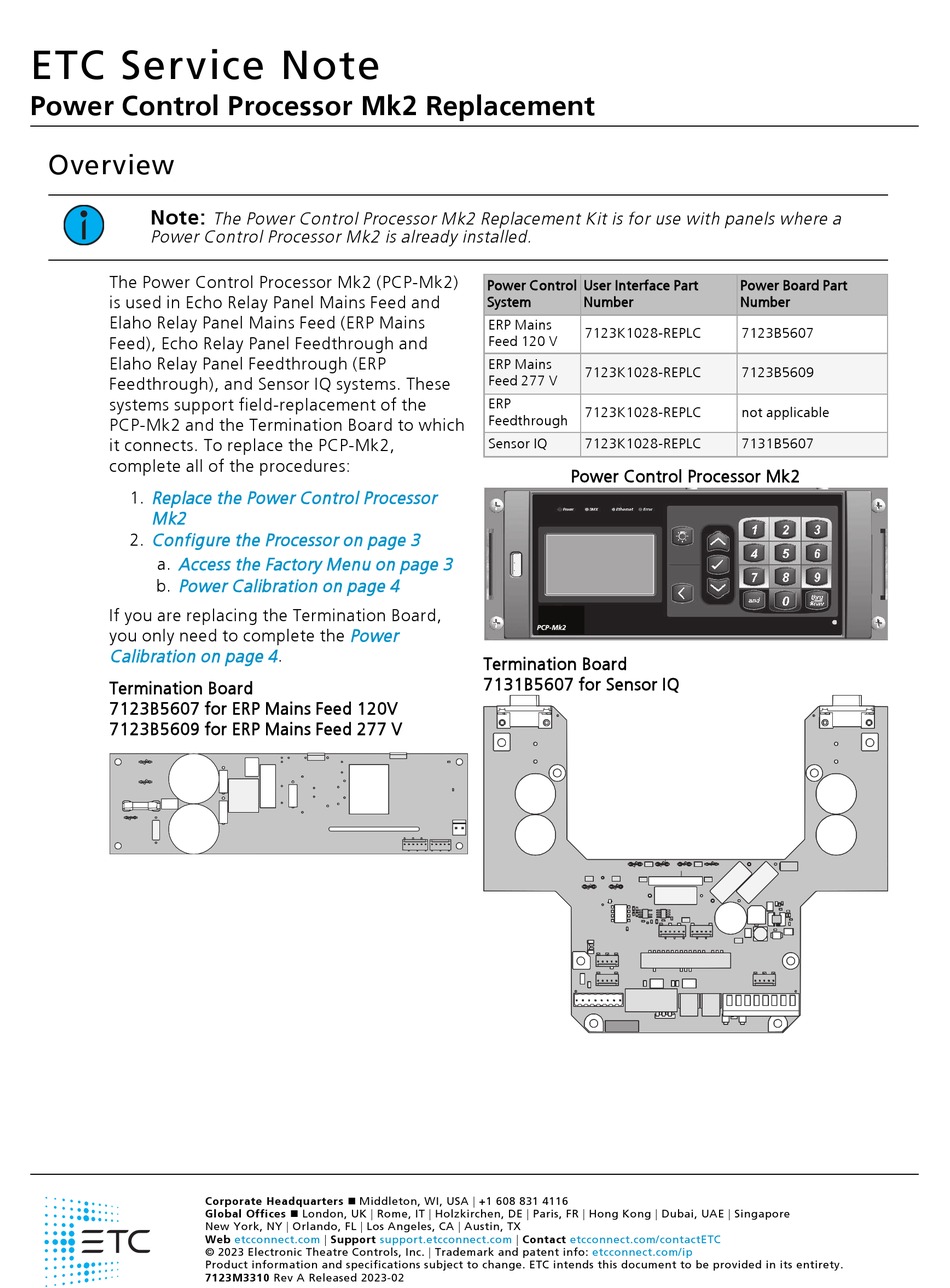

ETC Power Control Processor Mk2 Service Note

ETC Service Note
Power Control Processor Mk2 Replacement
Overview
Note:
Power Control Processor Mk2 is already installed.
The Power Control Processor Mk2 (PCP-Mk2)
is used in Echo Relay Panel Mains Feed and
Elaho Relay Panel Mains Feed (ERP Mains
Feed), Echo Relay Panel Feedthrough and
Elaho Relay Panel Feedthrough (ERP
Feedthrough), and Sensor IQ systems. These
systems support field-replacement of the
PCP-Mk2 and the Termination Board to which
it connects. To replace the PCP-Mk2,
complete all of the procedures:
1. Replace the Power Control Processor
Mk2
Configure the Processor on page 3
2.
Access the Factory Menu on page 3
a.
b. Power Calibration on page 4
If you are replacing the Termination Board,
you only need to complete the
Calibration on page 4
Termination Board
7123B5607 for ERP Mains Feed 120V
7123B5609 for ERP Mains Feed 277 V
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
Global Offices n London, UK | Rome, IT | Holzkirchen, DE | Paris, FR | Hong Kong | Dubai, UAE | Singapore
New York, NY | Orlando, FL | Los Angeles, CA | Austin, TX
Web
© 2023 Electronic Theatre Controls, Inc. | Trademark and patent info:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7123M3310 Rev A Released 2023-02
The Power Control Processor Mk2 Replacement Kit is for use with panels where a
Power
.
etcconnect.com | Support support.etcconnect.com
Power Control User Interface Part
System Number
ERP Mains
7123K1028-REPLC
Feed 120 V
ERP Mains
7123K1028-REPLC
Feed 277 V
ERP
7123K1028-REPLC
Feedthrough
Sensor IQ 7123K1028-REPLC
Power Control Processor Mk2
Termination Board
7131B5607 for Sensor IQ
| Contact etcconnect.com/contactETC
etcconnect.com/ip
Power Board Part
Number
7123B5607
7123B5609
not applicable
7131B5607
