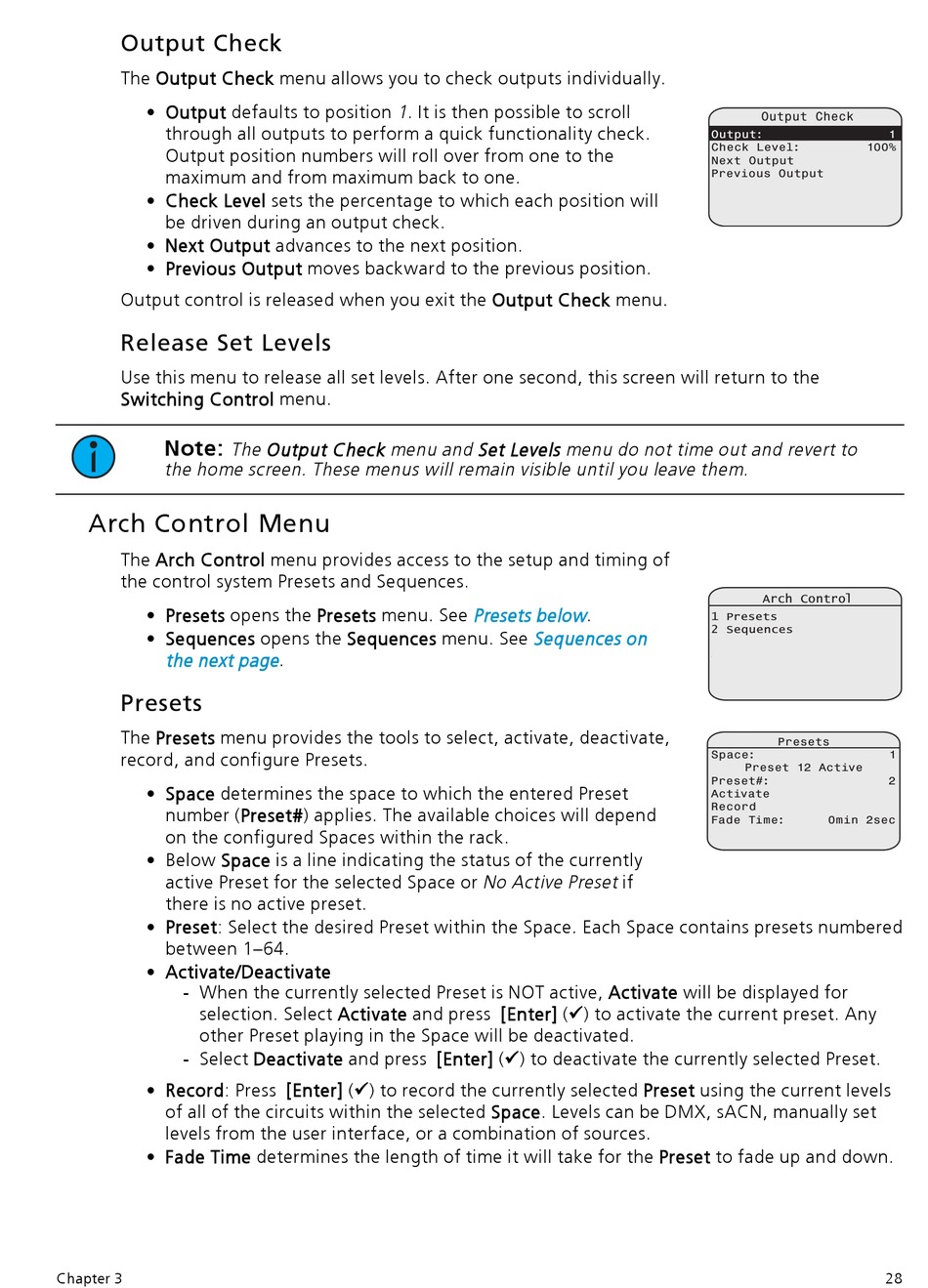

Output Check

The Output Check menu allows you to check outputs individually.
• Output defaults to position 1 . It is then possible to scroll
through all outputs to perform a quick functionality check.
Output position numbers will roll over from one to the
maximum and from maximum back to one.
• Check Level sets the percentage to which each position will
be driven during an output check.
• Next Output advances to the next position.
• Previous Output moves backward to the previous position.
Output control is released when you exit the Output Check menu.

Release Set Levels

Use this menu to release all set levels. After one second, this screen will return to the
Switching Control menu.
Note:
The Output Check menu and Set Levels menu do not time out and revert to
the home screen. These menus will remain visible until you leave them.

Arch Control Menu

The Arch Control menu provides access to the setup and timing of
the control system Presets and Sequences.
• Presets opens the Presets menu. See
• Sequences opens the Sequences menu. See
the next page

Presets

The Presets menu provides the tools to select, activate, deactivate,
record, and configure Presets.
• Space determines the space to which the entered Preset
number (Preset#) applies. The available choices will depend
on the configured Spaces within the rack.
• Below Space is a line indicating the status of the currently
active Preset for the selected Space or No Active Preset if
there is no active preset.
• Preset: Select the desired Preset within the Space. Each Space contains presets numbered
between 1–64.
• Activate/Deactivate
‐ When the currently selected Preset is NOT active, Activate will be displayed for
selection. Select Activate and press [Enter] (ü) to activate the current preset. Any
other Preset playing in the Space will be deactivated.
‐ Select Deactivate and press [Enter] (ü) to deactivate the currently selected Preset.
• Record: Press [Enter] (ü) to record the currently selected Preset using the current levels
of all of the circuits within the selected Space. Levels can be DMX, sACN, manually set
levels from the user interface, or a combination of sources.
• Fade Time determines the length of time it will take for the Preset to fade up and down.
Chapter 3
.
Presets below .
Sequences on
Output Check
Output:
Check Level: 100%
Next Output
Previous Output
Arch Control
1 Presets
2 Sequences
3 Start Timed Hold
4 Start Holiday Shutoff
5 Start Indefinite Hold
Presets
Space:
Preset 12 Active
Preset#:
Activate
Record
Fade Time: 0min 2sec
