ETC Setup Guide

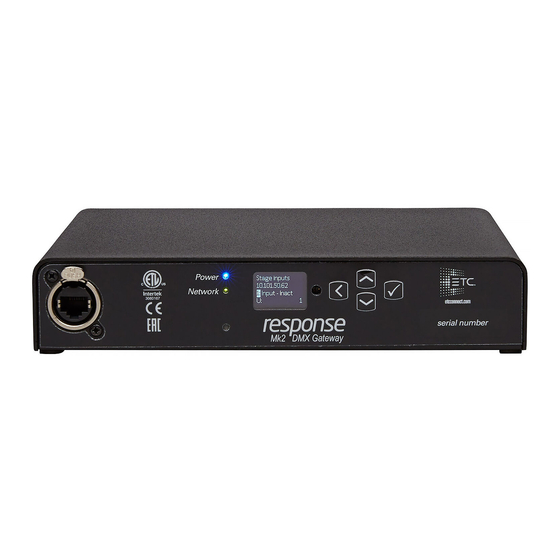

Response Mk2 Four-Port Gateway
This guide covers setup and installation of the Response Mk2 Four-Port Gateway. You can
configure additional software features using ETC Concert software. Reference the Help system in
Concert for more information. Concert software can be found at etcconnect.com/Concert.

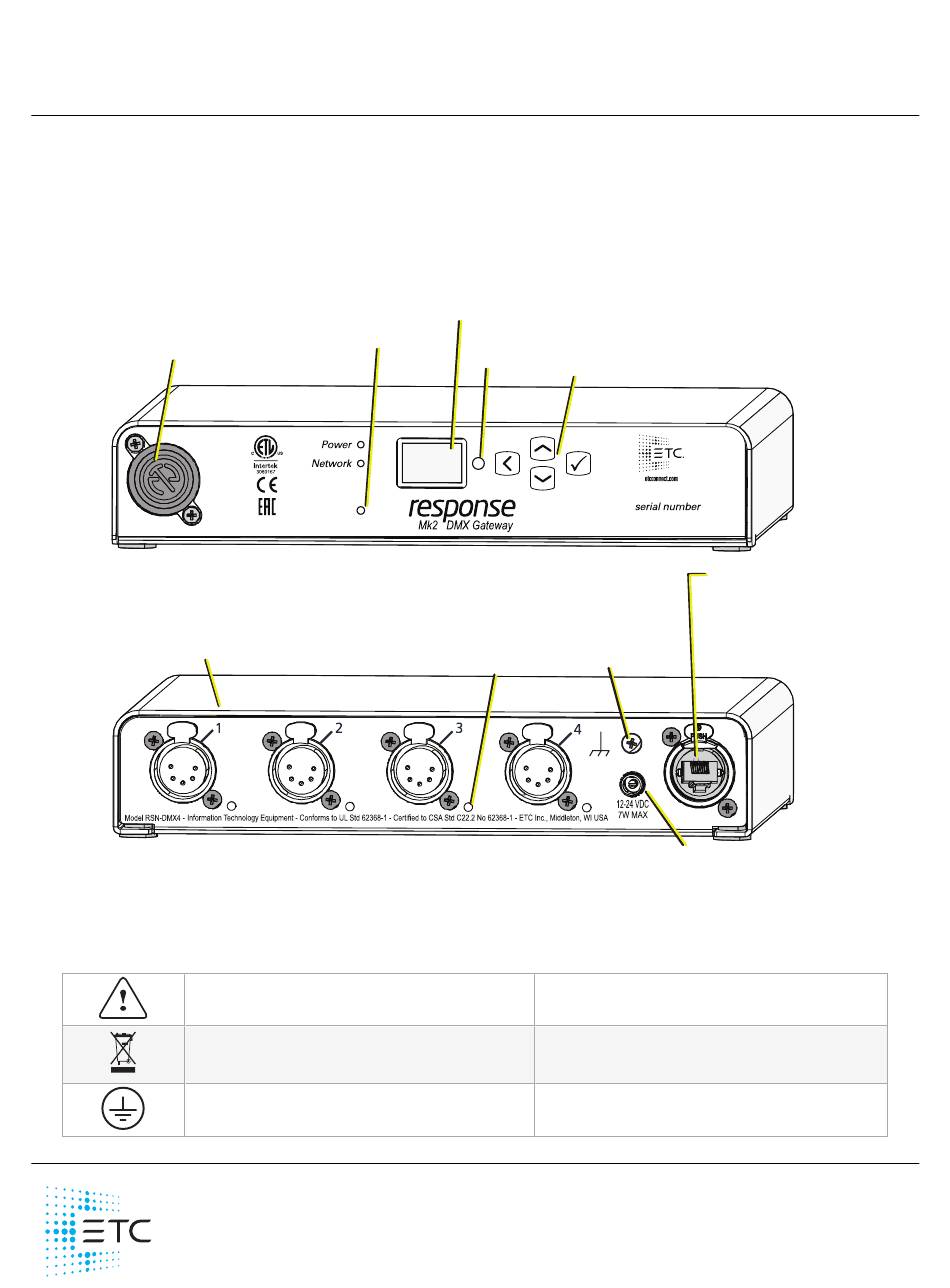

Overview
The Four-Port Gateway can be used on a tabletop or be rack-, pipe- or bar-mounted using
accessories
Alternative Ethernet
location
Available configurations:
4-DMX Out (XLR socket)
4-DMX In (XLR plug)
1-DMX In 3-DMX Out
4-DMX Terminal
4-DMX RJ45
Label Symbols
The Response Mk2 Gateways are conveniently labeled with relevant symbols for your safety. Refer
to the product label to see which symbols apply to your product.
General warning
This product should not be discarded as unsorted
waste but must be sent to separate collection facilities
for recovery and recycling.
Protective earth (ground)
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
Global Offices n London, UK | Rome, IT | Holzkirchen, DE | Paris, FR | Hong Kong | Dubai, UAE | Singapore
New York, NY | Orlando, FL | Los Angeles, CA | Austin, TX | © 2023 Electronic Theatre Controls, Inc.
Web
Trademark and patent info:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
4268M2200 Rev F Released 2023-08
(available separately).
Reset button
etcconnect.com
| Support
support.etcconnect.com
etcconnect.com/ip
OLED screen
Touch to
Up, Down, Back,
Wake Sensor
Enter buttons
Ground screw
Port indicator
Avertissement général
Ce produit ne doit pas être jeté avec les déchets
ménagers mais doit être déposé dans une collecte de
déchets électroniques ou dans un point de collecte.
Protection Classe I Mise à la terre
| Contact
etcconnect.com/contactETC
| Third-party license agreement
optional
Default Ethernet location
PoE (IEE 802.3af)
10/100Mbps data speeds
Auto-sensing
Auto-negotiation
RJ45 and etherCON compatible
DC power input
info: etcconnect.com/licenses

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Response Mk2 and is the answer not in the manual?

Questions and answers

Related Manuals for ETC Response Mk2

Summary of Contents for ETC Response Mk2

  • Page 1 ETC Setup Guide Response Mk2 Four-Port Gateway This guide covers setup and installation of the Response Mk2 Four-Port Gateway. You can configure additional software features using ETC Concert software. Reference the Help system in Concert for more information. Concert software can be found at etcconnect.com/Concert.

  • Page 2: Led Indicators

    Red (slow blinking): No active DMX input on the port Red (fast blinking): DMX source is invalid Off: Port disabled or power off Red-Green (alternating blinking): The port is updating a connected ETC device Amber-Green (alternating blinking): The port is in DMX test mode Action Buttons Up, Down, Back –...

  • Page 3: Connection Options

    DMX data transmission and connections should follow the standard pinouts per the charts below. The optional secondary data pair is not used by the Response Mk2 Gateways. The DMX RJ45 variant can use a standard RJ45 Cat5e cable or better to transmit DMX-512 to other devices with the same connector.
  • Page 4 Switching the Network Port The Response Mk2 Four-Port Gateway can have the Ethernet connector installed on the front or back of the unit. To switch the location, perform the following steps: 1. Using a Phillips screwdriver, remove the four screws on the bottom of the gateway and slide the cover off from front to back.

  • Page 5: Dmx Termination

    Examples of responders are RDM-enabled edge devices such as color scrollers, dimmers, moving lights, and LED fixtures. Compliant DMX-512 and DMX-512-A devices (non-RDM devices) are fully functional when RDM is present. The Response Mk2 Gateway supports up to 256 total RDM devices across its ports using standard DMX system design practices.

  • Page 6: Installation

    ETC Setup Guide Four-Port Gateway Installation Note: Installation must follow all national and local codes for electrical equipment. The Four-Port Gateway is designed for easy setup and can be set on a tabletop or mounted on a pipe, rack, or bar. For information about mounting to a pipe, rack, or bar, refer to...
  • Page 7 If you receive a User Interface Locked message when accessing the Setup or Operations options, the gateway UI is locked. To unlock the UI, you must use the ETC Concert software. View Device Information To view information specific to your gateway, select the About menu option from the Home screen.

  • Page 8: Configure Port Settings

    ETC Setup Guide Four-Port Gateway Configure Port Settings 1. From the Home screen, select Setup > Ports. 2. Use the Enter button to move from the menu options on the left to the values on the right side of the screen. Use the Up and Down buttons to change the values and press Enter again to confirm the change.

  • Page 9: Restore Default Settings

    ETC Setup Guide Four-Port Gateway Restore Default Settings To restore the factory defaults for your device, select the Operations menu from Restore Defaults the home screen and choose the Restore Defaults option. This returns the All data will be lost gateway to its out-of-the-box settings.
  • Page 10 ETC Setup Guide Four-Port Gateway UI Flowchart Note: This product uses licensed software provided by third parties. Please visit http://www.etcconnect.com/licenses/ for licensing information. Four-Port Gateway Page 10 of 10...
