Weather station "home"
Weather station "home"
Art. No. : 2224 WH
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
These instructions are an integral part of the product, and must remain with the end
customer.

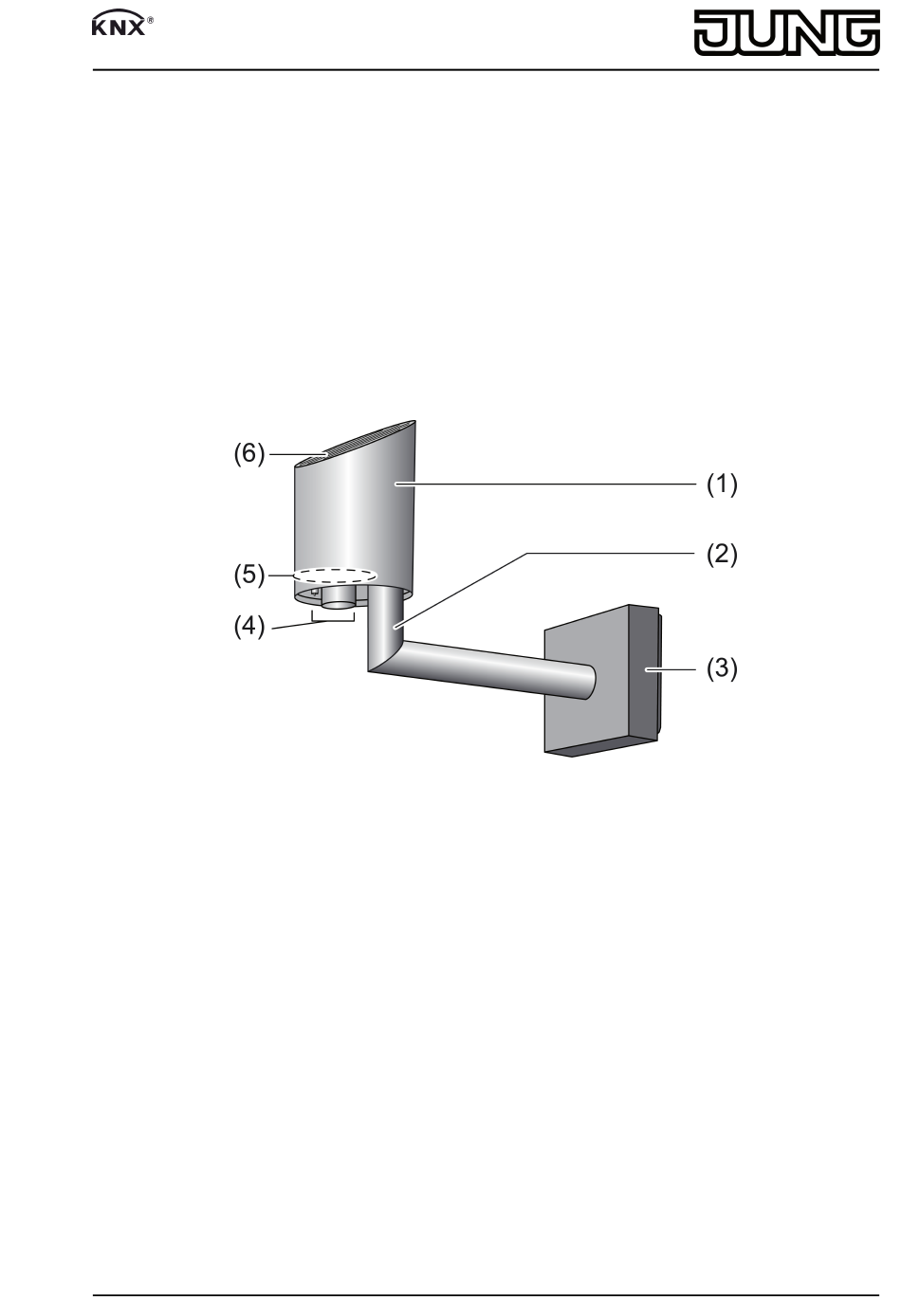

2 Device components
(1) Sensor head
(2) Angular arm
(3) Terminal box
(4) Temperature and wind sensors
(5) Light and twilight sensors
(6) Rain sensor
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
The function of this device depends upon the software. Detailed information on loadable
software and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database. Planning, installation and commissioning of the device are
carried out with the aid of KNX-certified software. The latest versions of product database and
the technical descriptions are available on our website.
Intended use
-
Measurement and evaluation of the weather data: Wind speed, Precipitation, Twilight,
Temperature and brightness
-
Vertical installation on the outside of buildings, preferable in the roof and facade area
82562833
J:0082562833
Figure 1: View
1/6
19.02.2014
