Internal and External Battery Status

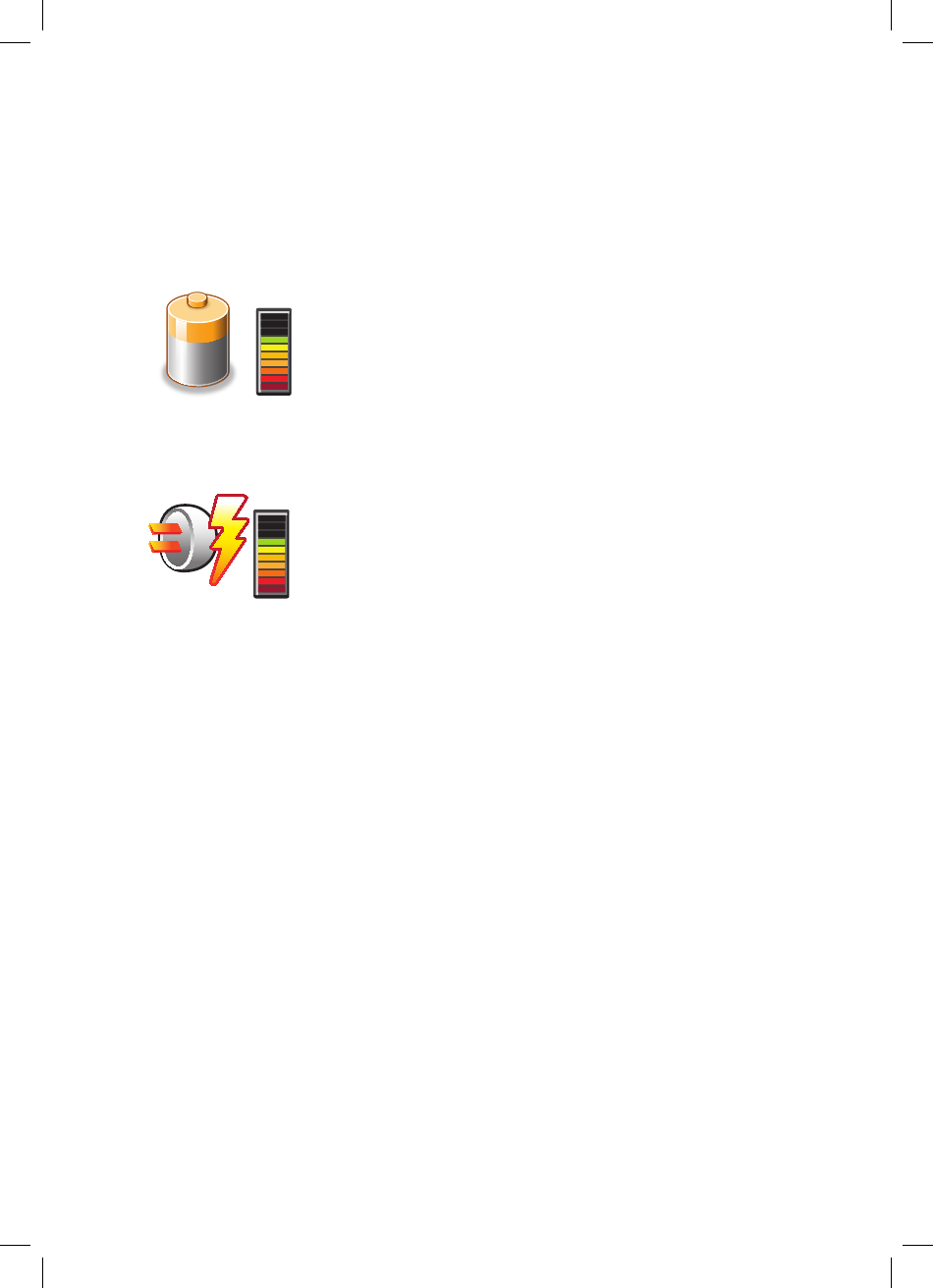

This icon shows whether an external power source is
available (Power Plug icon) or if the CCU is operating
on internal batteries (Battery icon).
The gauge to the right of this icon shows the available
capacity of internal batteries as a fraction of their
total capacity. The available proportion of the internal
battery is shown as the colored bars at the bottom of
the gauge, a fully charged battery shows all colored
bars, and a fully discharged battery shows no colored
bars.
The gauge to the right of this icon shows battery
capacity available while the CCU is being operated on
battery and the charged state when the CCU is being
operated from an external power source. When
connected to an external power source, the battery
icon is replaced with a power plug icon and when the
battery is charging a lightning strike symbol appears
to the right of the icon.
