Summary of Contents for Aplex APC-3x84B
- Page 1 Electronic Panel Single Board Industrial Design PC / HMI Computer Why choose DSL? Our Services • Over 25 Years • Electronic Design Industry Experience • Production Management • 5 Years Warranty • Assembly and Test on all Products • Bespoke BIOS Creation •...

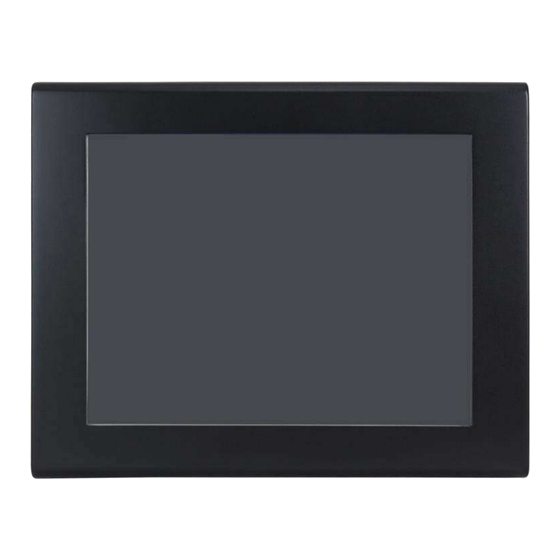

- Page 2 15”, 17”, and 19” Fanless 5 sides IP65 Intel Celeron Stainless Steel Panel PC User Manual Release Date Revision Mar. 2016 V1.1 ®2016 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Tel: 886-2-82262881 Fax: 886-2-82262883 URL:...
-
Page 3: Revision History
Revision History Reversion Date Description 2015/10/08 Official Version 2016/03/31 Update APC-3X84B Spec., Remove the two screws on the IO side APC-3x84B/APC-3x85B User Manual... -
Page 4: Warning
This information in this document is subject to change without notice. In no event shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related materials. -
Page 5: Packing List
Packing List Accessories (as ticked) included in this package are: □ Adaptor □ Driver & manual CD disc □ Other.___________________(please specify) APC-3x84B/APC-3x85B User Manual... -
Page 6: Safety Precautions
Always disconnect power when the system is not in use. ◆ Disconnect power when you change any hardware devices. For instance, when you connect a jumper or install any cards, a surge of power may damage the electronic components or the whole system. APC-3x84B/APC-3x85B User Manual... -
Page 7: Table Of Contents
Getting Started 1.1 Features………………………..………………………...…………………………..7 1.2 Specifications…………………...………………………………………………….7 1.3 Dimensions………………………..……………………………………………...9 1.4 Brief Description of APC-3x84B/3x85B.………………………….……12 1.5 Installation of HDD/SSD and SD Card – APC-3X84B/3X85B….14 1.6 Installation of I/O Cover – APC-3X84B…………………………….….16 1.7 Installation of I/O Cover – APC-3X85B.…………………………….…17 Chapter 2 Hardware 2.1 Motherboard Introduction……………………...……………..………..18 2.2 Specifications…………………………..…………………………………………18... - Page 8 Figure 1.4: Dimensions of APC-3785B…………………………………………………10 Figure 1.5: Dimensions of APC-3984B……………………………..…………………11 Figure 1.6: Dimensions of APC-3985B………………………………………………..11 Figure 1.7: Front View of APC-3x84B…………………..…………………………….12 Figure 1.8: Rear View of APC-3x84B………………………………………………..…12 Figure 1.9: Rear view with I/O Cover………………………………………………….12 Figure 1.10: Front View of APC-3x85B…………….…….……………………….….13 Figure 1.11: Rear View of APC-3x85B…………………….……………………….….13...
-
Page 9: Getting Started
1 x 3-pin DC Power input terminal Power 1 x power switch on/off Storage Space 1 x 2.5" HDD Space Storage 1 x Internal SD slot onboard Expansion 1 x Mini-PCIe slot full size Expansion Slot Optional WiFi/BT with Antenna APC-3x84B/APC-3x85B User Manual... - Page 10 9~36V DC MAX:18.6W(3584B) MAX:21.9W(3784B) MAX:17.6W(3984B) Power Consumption MAX:21.4W(3585B) MAX:19.8W(3785B) MAX:26.7W(3985B) Mechanical Stainless Steel Chassis for APC-3x84B Construction Black Steel Chassis for APC-3x85B IP Rating 5 sides IP65 with I/O cover VESA Mount Mounting VESA Mount 75 x 75 100 x 100 Dimensions 398 x 316 x 50.5 mm...
-
Page 11: Dimensions
1.3 Dimensions Figure 1.1: Dimensions of APC-3584B Figure 1.2: Dimensions of APC-3585B APC-3x84B/APC-3x85B User Manual... -
Page 12: Figure 1.3: Dimensions Of Apc-3784B
Figure 1.3: Dimensions of APC-3784B Figure 1.4: Dimensions of APC-3785B APC-3x84B/APC-3x85B User Manual... -
Page 13: Figure 1.5: Dimensions Of Apc-3984B
Figure 1.5: Dimensions of APC-3984B Figure 1.6: Dimensions of APC-3985B APC-3x84B/APC-3x85B User Manual... -
Page 14: Brief Description Of Apc-3X84B/3X85B
3 x USB 2.0, 1 x USB 3.0, 2 x RS-232 COM ports, 1 x RS-422 COM port, 2 x Line-out, 2 x LAN, and 1 x Power Switch. APC-3x84B is stainless steel chassis designed; APC-3x85B is black steel chassis designed. The model can be VESA 75 x 75 mounted for 15”... -
Page 15: Figure 1.10: Front View Of Apc-3X85B
Figure 1.10: Front View of APC-3x85B Figure 1.11 Rear View of APC-3x85B Figure 1.12: Rear View with I/O Cover APC-3x84B/APC-3x85B User Manual... -
Page 16: Installation Of Hdd/Ssd And Sd Card - Apc-3X84B/3X85B
1.5 Installation of HDD/SSD and SD Card – APC-3X84B/3X85B Step 1 There are six screws to deal with when enclosing or removing the chassis. Gently remove two screws. Step 2 Pull out the cover. Step 3 Unscrew the screw. APC-3x84B/APC-3x85B User Manual... - Page 17 Pull out the bracket carefully. Step 5 You can replace HDD or SSD by unscrewing four screws as shown in the picture. Step 6 Inside the chassis, you can replace the SD card as shown in the picture. APC-3x84B/APC-3x85B User Manual...
-
Page 18: Installation Of I/O Cover - Apc-3X84B
1.6 Installation of I/O Cover – APC-3X84B Step 1 This is how it looks when the I/O cover is mounted. To dismount the cover, you have to unscrew the two screws. Step 2 Then you can take the I/O cover out. -
Page 19: Installation Of I/O Cover - Apc-3X85B
1.7 Installation of I/O Cover – APC-3X85B Step 1 This is how it looks when the I/O cover is mounted. To dismount the cover, you have to unscrew the six screws. Step 2 Then you can take the I/O cover out. APC-3x84B/APC-3x85B User Manual... -
Page 20: Chapter 2 Hardware
Up to 1920 x 1200 for HDMI Support Up to 1920 x 1200 for LVDS (PS8625) Resolution Up to 1920 x 1200 for CRT HDMI + LVDS Dual Display HDMI + CRT LVDS + CRT ITE IT8518E Super I/O Fintek F81216AD APC-3x84B/APC-3x85B User Manual...
