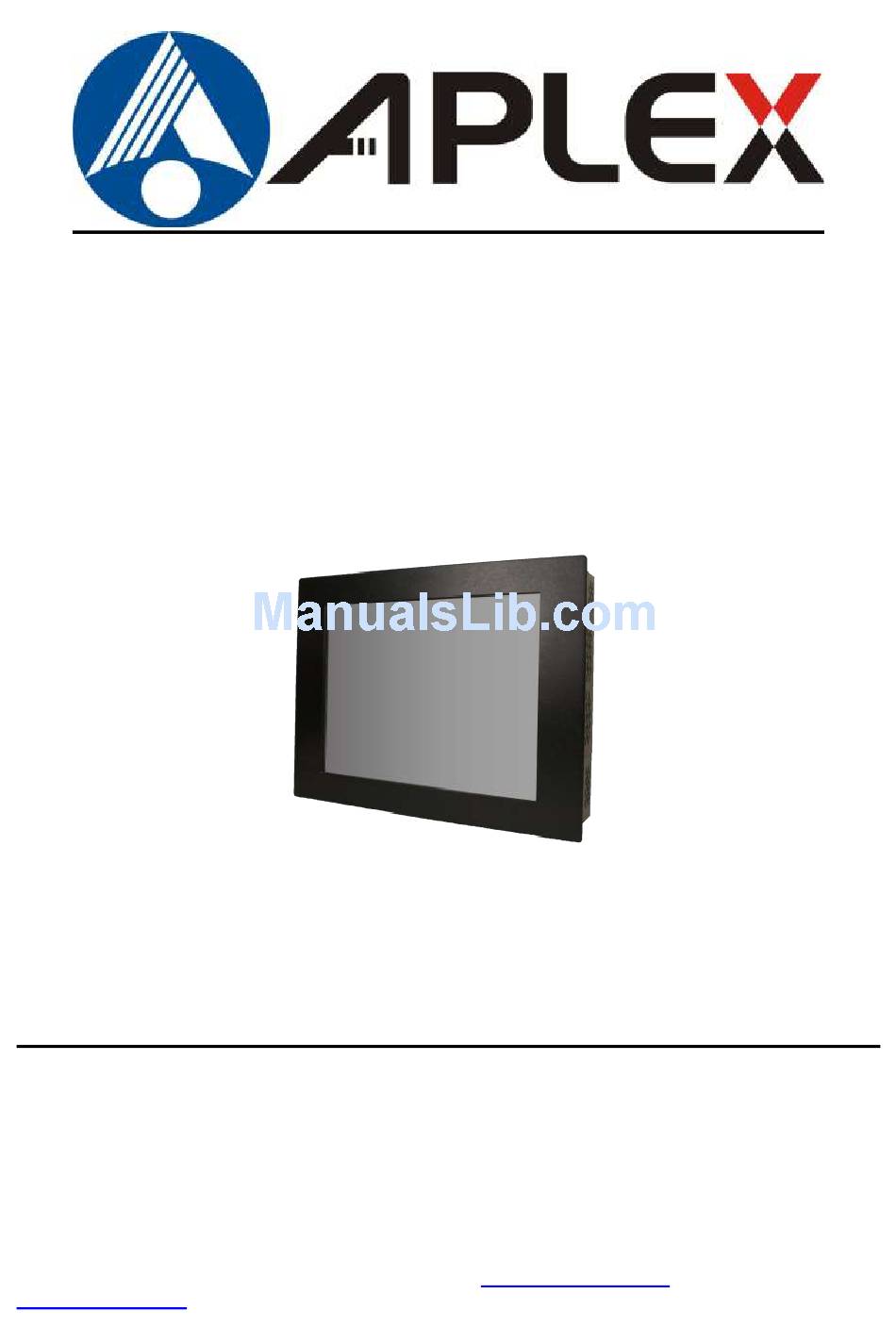

APC-3X19
User Manual
Release Date
Revision
Apr 2014
V2.3
® 2014 Aplex Technology, Inc.
All Rights Reserved.
Published in
Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail:
aplex@aplex.com.tw
URL:
www.aplex.com.tw
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APC-3519 and is the answer not in the manual?

Questions and answers

Related Manuals for Aplex APC-3519

Summary of Contents for Aplex APC-3519

  • Page 1 APC-3X19 User Manual Release Date Revision Apr 2014 V2.3 ® 2014 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail: aplex@aplex.com.tw...

  • Page 2: Warning

    This information in this document is subject to change without notice. In no event shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or...

  • Page 3: Packing List

    Packing List Accessories (as ticked) included in this package are: □ Power Connector □ Driver & manual CD disc □ Other.___________________(please specify) Safety Precautions Follow the messages below to avoid your systems from damage: ◆ Avoid your system from static electricity on all occasions. ◆...

  • Page 4: Table Of Contents

    Table of Contents__________ Warning!…………………………………………………………………….……..….2 Disclaimer………………………………………………………….…………………2 Packing List.......................3 Safety Precautions....................3 Chapter 1 Getting Started 1.1 Specifications……………...………………….………….……...…..6 1.2 Dimensions…………...……………...……………….…………..7 1.3 Brief Description of APC-3X19…..……………….………………10 1.4 Installation of HDD………...………………...….…………….……11 1.5 Installation of Riser Card………………..…………………………13 Chapter 2 Hardware Installation 2.1 Mainboard Specifications……………………………….…………16 2.2 Jumpers Setting and Connectors…………………...……………19 Chapter 3 BIOS Setup 3.1 Operations after POST Screen..........35...
  • Page 5 Figures Figure 1.1: Dimensions of APC-3519………..………………………...7 Figure 1.2: Dimensions of APC-3719 ….…….……..………………..8 Figure 1.3: Dimensions of APC-3919 ….…….……..………………..9 Figure 1.4: Front View of APC-3x19.….…….……..………………..10 Figure 1.5: Rear View of APC-3x19.….…….……..………………..10 Figure 2.1: Mainboard Dimensions……...…………………..……..…11 Figure 2.2: Jumpers and Connectors Location-TOP……………..…19...

  • Page 6: Specifications

    Chapter 1_____________Getting Started 1.1 Specifications Model No. Specs APC-3519 APC-3719 APC-3919 System Processor Intel G2 socket, support up to 3 Gen Core i7 3630QM 2.4GHz Processor System Chipset Intel HM77 System Memory 2 x 204 Pin DDR3 SO-DIMM, up to 16GB 1066/1333 MHz Storage 2 x 2.5"...

  • Page 7: Dimensions

    410x310x119 439x348x119 484x400x115 Gross Weight 8.9 kg 9.8 kg 12.1 kg Environmental Operating Temperature 0~50 ﾟ C -20~60 ﾟ C Storage Temperature 10~90% @40 ﾟ C non-condensing Storage Humidity Certificate CE/FCC Class A 1.2 Dimensions Figure 1.1: Dimensions of APC-3519...

  • Page 8: Figure 1.2: Dimensions Of Apc-3719

    Figure 1.2: Dimensions of APC-3719...

  • Page 9: Figure 1.3: Dimensions Of Apc-3919

    Figure 1.3: Dimensions of APC-3919...

  • Page 10: Brief Description Of Apc-3X19

    1.3 Brief Description of APC-3X19 APC-3x19 is a fanless and high-performance panel-mount industrial panel PC with 15”/17/19” TFT LCD. It is powered by Intel HM77 chipset and support Core i3/i5/i7 Processor up to i7 3630QM 2.4GHz. The panel PC has a rich variety of functions and peripherals. It supports DDR3 memory up to 8GB, rich I/O ports, and a wide range 9~32V DC input.

  • Page 11: Installation Of Hdd

    1.4 Installation of HDD Step 1 There are 2 screws to deal with when enclosing or removing the HDD bracket. Step 2 There is 1 screw to deal with when enclosing or removing the HDD Tray. Step 3 Loosen screw and draw the HDD bracket out as shown in the picture...
  • Page 12 Step 4 Tighten four screws as shown in the picture. F Screw M3*5L 120° Step 5 Push into the HDD bracket as shown in the picture Step 6 That’s how it should look after it has been installed.

  • Page 13: Installation Of Riser Card

    1.5 Installation of Riser Card Step 1 There are 2 screws to deal with when enclosing or removing the bracket. Step 2 Remove the cover. Step 3 Loosen the screw.
  • Page 14 Step 4 Put the riser card in. Put the riser card in. Put the riser card in.
  • Page 15 Step 5 Tighten two screws.

  • Page 16: Mainboard Specifications

    Chapter 2_____ __Hardware Installation 2.1 Mainboard Specifications Introduction ASB-M8771 is a Mini-ITX industrial motherboard developed on the basis of Intel QM77/HM77,which provides abundant peripheral interfaces to meet the needs of different customers. Also, it features dual GbE ports, 6-COM ports and one Mini PCIE configuration. To satisfy the special needs of high-end customers, ADOtec designed 120Pin PCIe x16 and 40Pin PCIe x1expansion interface.
  • Page 17 Specifications 170mm x 170mm Board Size Support Socket G2, 2nd/3rd Gen Intel Core i3/i5/i7 Processors CPU Support Chipset Intel HM77 (ASB-M8771H) Memory Support 2 x SO-DIMM (204pins), up to 16GB DDRIII 1066/1333/1600MHz FSB Graphics Intel HD Graphics 4000 Super I/O Winbond W83627UHG AMIBIOS 16M BIOS...
  • Page 18 8-bit digital I/O by Pin header by MIO2 Digital I/O 4-bit digital Input 4-bit digital Output Support CR2477 Li battery by 2-pin header Battery Support CR2032 Li battery (BAT2,option) Audio Support Audio via Realtek ALC662 HD audio codec Support Line-out, MIC by JACK1 Support Line-in, Line-out, MIC by 2x6-pin header PS2 K/B and Mouse by MIO2 Keyboard /Mouse...

  • Page 19: Jumpers Setting And Connectors

    12V/3.80A (Intel i5-2430M 2.4GHz Processor with 4GB DDR3) Power 19V/2.0A (Intel i5-2540 2.6GHz Processor with 8GB DDR3) Consumption 19V/2.2A(Intel i7-2620 2.7GHz Processor with 8GB DDR3) Meet CE/FCC class A EMI/EMS 2.2 Jumpers Setting and Connectors Jumpers and Connectors Location-TOP Figure 2.2:...

  • Page 20: Figure 2.3: Jumpers And Connectors Location- Bottom

    Jumpers and Connectors Location- Bottom Figure 2.3:...
  • Page 21 1. RTC1/SRTC1: (2.0mm Pitch 1X2 Pin Header)CMOS clear jumper, CMOS clear operation will permanently reset old BIOS settings to factory defaults. RTC1/SRTC1 CMOS Open or NORMAL (Default) （RTC1Pin1-SRTC1 Pin close） Close 1-2 Clear CMOS Procedures of CMOS clear: a) Turn off the system and unplug the power cord from the power outlet. b) To clear the CMOS settings, use the jumper cap to close pins1 and 2 for about 3 seconds then reinstall the jumper clip back to pins open.
  • Page 22 5. DCIN: (5.08mm Pitch 1x3 Pin Connector),DC9V ~ DC32V System power input connector。 Pin# Power Input Pin1 DC+9V~32V Pin2 Ground Pin3 6. ATX12V_IN (ATX Power option): (2x2 Pin Connector), DC12V System power input connector. Pin# Power input Pin1 Ground Pin2 Ground Pin3 DC+12V...
  • Page 23 Pin1 DC+12V Pin2 Ground Pin3 Ground Pin4 DC+5V 9. U1: (Socket G2), installing the 2nd GEN intel Core i3/i5/i7CPU Socket. 10. CPU_FAN1/SYS_FAN1: (2.54mm Pitch 1x3 Pin Header),Fan connector, cooling fans can be connected directly for use. You may set the rotation condition of cooling fan in menu of BIOS CMOS Setup. Pin# Signal Name Ground...
  • Page 24 Pin# Signal Name +DC12V +DC12V Ground Ground BKLT_EN BKLT_CTRL Note: Pin6 is backlight control signal, support DC or PWM mode, mode select at BIOS CMOS menu. 14. LVDS1: (1.25mm Pitch 2x20 Connector), For 18/24-bit LVDS output connector, Fully supported by Intel QM67 chipset, the interface features dual channel 18/24-bit output. Signal Name Pin# Pin#...
  • Page 25 15. HDMI1: (HDMI 19P Connector), High Definition Multimedia Interface connector. 16. DVI-I: (DVI-I Connector), Digital Visual Interface-Integrated connector. 17. BT1: POWER on/off Button, They are used to connect power switch button. The two pins are disconnected under normal condition. You may short them temporarily to realize system startup &...
  • Page 26 20. COM1: (Type DB9), Rear serial port, standard DB9 Male serial port is provided to make a direct connection to serial devices. RS232 (Default): Pin# Signal Name DCD# (Data Carrier Detect) RXD (Received Data) TXD (Transmit Data) DTR (Data Terminal Ready) Ground DSR (Data Set Ready) RTS (Request To Send)
  • Page 27 21. JP2: (2.0mm Pitch 2x3 Pin Header),COM2 jumper setting, pin 1~6 are used to select signal out of pin 9 of COM2 port. JP2 Pin# Function Close 1-2 COM2 Pin9 RI (Ring Indicator) (default) Close 3-4 COM2 Pin9=+5V (option) Close 5-6 COM2 Pin9=+12V (option) 22.
  • Page 28 Close 1-2 COM6 Pin9 RI (Ring Indicator) (default) Close 3-4 COM6 Pin9=+5V (option) Close 5-6 COM6 Pin9=+12V (option) 25. COM6 (2.0mm Pitch 2x5 Pin Header), COM6 Port, standard RS232 ports are provided. They can be used directly via COM cable connection. COM6 port is controlled by pins No.1~6 of JP3,select output Signal 5V or 12v, For details, please refer to description of JP3.
  • Page 29 or amplifier, MIC is the port for microphone input audio. 28. AUDIO1: (2.0mm Pitch 2X6 Pin Header), Front Audio, An onboard Realtek ALC662 codec is used to provide high-quality audio I/O ports. Line Out can be connected to a headphone or amplifier.
  • Page 30 MODEL PC1E16X / PCIE1X ASB-M8771T ASB-M8771B Bottom 35. M-PCIE1 (Socket 52Pin),mini PCIe socket, it is located at the top, it supports mini PCIe devices with USB2.0,SIM,SMBUS and PCIe signal. MPCIe card size 30x30mm or 30 x 50.95mm. 36. H2/H1(option): MPCIE1 SCREW HOLES, H1 for mini PCIE card (30mmx30mm) assemble. H2 for mini PCIE card (30mmx50.95mm) assemble.
  • Page 31 39. MIO2: (DF13-40P Connector),Front panel connector. Function Signal Name Pin# Pin# Signal Name Function P_LED+ PWR-LED HDD_LED H_LED+ P_LED- Ground USB01_OC- PSON+ MIO_PSON- USB23_OC- PSON- Ground RESET- RESET BUZZER- BUZZER- BUZZER+ BUZZER GPIO_OUT1 PCH_GPIO68 PCH_GPIO12 GPIO_IN1 GPIO_OUT2 PCH_GPIO69 PCH_GPIO15 GPIO_IN2 GPIO_OUT3 PCH_GPIO70 PCH_GPIO58...
  • Page 32 Pin11~Pin18: GPIO IN/GPIO OUT, General-purpose input/output port, it provides a group of self-programming interfaces to customers for flexible use. Pin19~Pin24: PS2 KB/MS, PS/2 keyboard and mouse port, the port can be connected to PS/2 keyboard and mouse via a dedicated cable for direct used. Pin25~40: USB0/USB1/USB2/USB3, Front USB connector, it provides 4 USB ports via a dedicated USB cable, speed up to 480Mb/s.
  • Page 33 42. SATA1/SATA2/SATA3/SATA4: (SATA 7P), SATA Connectors, Four SATA connectors are provided,SATA3 and SATA4 transfer speed up to 3.0Gb/s, SATA1 and SATA2 transfer speed up to 6.0Gb/s. RAID controller supporting RAID 0/1/5/10. Position Function Color SATA1 SATA3.0 White or Blue SATA2 SATA3.0 White or Blue SATA3...
  • Page 34 50. TB-525E161: TB-525E161 connect to ASB-M8771T PCIE_16X connector, PCIE_16X is located at the top,It provides one PCIE X16 slot. 51. TB-525P1: TB-525P1 connect to ASB-M8771T PCIE1X connector, PCIE1X is located at the top,It provides one PCI slot.

  • Page 35: Chapter 3 Bios Setup

    Chapter 3 BIOS Setup 3.1 Operations after POST Screen After CMOS discharge or BIOS flashing operation,.Press [Delete] key to enter CMOS Setup. Version 2.15.1227. Copyright (C) 2012 American Megatrends, Inc. ( L8771V07 ) Press 〈DEL〉or〈F2〉to enter setup CMOS Checksum fail。Press ＜DEL＞ to enter setup。 After optimizing and exiting CMOS Setup, the POST screen displayed for the first time is as follows and includes basic information on BIOS, CPU, memory, and storage devices.

  • Page 36: Main Settings

    Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit System Language [English] Choose the system Default language System Date [Tue 01/01/2009] System Time [00:00:08] Access Level Administrator →←: Select Screen BIOS Information ↑↓...

  • Page 37: Advanced Settings

    3.4 Advanced Settings Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit PCI,PCI-X and PCI ►PCI Subsystem Settings Express Setting. ►ACPI Settings ►CPU Configuration ►SATA Configuration ►Thermal Configuration ►Intel(R) Rapid Start Technology ►PCH-FW Configuration ►Intel(R) Anti-Theft Technology Configuration ►AMT Configuration...
  • Page 38 [Disabled] [Enabled] PERR# Generation: [Disabled] [Enabled] SERR# Generation: [Disabled] [Enabled] PCI Express Device Settings： 3.4.2 ACPI Settings Enable ACPI Auto Configuration: [Disabled] [Enabled] Enable Hibernation: [Enabled] [Disabled] ACPI Sleep State: [Both S1 and S3 avai…] [Suspend Disabled] [S1 only (CPU Stop clock)] [S3 only (Suspend to RAM ] Lock Legacy Resources: [Disabled]...
  • Page 39 Hyper-threaading [Enabled] [Disabled] Active Processor Cores [All] Limit CPUID Maximum: [Disabled] [Enabled] Execute Disable Bit: [Enabled] [Disabled] Intel Virtualization Technology [Enabled] [Disabled] Hardware Prefetcher [Enabled] [Disabled] Adjacent Cache Line Prefetch [Enabled] [Disabled] 3.4.4 SATA Configuration SATA Controller(S): [Enabled] [Disabled] SATA Mode Selection: [IDE] [AHCI] [RAID]...
  • Page 40 IDE legacy / Native Mode Selection [Native] [Legacy] Serial ATA Port 0 Empty Software Preserve Unknown Serial ATA Port 1 Empty Software Preserve Unknown Serial ATA Port 2 Empty Software Preserve Unknown Serial ATA Port 3 Empty Software Preserve Unknown Serial ATA Port 4 Empty Software Preserve...
  • Page 41 1 keyboard, 2 Hubs Legacy USB Support: [Enabled] [Disabled] EHCI Hand-off: [Disabled] [Enabled] Port 60/64 Emulation [Enabled] [Disabled] USB hardware delays and time-outs: USB transfer time-out: [20 sec] [10 sec] [5 sec] [1 sec] Device reset time-out: [20 sec] [10 sec] [30 sec] [40 sec] Device power-up delay...
  • Page 42 +12V : +12.160 V +3.3V +3.296 V +1.5V +1.520 V AVCC +5.158 V 3.4.13 Platform Misc Configuration 3.4.14 Intel(R) Smart Connect Technology 3.4.15 Serial Port Console Redirection 3.4.16 Intel RC Drivers Version Detail 3.4.17 CPU PPM Configuration CPU PPM Configuration EIST [Enabled] [Disabled]...

  • Page 43: Chipset Settings

    3.5 Chipset Settings Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit System Agent (SA) ►System Agent (SA) Configuration Parameters ►PCH-IO Configuration →←: Select Screen ↑↓ : Select Item Enter: Select +/- : Charge Opt.
  • Page 44 [Enabled] GTT Size [2MB] [1MB] Aperture Size [256MB] [128MB] [512MB] DVMT Pre-allocated [64MB] [32MB] [96MB] [128MB] [160MB] [192MB] [224MB] [256MB] [288MB] [320MB] [352MB] [384MB] [416MB] [448MB] [480MB] [512MB] [1024MB] Dvmt Total Gfx Mem [256MB] [128MB] [MAX] GFX Low Power Mode [Enabled] [Disabled] Primary IGFX Boot Display...
  • Page 45 [800 X 600 24bit 1ch] [1024 X 768 18bit 1ch] [1024 X 768 24bit 1ch] [1280 X 800 18bit 1ch] [1366 X 768 18bit 1ch] [1440 X 900 24bit 2ch] [1600 X 900 24bit 2ch] [1600 X 1200 24bit 2ch] [1680 X 1050 24bit 2ch] [16800 X 1050 24bit 2ch] [1920 X 1080 24bit 2ch]...
  • Page 46 PEG0 [Not Present] PEG0 – Gen X [Auto] [Gen1] [Gen2] [Gen3] PEG ASPM [Auto] [Disabled] [Auto] [ASPM LOs] [ASPM L1] [ASPM LOsL1] De-emphasis Control [-3.5 dB] [-6 dB] ►Memory Configuration Memory Version 1.6.6.0 Memory Frequency 1067 Mhz Total Memory 2048 (DDR3) DIMM#0 2048...
  • Page 47 [Enabled] Wark on LAN [Enabled] [Disabled] Board Capability [SUS_PWR_DN_ACK] [Deepsx] SLP_S4 Assertion Width [4-5 Seconds] [1-2 Seconds] [2-3 Seconds] [3-4 Seconds] Restore AC Power Loss [Power off] Set NAND Management Override [Enabled] [Disabled] ►PCI Express Configuration PCI Express Clock Gating [Enabled] [Disabled] DMI Link ASPM Control...

  • Page 48: Boot Settings

    3.6 Boot Settings Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Boot Configuration Number of seconds to Setup Prompt Timeout Wait for setup Bootup Numlock State [On] Activation key. 65535(0xFFFF)means Quiet Boot [Disabled] Indef inite waiting.

  • Page 49: Security Settings

    Option ROM Messages [Force BIOS] [Keep Current] Interrupt 19 Capture [Immediate] [Postponed] Boot Option Priorities ►CSM parameters 3.7 Security Settings Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Password Description Set Administrator Password If ONLY the Administrator’s password is set,...

  • Page 50: Save & Exit Settings

    A confirmation message will be shown on the screen as to whether the password will be disabled. You will have direct access to BIOS setup without typing any password after system reboot once the password is disabled. Once the password feature is used, you will be requested to type the password each time you enter BIOS setup.
  • Page 51 [No] Save Changes and Reset Save & reset Save Configuration and reset? [Yes] [No] Discard Changes and Reset Reset Without Saving Reset without saving? [Yes] [No] Save Changes Save Setup Values Save configuration? [Yes] [No] Discard Changes Load Previous Values Load Previous Values? [Yes] [No] Restore Defaults...

  • Page 52: Chapter 4 Installation Of Drivers

    Chapter 4 Installation of Drivers Important Note: After installing your Windows operating system (Windows XP), you must install first the Intel Chipset Software Installation Utility before proceeding with the installation of drivers. APC-3X19 User Manual...
  • Page 53 4.1 Intel Chipset Driver To install the Intel chipset driver, please follow the steps below. Step 1. Access Industrial Panel PC. Select Intel QM77&HM77 Chipset Driver. Step 2. Click Next to setup program. APC-3X19 User Manual...
  • Page 54 Step 3. Read the license agreement. Click Yes to accept the terms of the license agreement. Step 4. Click Next to continue. APC-3X19 User Manual...
  • Page 55 Step 5. Click Next. Step 6. Select Yes, I want to restart this computer now. Click Finish then remove any installation media from the drives. APC-3X19 User Manual...

  • Page 56: Intel (R) Vga Chipset Driver

    4.2 Intel (R) VGA Chipset Driver To install the VGA drivers, follow the steps below to proceed with the installation. Step 1. Select Intel(R) VGA Chipset Driver. Step 2. Click Next to continue setup program. APC-3X19 User Manual...
  • Page 57 Step 3. Check Automatically run WinSAT and enable the Windows Aero desktop theme (if supported.) Click Next to continue setup program. Step 4. Read the license agreement. Click Yes to accept the license agreement. APC-3X19 User Manual...
  • Page 58 Step 5. Click Next. Step 6. Click Next. APC-3X19 User Manual...
  • Page 59 Step 7. Select Yes, I want to restart this computer now. Click Finish. APC-3X19 User Manual...

  • Page 60: Intel(R) Network Adapter Driver

    4.3 Intel(R) Network Adapter Driver Step 1. Select Intel(R) Network Adapter. Step 2. Click Next to continue. APC-3X19 User Manual...
  • Page 61 Step 3. Read the license agreement. Select I accept the terms in the license agreement then click Next to continue. Step 4. Select Drivers, Intel(R) PROSet for Windows* Device Manager, Advanced Network Services. Click Next to continue. APC-3X19 User Manual...
  • Page 62 Step 5. Click Install to begin the installation. Step 6. Click Finish to compete the installation. APC-3X19 User Manual...

  • Page 63: Realtek Hd Audio Driver Installation

    4.4 Realtek HD Audio Driver Installation To install the Realtek High Definition (HD) Audio driver, please follow the steps below. Step 1. Select Realtek ALC662 HD Audio Codec Driver from the list. Step 2. Wait for extracting the files then click Next to continue. APC-3X19 User Manual...
  • Page 64 Step 3. Select Yes, I want to restart my computer now. then click Finish. APC-3X19 User Manual...

  • Page 65: Inter(R) Usb 3.0 Driver

    4.5 Intel(R) USB 3.0 Driver Step 1. Select Intel(R) USB 3.0 Driver Step 2. Click Next to continue. APC-3X19 User Manual...
  • Page 66 Step 3. Read the license agreement. Click Yes to continue. Step 4. Click Next to continue. APC-3X19 User Manual...
  • Page 67 Step 5. Click Next to continue. Step 6. Select Yes, I want to restart this computer now. Click Finish. APC-3X19 User Manual...

  • Page 68: Intel(R) Amt Driver

    4.6 Intel(R) AMT Driver Step 1. Select Intel(R) AMT Driver Step 2. Click Next to continue. APC-3X19 User Manual...
  • Page 69 Step 3. Read the license agreement. Click Yes to continue. Step 4. Click Next to continue. APC-3X19 User Manual...
  • Page 70 Step 6. Click Finish to compete the setup. APC-3X19 User Manual...

  • Page 71: Chapter 5 Touch Screen Installation

    Chapter 5 Touch Screen Installation This chapter describes how to install drivers and other software that will allow your PenMount 6000 Controller Board to work with different operating systems. NOTE: PenMount USB drivers support up to 15 USB controllers. 5.1 Introduction to Touch Screen Controller Board PenMount 6300 USB control board is a touch screen control board designed for USB interface and specific for 4, 5, 8-wire touch screens.

  • Page 72: Installing Software

    RS232 interface, please plugged in before the machine is turned on. When the system first detects the controller board, a screen appears that shows “Unknown Device”. Do not use this hardware wizard. Press Cancel. Step 2. Insert the Aplex product CD install setup.exe. the screen below would appear. See touch panel driver APC-3X19 User Manual...
  • Page 73 Step 3. Click Next to continue. Step 4. Read the license Agreement. Click I agree to agree the license agreement. APC-3X19 User Manual...
  • Page 74 Step 5. Choose the folder in which to install PenMount Windows Universal Driver. Click Install to start the installation. Step 6. Wait for installation. Then click Next to continue. APC-3X19 User Manual...
  • Page 75 Step 7. Click Continue Anyway to continue. Step 8 Click Finish to compete installation. APC-3X19 User Manual...

  • Page 76: Software Functions

    5.2.2 Software Functions Upon rebooting, the computer automatically finds the new 6000 controller board. The touch screen is connected but not calibrated. Follow the procedures below to carry out calibration. 1. After installation, click the PenMount Monitor icon “PM” in the menu bar. 2.
  • Page 77 Advanced Calibration Advanced Calibration uses 4, 9, 16 or 25 points to effectively calibrate touch panel linearity of aged touch screens. Click this button and touch the red squares in sequence with a stylus. To skip, press ESC’. Command Calibration Command call calibration function.
  • Page 78 Step 2. Click Standard Calibration to start calibration procedure NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the step as below: APC-3X19 User Manual...
  • Page 79 Step 3. Come back to PenMount Control Panel and select Tools then Click Advanced Calibration. Step 4. Select Device to calibrate, then you can start to do “Advanced Calibration”. NOTE: Recommend to use a stylus during Advanced Calibration for greater accuracy. APC-3X19 User Manual...
  • Page 80 Setting APC-3X19 User Manual...
  • Page 81 About This panel displays information about the PenMount controller and driver version. APC-3X19 User Manual...
  • Page 82 Multiple Monitors Multiple Monitors supports two to six touchscreen displays for one system. PenMount drivers for Windows 2000, XP 32/64bit, and 2003 support Multiple Monitors. This function supports from two to six touchscreen displays for one system. Each monitor requires its own PenMount touchscreen control board, either installed inside the displayor in a central unit.
  • Page 83 Step 2. When the mapping screen message appears, click OK. APC-3X19 User Manual...
  • Page 84 Step 3. Touch each screen as it displays Please touch this monitor. Press ‘S’ to skip Following this sequence and touching each screen is called mapping the touch screens. Step 4. After the setting procedure is finished, maybe you need to calibrate for each panel and controller.
  • Page 85 About You can see how many devices of PenMount controller that are plugged to your system PenMount Monitor Menu Icon The PenMount monitor icon (PM) appears in the menu bar of Windows 2000/XP system when you turn on PenMount Monitor in PenMount Utilities. APC-3X19 User Manual...
  • Page 86 PenMount Monitor has the following function PenMount Rotating Functions The PenMount driver for Windows 2000/XP supports several display rotating software packages. Windows Me/2000/XP support display rotating software packages such as: • Portrait’s Pivot Screen Rotation Software • ATI Display Driver Rotate Function •...
  • Page 87 NOTE: The Rotate function is disabled if you use Monitor Mapping APC-3X19 User Manual...
