N o t e
The mounting brackets have multiple mounting holes and can be rotated,
allowing for a variety of mounting options.
2.

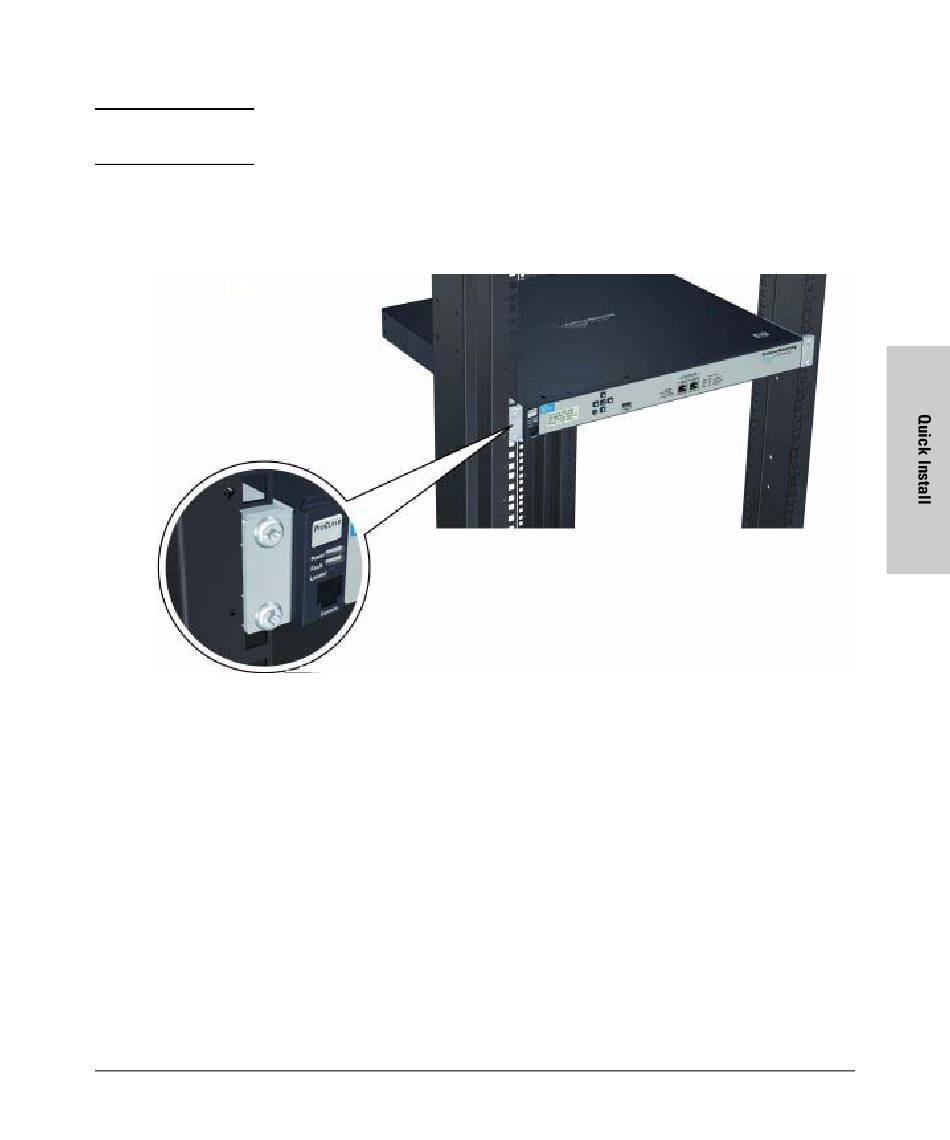

Figure 4. ProCurve NAC 800 rack mount example
Hold the unit with attached brackets up to the rack and move it vertically
until rack holes line up with the bracket holes, then insert and tighten
the four number 12-24 screws holding the brackets to the rack.
Quick Install
Installing the Appliance
2-7
