Installing the Appliance

2. Mount the Unit

After determining the configuration and preparing the site, you are ready to
mount the ProCurve NAC 800 appliance in a stable location. The ProCurve
NAC 800 unit can be mounted in a rack or cabinet
Wa r n i n g
For safe operation, please read the mounting precautions on
page

Rack Mounting the ProCurve NAC 800

The ProCurve NAC 800 appliance is. designed to be mounted in any EIA-
standard 19-inch telco rack or communication equipment cabinet.
E q u i p m e n t
The 12-24 screws supplied with the unit are the correct threading for standard
C a b i n e t EIA/TIA open 19-inch racks. If you are installing the unit in an equipment
cabinet such as a server cabinet, use the clips and screws that came with the
N o t e
cabinet in place of the 12-24 screws that are supplied with the unit.
Complete step 1, and plan which four holes you will be using in the cabinet
and install all four clips. Then proceed to step 2.
1.

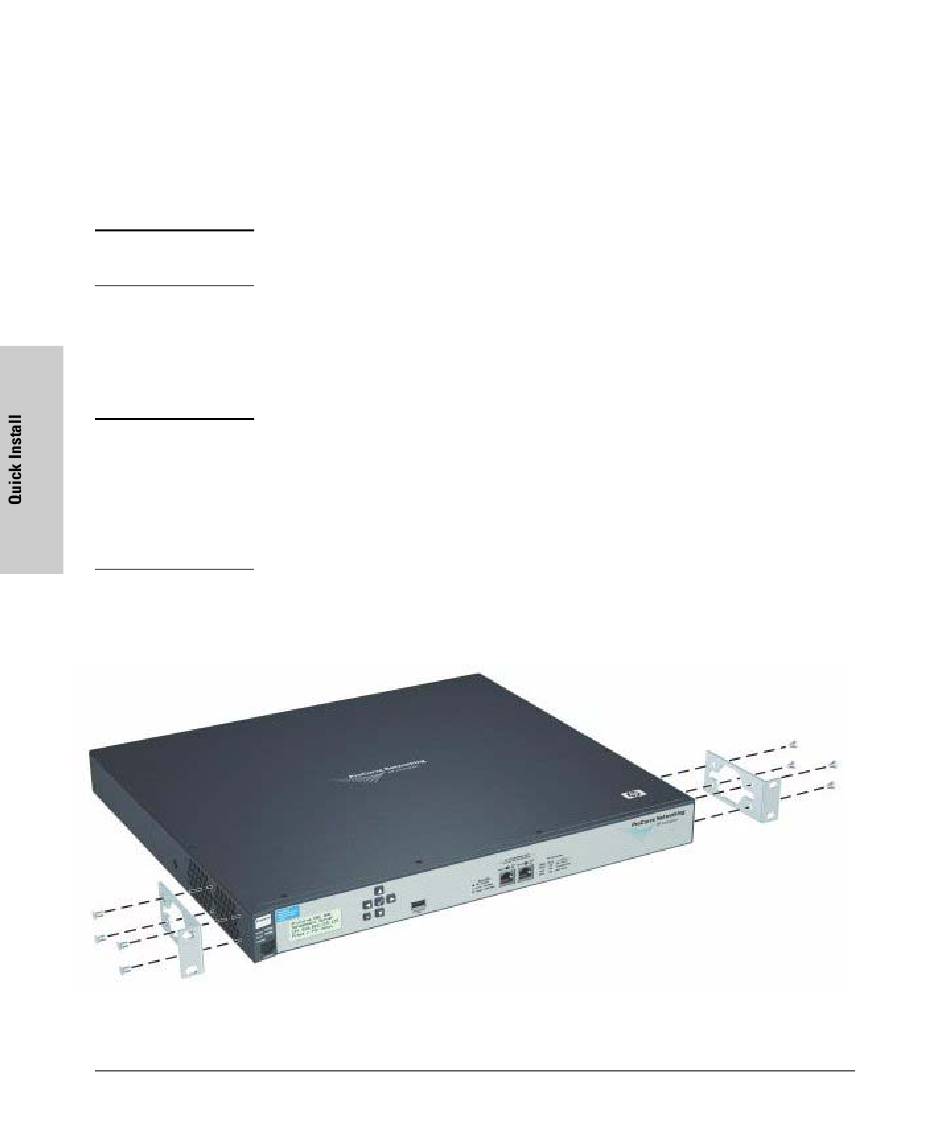

Figure 3. ProCurve NAC 800 with mounting brackets
2-6
2-3, before mounting a switch.
Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the ProCurve NAC unit with the included 8-mm M4 screws.
