Pulsar S54-B Manual

5-port switch for 4 ip cameras with enclosure and battery backup
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Uninterruptible power supply of 4 IP cameras (48VDC)
5 10/100 Mb/s ports
4 PoE ports (data transfer and power supply)
15,4W for each PoE port, supports devices complaint
with the IEEE802.3af standard
Supports auto-learning and auto-aging of MAC
addresses (1K size)
CONTENTS;
2.1 Requirements
S54-B
v1.0
S54-B 5-port switch for 4 IP cameras
with enclosure and battery backup
Edition: 1 from 1.05.2016
Supercedes the edition: ---------
Features
:
Metal enclosure - color white RAL 9003
with battery space for a 12V/7Ah battery
warranty - 2 year from the production date

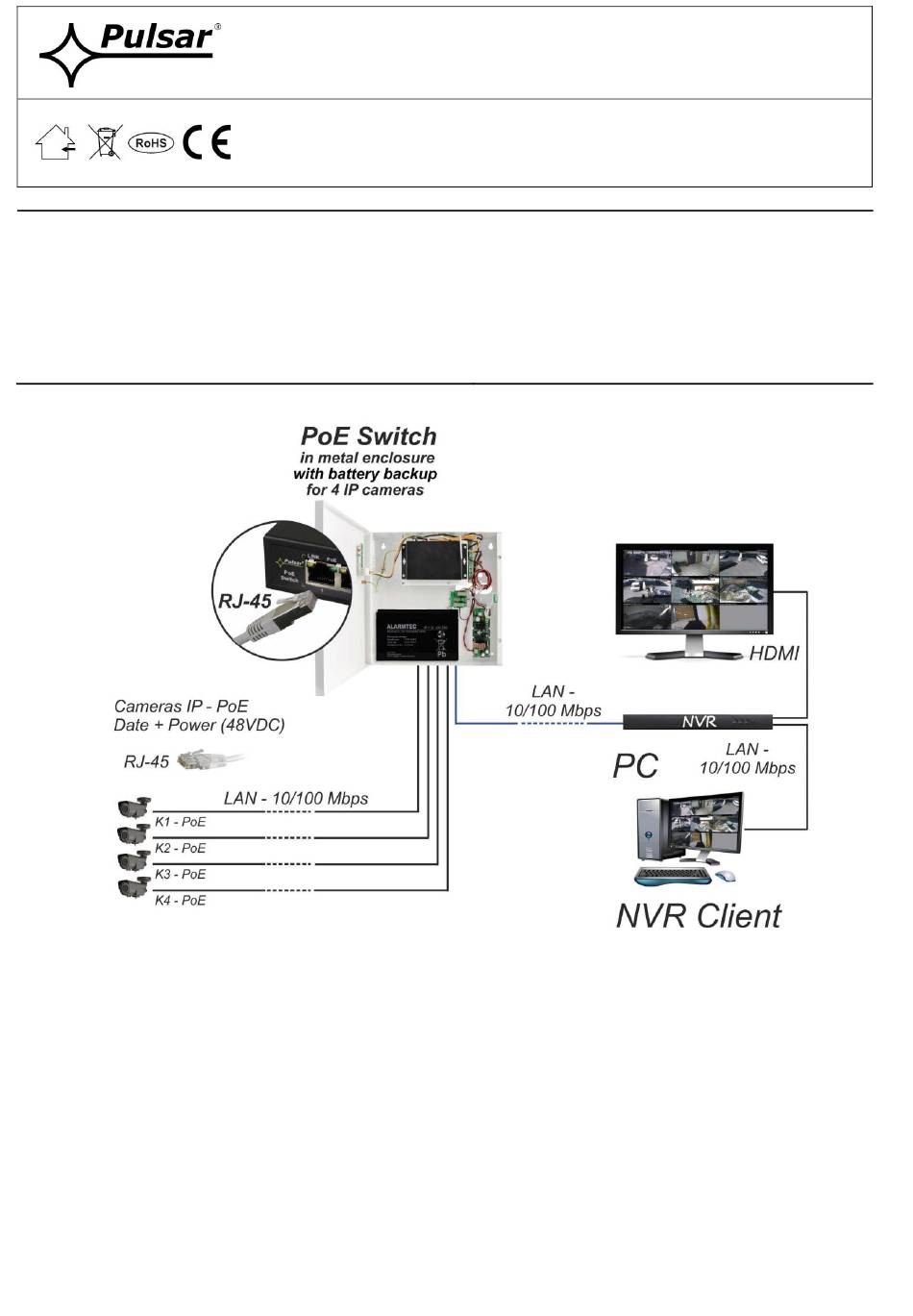

Example of use .
1
PL
EN**

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S54-B and is the answer not in the manual?

Questions and answers

Related Manuals for Pulsar S54-B

Summary of Contents for Pulsar S54-B

  • Page 1: Table Of Contents

    S54-B v1.0 S54-B 5-port switch for 4 IP cameras with enclosure and battery backup Edition: 1 from 1.05.2016 Supercedes the edition: --------- EN** Features   Metal enclosure – color white RAL 9003 Uninterruptible power supply of 4 IP cameras (48VDC) ...

  • Page 2: Technical Description

    (front panel). The S54-B is fitted with two LEDs on the front panel (red LED – indicates 230VAC power supply of the PSU, green LED indicates the presence of DC voltage).

  • Page 3: Description Of Components And Connectors

    1.3 Description of components and connectors. Fig. 2 The enclosure view. Table 1. ( See Fig . 2) Component No. Description (Fig. 2) Switch PoE Switch mode buffer power supply unit DC/DC48125 converter Output filter Tamper – micro switch (terminals) of tamper protection (NC) Battery space for a 12V/7Ah battery Power supply connector of the PSU –...

  • Page 4: Technical Parameters

    Table 2. (See Fig.3) Component No Description (Fig. 3) 4 x PoE port (1÷4) 1 x UPLINK port 48VDC power supply socket 1.4 Technical parameters - parameters of the switch (tab.3) - electrical parameters (tab.4) - mechanical parameters (tab.5) - operation safety (tab.6) - operating parameters (tab.7) Table 3.

  • Page 5: Installation

    Table 6. Operation safety Protection class PN-EN 609501:2007 I (first) Protection grade PN-EN 60529: 2002 (U) IP20 Electrical strength of insulation: - between input and output circuits of the PSU (I/P-O/P) 3000 V/AC min. - between input circuit and PE protection circuit (I/P-FG) 1500 V/AC min.

  • Page 6: Indication Of The Device Operation

    3. Indication of the device operation. 3.1 LED indication of operating status. The PSU is equipped with two diodes on the front panel: RED LED:  on – the PSU is supplied with 230V AC off – no 230V AC supply ...

  • Page 7: Operation And Use

    Installation example of the S54-B battery (Battery not included) 4. Operation and use. 4.1 Overload or short circuit of the PSU output (SCP on). In case of overload, the output voltage is automatically shut off, and so is the LED indicator. The restoration of the voltage takes place immediately after the failure (overload) is over.
  • Page 8 GENERAL WARRANTY CONDITIONS 1. Pulsar (manufacturer) grants a two-year quality warranty for the equipment, starting from the production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the malfunction is due to the manufacturer. It includes manufacturing or material defects, provided that such defects have been reported within the warranty period (point.1).
