Smart ZB Thermostat 16 A
Device User Guide
Commissioning instructions for the ELKO Smart system, devices and app.
02/2023
www.elko.no

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart ZB Thermostat 16 A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elko Smart ZB Thermostat 16 A

Summary of Contents for Elko Smart ZB Thermostat 16 A

  • Page 1 Smart ZB Thermostat 16 A Device User Guide Commissioning instructions for the ELKO Smart system, devices and app. 02/2023 www.elko.no...
  • Page 2 Legal Information The ELKO brand and any trademarks of ELKO AS and its subsidiaries referred to in this guide are the property of ELKO AS or its subsidiaries. All other brands may be trademarks of their respective owners. This guide and its content are protected under applicable copyright laws and furnished for informational use only.

  • Page 3: Table Of Contents

    Configuring the device ................17 Changing the device icon ..............17 Renaming the device ................18 Changing the device location ...............18 Managing device settings using ELKO Smart app........19 Using the device..................25 Individual thermostat visibility on home page.........27 Setting the room temperature manually ..........27 Setting the room temperature using app ..........28...

  • Page 4: Safety Information

    Safety information Safety information Important information Read these instructions carefully and look at the equipment to become familiar with the device before trying to install, operate, service, or maintain it. The following special messages may appear throughout this manual or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.

  • Page 5: Smart Zb Thermostat 16 A

    Smart ZB Thermostat 16 A Smart ZB Thermostat 16 A EKO07254 EKO07257 EKO07258 EKO07259 EKO30465 For your safety DANGER HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH Safe electrical installation must be carried out only by skilled professionals. Skilled professionals must prove profound knowledge in the following areas: •...

  • Page 6: About The Device

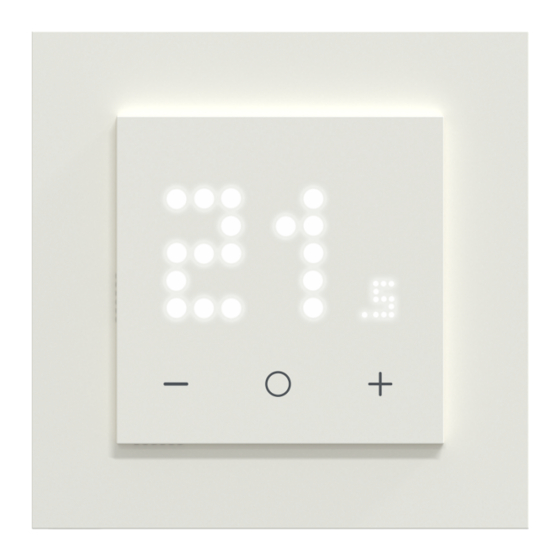

    Smart ZB Thermostat 16 A About the device The Smart ZB Thermostat 16 A (hereinafter referred to as cFMT / thermostat) is mainly used for electrical heating applications like electrical underfloor heating and electrical radiators / heating panels. Thermostat features: •...

  • Page 7: Setting And Operating The Device Manually

    Smart ZB Thermostat 16 A Setting and operating the device manually As a standalone thermostat, you can set the following settings and operating parameters. Floor Sensor guard Boost Standalone calibration Preset type temp. mode schedule setting selection setting � �...
  • Page 8 Smart ZB Thermostat 16 A surfaces, such as a concrete floor. A short cycle time is more appropriate for faster heating surfaces, such as an electric panel heater. Initial preset configuration (by default) When the thermostat is first powered on or immediately after a factory reset, by default “P5”...
  • Page 9 Smart ZB Thermostat 16 A Confirming the preset Select the preset that meets your needs using the +/- buttons, and then hold the O for > 1 s to confirm the selection. For example, P1 is confirmed. > 1 s •...

  • Page 10: Manual Sensor Settings

    Smart ZB Thermostat 16 A Manual sensor settings A thermostat with a preset value of P6 to P8 can be connected with an external floor sensor to increase the user's experience in regulating the temperature. NOTE: Once the preset is chosen, press O button for 1 second to confirm.
  • Page 11 After setting temperature calibration, you must set the maximum guard temperature. It is upper limit of the floor sensor. Minimum guard temperature can only be set through ELKO Smart app. To set maximum guard temperature: 1. Press + or – touch button on the device to set the maximum limit.

  • Page 12: Setting Boost Mode Manually

    Smart ZB Thermostat 16 A Setting boost mode manually You can enable and disable boost mode manually. When enabled the temperature increases by 2° C for temperature control modes (P1 to P8) and by +2 for regulator mode (P9) over the setpoint.

  • Page 13: Turning On/Off The Device Manually

    Smart ZB Thermostat 16 A To disable boost mode: 1. Press O button once. +1 flashes on thermostat matrix. 2. Press + button for thermostat to display – – (boost cancel). 3. Confirm by pressing O button. Boost mode is cancelled.

  • Page 14: Pairing The Device

    Smart ZB Thermostat 16 A Pairing the device Using the ELKO Smart app, pair your device with the ELKO SmartHub to access and control the device. You can either add the device manually or do an auto-scan to pair it.
  • Page 15 Smart ZB Thermostat 16 A 6. Long press the O button until Jn is displayed and then release the button to initiate joining. NOTE: If you have already paired your thermostat, and want to change the preset mode during the current pairing process, you will need to perform a factory reset.

  • Page 16: Pairing Device With Auto Scan

    NOTE: If you have multiple hubs, do Step 4 or proceed to Step 5. 4. Tap Select hub and select the ELKO SmartHUB from the slide-up menu. 5. Long press the O button until 'Jn' is displayed and then release the button to initiate joining.

  • Page 17: Configuring The Device

    Configuring the device Changing the device icon You can change the device icon using the ELKO Smart app. 1. On the Home page, select the device for which you wish to change the icon. 2. At the top-right corner of the screen, tap 3.

  • Page 18: Renaming The Device

    Name Save Changing the device location You can change the device location using the ELKO Smart app. 1. On the Home page, select the device for which you wish to change the location. 2. At the top-right corner of the screen, tap 3.

  • Page 19: Managing Device Settings Using Elko Smart App

    To access the settings: 1. On the Home page, tap All devices > Thermostat. 2. On the device control panel page, tap Settings. All setting option in the ELKO Smart app is based on the preset value set during paring process. Max/...
  • Page 20 Smart ZB Thermostat 16 A Below are the setting interface based on preset: P1 and P2 Settings Settings Settings Sensors Settings Sensors Settings Sensors Settings Temperature Detection Air Temperature Temperature Detection Temperature Detection Air Temperature Air Temperature Temperature Calibration -9.0 C Temperature Calibration +0.1 C...
  • Page 21 Smart ZB Thermostat 16 A Sensors settings Settings Sensors Settings Temperature Detection Air Temperature Temperature Calibration -9.0 C Temperature Detection Floor Temperature Floor Sensor Type -- K Temperature Calibration 0.0 C Max Guard Temperature 30 C Min Guard Temperature 10 C...
  • Page 22 Smart ZB Thermostat 16 A Guard temperature To set the maximum and minimum guard temperature: • On setting page, tap Max Guard Temperature (D) to set upper temperature limit of the floor sensor and then tap Save. NOTE: The temperature ranges form 5°C to 19°C and maximum guard temperature should be higher than minimum guard temperature •...
  • Page 23 Smart ZB Thermostat 16 A Rated power settings The thermostat does not include any hardware to monitor the power output of the heating load. To provide power monitoring functionality, the rated power value (W) of the connected heating load needs to be entered in the app. You can view the power consumption (W) on the app.
  • Page 24 Active Duration, which ranges from 1 minute to 60 minutes. NOTE: Default screen active duration is 60 s. NOTE: In the event that the thermostat is removed from the ELKO system, the brightness setting will be retain. DUG_ZB Thermostat 16 A_ELKO-00...

  • Page 25: Using The Device

    Smart ZB Thermostat 16 A Using the device The control panel of the thermostat(s) allows you to view and adjust the temperature and access various settings. When a thermostat is commissioned and assigned to a room, an individual group called Thermostat is automatically created in the home page.
  • Page 26 Smart ZB Thermostat 16 A Individual thermostat control panel On the individual thermostat control panel page, you can see the following: NOTE: This control panel will not have the slider bar as you cannot control the temperature of the thermostats individually. To adjust the setpoint, check the thermostat control panel.

  • Page 27: Individual Thermostat Visibility On Home Page

    Smart ZB Thermostat 16 A Individual thermostat visibility on home page The individual thermostats will not appear on the home page by default. Using the app, you can change the default settings to adjust the visibility according to your preferences.

  • Page 28: Setting The Room Temperature Using App

    Smart ZB Thermostat 16 A Setting the room temperature using app By using the ELKO Smart app, you can set the desired room temperature. To set the room temperature: NOTE: You can only adjust the room temperature through the control panel of the thermostat.

  • Page 29: Using The Boost Mode

    Smart ZB Thermostat 16 A Using the boost mode Using the boost mode, the setpoint is increased by 2 ºC from the current room temperature setpoint. To use the boost mode: 1. On the Home page, tap All devices > Thermostat.

  • Page 30: Checking The Device History

    NOTE: You can adjust the date, week, month, or year using “◄ ►” (E). Alternatively, navigate to Home > All devices >Smart ZB Thermostat 16 A > History to check the device history of the individual Thermostats.

  • Page 31: Creating A Schedule

    Smart ZB Thermostat 16 A Creating a schedule The heating system is fully controlled and triggered by your schedule. Once the schedule is set, your system will follow the active schedule. You can create or modify the schedules at any time.

  • Page 32: Creating A Moment

    Smart ZB Thermostat 16 A Creating a moment A Moment allows you to group multiple actions that are usually done together. Using the ELKO app, you can create moments based on your needs. To create a moment: 1. On the Home page, tap 2.
  • Page 33 Smart ZB Thermostat 16 A 6. Tap Run the device > Thermostat to select one or more functions to add in the moment: – Temperature Setpoint: Increase the thermostat's temperature according to your requirement (D). – Heating Boost: Increase the temperature by setting the boost duration (E).

  • Page 34: Creating An Automation

    Creating an automation An automation allows you to group multiple actions that are usually done together, triggered automatically or at scheduled times. By using the ELKO Smart app, you can create automations based on your needs. To create an automation: 1.
  • Page 35 Smart ZB Thermostat 16 A 5. Tap Add Condition to open the slide-up menu. 6. In the Add Condition menu, you can do either or all of the following options (C): – When weather changes - Select the various weather settings.
  • Page 36 Smart ZB Thermostat 16 A 9. In the Add task menu, you can do either or all of the following options (F): – Run the device - Select the devices that you want to be triggered. – Moment or Automation - Select the moment which you want to trigger or select the automation that you want to enable or disable.
  • Page 37 Smart ZB Thermostat 16 A 3. Tap Add Condition > When weather changes > Outdoor Temperature. 4. Select the outdoor temperature value (A), the condition (B) and tap Next. TIP: You can set the outdoor temperature value as 15 °C and the condition as <...

  • Page 38: Removing The Device From Elko System

    Removing the device from ELKO system You can remove a device from the device list using the ELKO Smart app. NOTE: You can only remove the device by accessing the individual thermostat control page. If it is not visible on the home page, you can enable it in the group thermostat.

  • Page 39: Resetting The Device

    Smart ZB Thermostat 16 A Resetting the device You can manually reset the thermostat to factory settings or soft reset. Soft reset Press and hold the O touch button > 20 s. The thermostat flashes “Sr”, indicating soft reset, and it is selected when the button is released.
  • Page 40 Smart ZB Thermostat 16 A Factory reset In reset selection, press and hold the O touch button until thermostat flashes “Fr”, indicating factory reset, and it is selected when the button is released. The ‘Fr’ will flash on the matrix display to confirm the factory reset and the...

  • Page 41: Led Indications

    Smart ZB Thermostat 16 A LED Indications Pairing the device Status User Interaction Description Pairing in progress The thermostat matrix display flashes "Jn" to indicate joining is initiated when the thermostat O touch button is pressed and held for > 3 s.
  • Page 42 Smart ZB Thermostat 16 A Setting a sensor type (Continued) Floor sensor calibration. The thermostat matrix display calibration value and LED flashes purple. Floor temperature maximum limit The thermostat matrix display maximum temperature limit and LED flashes red. Resetting the device...

  • Page 43: Troubleshooting

    The thermostat is no longer in signal • Move the ELKO Smart Hub closer to range of the Hub. the thermostat. Unable to join to the ELKO Smart Hub Poor signal between the ELKO Smart Hub • Rejoin the thermostat in the app. (blinking red LED) and thermostat.

  • Page 44: Technical Data

    Smart ZB Thermostat 16 A Technical Data Nominal voltage: AC 230 V ~, 50 Hz Maximum current rating Resistive load: max. 16 A, 3520 W Inductive load: max. 4 A Standby: max 0.5 W Connecting terminals: Screw terminals for max. 2.5 mm², 0.5 Nm...
  • Page 45 Trademarks This guide makes reference to system and brand names that are trademarks of their relevant owners. • Zigbee ® is a registered trademark of the Connectivity Standards Alliance. • Apple ® and App Store ® are brand names or registered trademarks of Apple Inc. •...
  • Page 46 ELKO AS Sandstuveien 68, 0680 Oslo Pb 6598 Etterstad, 0607 Oslo Norway +47 67 79 39 00 support@elko.no www.elko.no As standards, specifications, and design change from time to time, please ask for confirmation of the information given in this publication.
