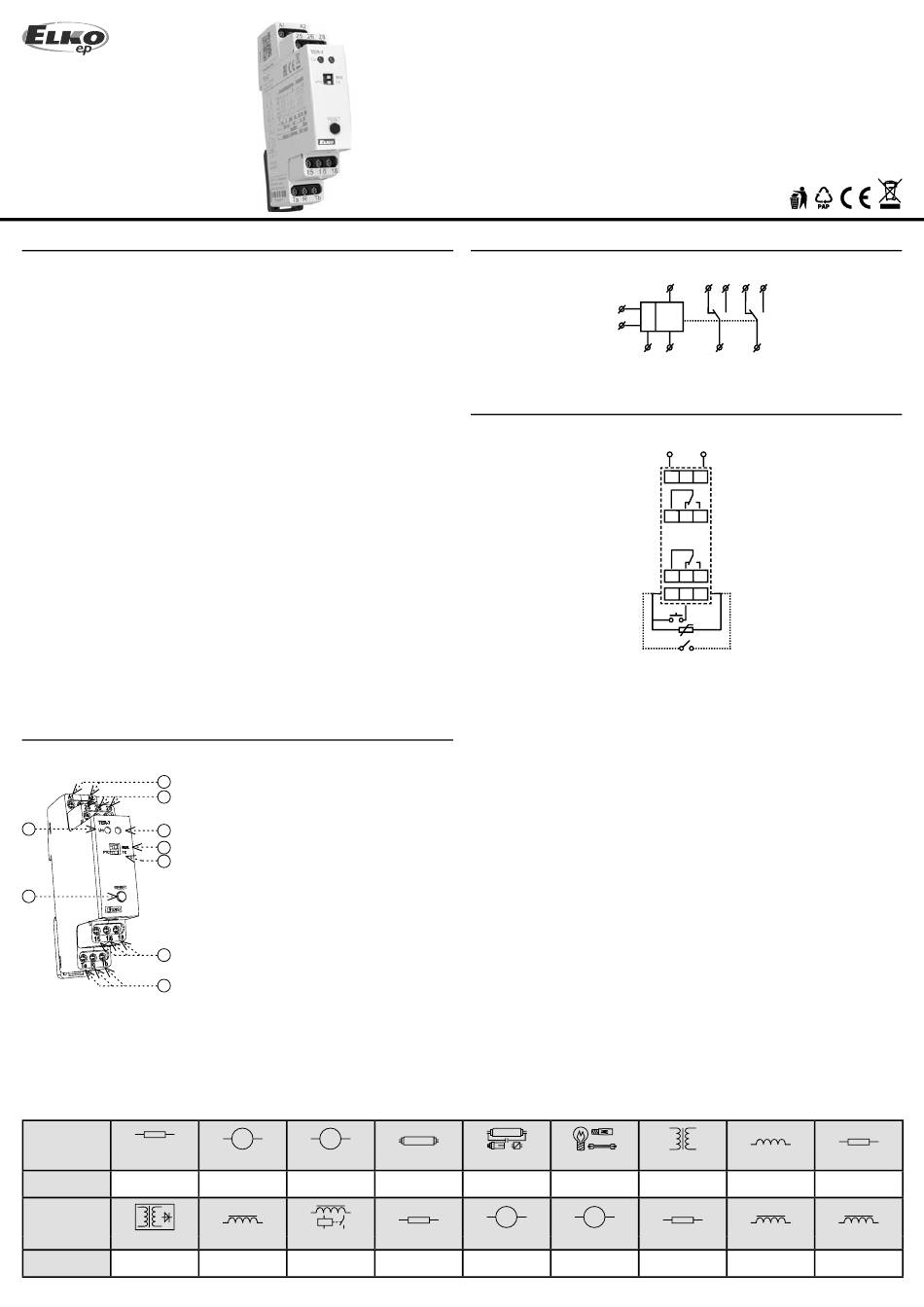

Characteristics
- monitors temperature of motor winding
- sensor PTC which is in-built in motor winding (or external sensor or bi-metal con-
tact) is used as monitoring element
- PTC sensor is used for sensing, It is in-built in motor winding by its manufacturer
- MEMORY function - active by DIP switch
- RESET of faulty state:
a) button on the front panel
b) by external contact (remote by two wires)
- function of short-circuit or sensor disconnection monitoring, red LED fl ashing in-
dicates faulty sensor
- output contact: 2x changeover 8 A / 250 V AC1
- red LED shines and indicates exceeded temperature
- terminals of sensor are galvanically separated, they can be shorted out by terminal
PE without damaging the device.
- multivoltage supply AC/DC 24-240 V, not galvanically separated
- 1-MODULE, DIN rail mounting
Warning!
In case of supply from the main, neutral wire must be connected to terminal A2.
Sensors could be in series in abide with conditions in technical specifi cation -
switching limits.
Description
1
2
4
3
5
6
7
2
8
cos φ ≥ 0.95
Type of load
AC1
Mat. contacts AgNi,
contact 8A
250V / 8A
Type of load
AC13
Mat. contacts AgNi,
contact 8A
x
1. Supply voltage terminals
2. Output contact
3. Faulty states indication
4. Supply indication
5. MEMORY function
6. TEST function
7. RESET button
8. Terminals for sensor and reset
M M
AC2 AC3 uncompensated
250V / 3A 250V / 2A 230V / 1.5A (345VA)
K
AC14 AC15
250V / 3A 250V / 3A
TER-7
Thermostat for monitoring temperature
of motor winding
Symbol
Connection
AC5a
AC5a
compensated
x
M
DC1 DC3
24V / 8A 24V / 3A
1 / 2
A1 16 18 26 28
Ta
PTC
Tb
R A2 15 25
Un
A1 A2
25 26 28
15 16 18
Ta R Tb
PTC
HAL.230V
AC5b AC6a
300W x 250V / 1A
M
DC5 DC12
24V / 2A 24V / 8A
EN
AC7b AC12
250V / 1A
DC13 DC14
24V / 2A x
