Inspire CG3 User Manual

Functional trainer
Hide thumbs

Advertisement

Table of Contents

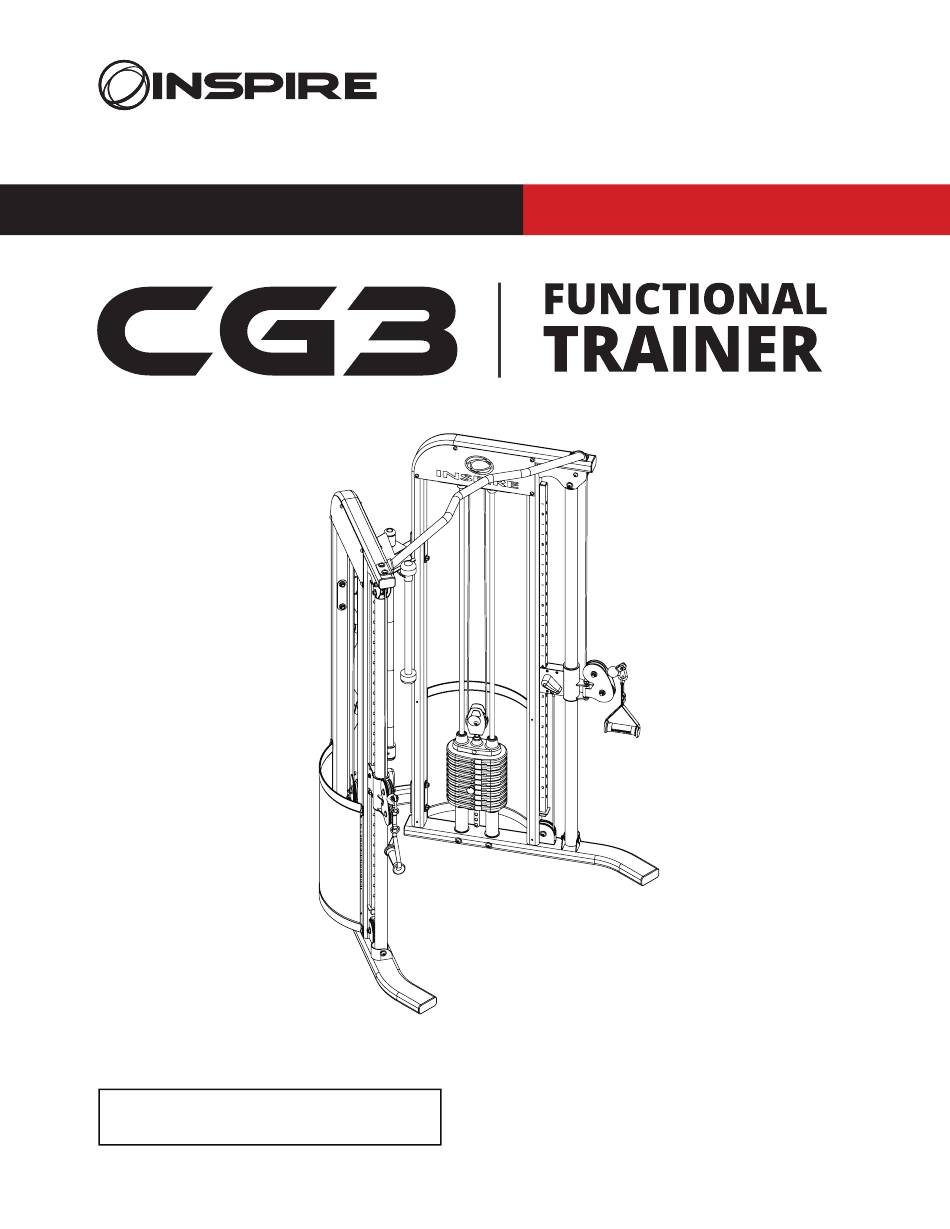

Model # CG3.1PK
USER MANUAL
USER MANUAL
START HERE
Record Serial Number Here
Health in Motion LLC
V12192022_CG3.1PK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG3 and is the answer not in the manual?

Questions and answers

Related Manuals for Inspire CG3

Summary of Contents for Inspire CG3

  • Page 1 Model # CG3.1PK USER MANUAL USER MANUAL START HERE Record Serial Number Here Health in Motion LLC V12192022_CG3.1PK...

  • Page 3: Product Warranty

    CONGRATULATIONS You’ve just taken the first step to a healthier and stronger body. This functional trainer by Inspire offers the key to unlocking your body’s potential. Regular strength training on a functional trainer has been shown to deliver a host of benefits including: increased muscle tone, decreased body fat, improved energy levels, a reduction in stress, and improved cardiac output.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS PRODUCT WARRANTY..................3 IMPORTANT SAFETY NOTICE PRECAUTIONS..........5 TOOLS REQUIRED FOR ASSEMBLY...............5 PARTS & HARDWARE LIST................6 EXPLODED DIAGRAM..................8 ASSEMBLY INSTRUCTIONS................9 CABLE ROUTING DIAGRAM.................14 DECAL PLACEMENT..................15 GENERAL MAINTENANCE INFORMATION..........16 MAINTENANCE SCHEDULE................16 Pg. 4 V12192022_CG3.1PK...

  • Page 5: Important Safety Notice Precautions

    IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: Keep children and pets away from the machine at all times.

  • Page 6: Parts & Hardware List

    PARTS & HARDWARE LIST Part Number Description Qty. GM692200009PZ Right Main Frame GM692200007PZ Left Main Frame GM692220002PZ04 Pull Up Bar Assembly GM692260001PZ01 Lower Cross Brace GM692300004PZ Upper Cross Brace GM692381001PT0105 Guide Rod Bracket GM692381007WX Guide Rod GM692500002PT0105 U-Shaped Pulley Bracket GM692-880-001 Pulley GM692500003PZ17...
  • Page 7 HARDWARE STEP1 STEP 1 part# 26(Ø10 14PCS) Part #26 (Ø10; 14 PCS) part# 40 (M10*25 4PCS) Part #40 (M10*25; 4 PCS) part# 26(Ø10 6PCS) Part #26 (Ø10; 6 PCS) part# 17 (Ø10 4PCS) Part #17 (Ø10; 4 PCS) STEP4 STEP 4 part# 29 (M10*70 8PCS) Part #29 (M10*70;...

  • Page 8: Exploded Diagram

    EXPLODED DIAGRAM Pg. 8 V12192022_CG3.1PK...

  • Page 9: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 Install the Lower Cross Brace (4) to the Right Main Frame (1) and the Left Main Frame (2) using four M10 x 70mm Allen Bolts (29), eight M10 Washers (26) and four M10 Locknuts (21). Do not fully tighten the hardware at this time. Install the Upper Cross Brace (5) to the Right Main Frame (1) and the Left Main Frame (2) using four M10 x 70mm Allen Bolts (29), eight M10 Washers (26) and four M10 Locknuts (21).
  • Page 10 STEP 2 Install the Guide Rods (7) into the holes of the bottom Right Main Frame (1) tubes, using two M10 x 80 Allen Bolt (41) and two M10 Washers (26) insert through the bottom tubes and holes in the guide rods, then into the internal threads of the tube.
  • Page 11 STEP 2 CONTINUED Pg. 11 V12192022_CG3.1PK...
  • Page 12 STEP 3 Slide two Shroud Mount Bars (34) into one of the Outer Fabric Shrouds (27). Install two Shroud Mount Bars (34) using four M8 x 15mm Allen Bolts (19) and M8 Washers (25) to the Right Main Frame (1). Repeat the steps above for the Left Main Frame (2).
  • Page 13 STEP 4 Attach the Adjustment Handle (36) to the Left Lock Switch on the Pulley Carriage and secure it with one M5 x 8 mm Allen Bolt (15). Repeat the same procedure to install the other side. Connect the 2-Ring D-Handle (24) to the Cable on the Right Main Frame (1) with a Spring Clip (39) . Repeat the same procedure to install the other side.

  • Page 14: Cable Routing Diagram

    CABLE ROUTING DIAGRAM Pg. 14 V12192022_CG3.1PK...

  • Page 15: Decal Placement

    DECAL PLACEMENT Pg. 15 V12192022_CG3.1PK...

  • Page 16: General Maintenance Information

    GENERAL MAINTENANCE INFORMATION • Periodically inspect the cables for splitting, cracking or fraying. Also, watch for bulging or flat areas in the cable. Pay particular attention to the cable ends. • Immediately replace cables at the first signs of damage or wear. Never use equipment with damaged or worn cables. •...
