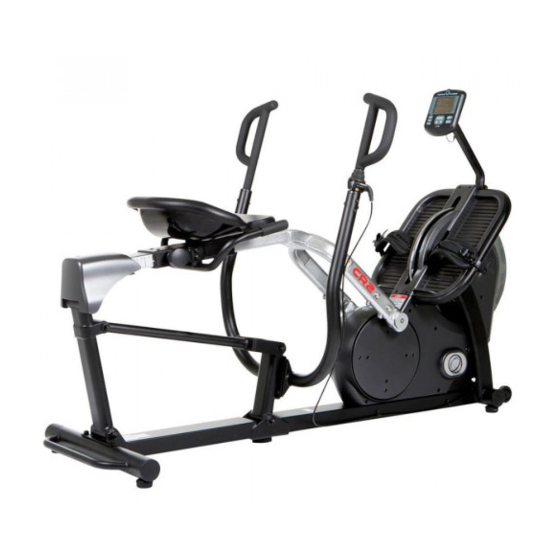

Inspire CR 2.1 Owner's Manual

Rower
Hide thumbs

Advertisement

Table of Contents

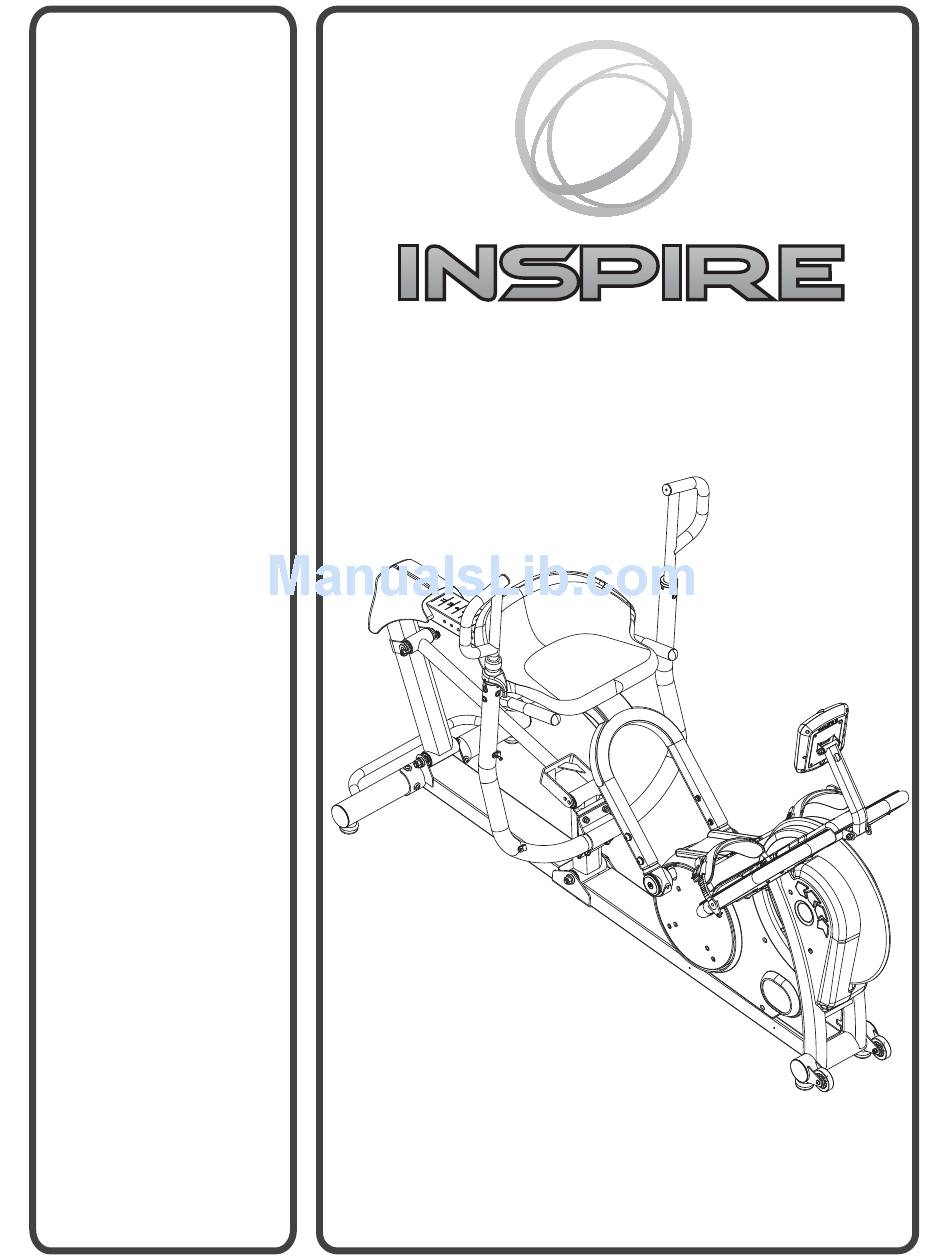

NOTE:
Please read all
instructions carefully
before using this
product.
Table of Contents
Safety Notice
Rower
Hardware Identifier
Assembly Instructions
CR 2.1
Parts list
Exploded Diagram
Warranty
MODEL
CR 2.1
Retain This
Manual for
Reference
11-01-2016
OWNER'S
MANUAL
255 Airport Circle, Corona, CA 92880
Tel:(877) 738-1729 Fax: (714) 738-1728
www.inspirefitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR 2.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Inspire CR 2.1

Summary of Contents for Inspire CR 2.1

  • Page 1 NOTE: Please read all instructions carefully before using this product. Table of Contents Safety Notice Rower Hardware Identifier Assembly Instructions CR 2.1 Parts list Exploded Diagram Warranty MODEL CR 2.1 Retain This Manual for Reference 11-01-2016 OWNER’S MANUAL 255 Airport Circle, Corona, CA 92880 Tel:(877) 738-1729 Fax: (714) 738-1728 www.inspirefitness.com...

  • Page 2: Table Of Contents

    Warranty ....................22 Before You Begin Thank you for selecting the INSPIRE CROSS ROW. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to providing you complete customer satisfaction. If you have any questions, or find there are missing or damaged parts, please call our TOLL- FREE customer service number.

  • Page 3: Important Safety Notices

    IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1.

  • Page 4: Warning Label Placement

    Warning Label Placement PAGE 4...

  • Page 5: Contents Of Packaging & Hardware

    Contents of Packaging TOOL STEP1 STEP2 STEP4 STEP3 STEP5 STEP6 PAGE 5...
  • Page 6 CR2 Hardware Pack STEP1 STEP2 STEP4 STEP3 STEP5 STEP6 NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure the size. PAGE 6...

  • Page 7: Assembly Instructions

    Step 1 Attach and tighten the Rear Stabilizer Tube Assembly (26) to the Main Frame (24) using 4 – M10x20 Socket Head Screws (27), 4 – M10 Spring Washers (28), and 4 – M10 Curved Washers (29). PAGE 7...
  • Page 8 Step 2 Attach the Seat Handles (22) to the Seat Slider (54) using 4 – M8 Button Head Screws (19), 4 – M8 Spring Washers (20), and 4 –M8 Flat Washers (21). Attach the Seat Pad (17) in the orientation shown in the image and secure it to the Seat Slider (54) using 4 –...
  • Page 9 Step 3 Attach the Press Arm (34) to the Press Arm Vertical Linkage (66) using 4 - M8 Lock Nuts (7) and 4 - M8 Washers (13). Insert the Right Press Arm Handle (36) into the right side of the Press Arm (34) and secure it using 4 - M6x20 Socket Head Screw (83), 4 - M6 Spring Washers (84), and 4 - M6 Flat Washers (85).
  • Page 10 Step 4 Attach the Foot Plate (10) onto the Main Frame (24) but do not fasten it with any hardware. Attach the Heel Guard (87) onto the Main Frame (24). Fasten the Heel Guard (87) to the Foot Plate (10) using 2 – M8x25 Hex Head Screws (33), 2 – M8 Lock Washers (20), and 2 –...
  • Page 11 Step 5 Install 2 AA batteries into the back of the console. A pair of AA batteries is included with each console. Connect the Computer Console's connector (1) to the Upper Computer Cable (53) and secure the Computer Console (1) to the Computer Console Plate (4) using 4 - M5 screws (5).
  • Page 12 15 15 15 15 39 39 Step 6 Attach the Flywheel Shrouds 11 & 12 to the left and right sides of the Main Frame (24), respectively using 4 - M5 Screws (39) and 1 self-tapping screw (23). Attach the Seat Slider Shroud (32) to the Seat Slider Bracket (51) using 2 self- tapping screw (15) PAGE 12...
  • Page 13 Step 7 Thread the Center Leveling Pad (65) until it makes firm contact with the floor. PAGE 13...

  • Page 14: Computer Operations Guideline

    This unit is equipped with a Coded Polar Telemetric Heart Rate transmitter that allows the user to monitor their heart rate while wearing a Chest Strap. For peak performance we recommend the T34 Polar Chest Strap. Chest Strap may be purchased from Inspire by either going to www.inspirefitness.com or by calling (877) 738-1729.
  • Page 15 2) Age Users may input their age in order to adjust the calorie counter accordingly. Entering Age a.) Press and Hold the UP + DOWN button for 2 seconds b.) AGE will begin to blink. The default is 35. Adjust the age using the arrow keys.

  • Page 16: Heart Rate Monitor

    Heart Ra te Monit The ches st strap allow ws the Polar t telemetry he eart rate featu ure on the C CR2.1 to cont tinuously mo onitor the heart rate of the u user. Lightly w wet the chest t strap electr rodes (the tw wo extruded,...

  • Page 19: Parts List

    Parts List Part No. Description    RM300-631-001 Computer Console 0113-208-658B M8x65 Socket Head Screw RM301-340-001PZ Foot Plate Assembly RM300-381-013 Computer Console Plate M5x10 Bolt RM300-380-009PZ Computer Adjustment Post 0110-708-028 M8 Hex Nut RM300-801-006 Foot Strap 0113-206-138 M6x12 Bolt RM301-340-001 Foot Plate Assembly RM300-801-007 Flywheel Shroud, L RM300-801-008...
  • Page 20 0113-104-108 M4x10 Bolt RM300-801-003 Crank Cover RM300-801-001 Shroud, L 0110-410-019 M10 Flanged Nut RM300-380-005 Crank CN-S23-00 Flywheel Assembly 0200-231-31S Crank Shaft Bearing B662-501-010 Belt RM300-500-001PZ Crank Sprocket Speed Sensor Magnet RM300-501-004 Chain RM300-801-002 Shroud, R RM300-381-015 Seat Slider Bracket Console Cable, Lower Console Cable, Upper RM300-300-001PZ Seat Slider Assembly...
  • Page 21 RM301-380-002PZ Rear Vertical Linkage 0114-742-138 Self-Tapping Screw TR510-881-018A R Clip 0113-206-208C M6x20 Bolt 0116-306-028 M6 Spring Washer 0116-006-008 M6 Flat Washer 0111-008-208B M8x20 Bolt RM301-881-003 Heel Guard PAGE 21...

  • Page 22: Warranty

    Warranty does not extend to any Product that has been damaged or rendered defective; (a) as a result of accident, misuse, or abuse; (b) by the use of parts not manufactured or sold by Inspire Fitness; (c) by modification of the Product; (d) as a result of service by anyone other than Inspire Fitness, or an authorized Inspire Fitness warranty service provider;...
