Real-time and trend curves
102
Configuration (during ventilation)

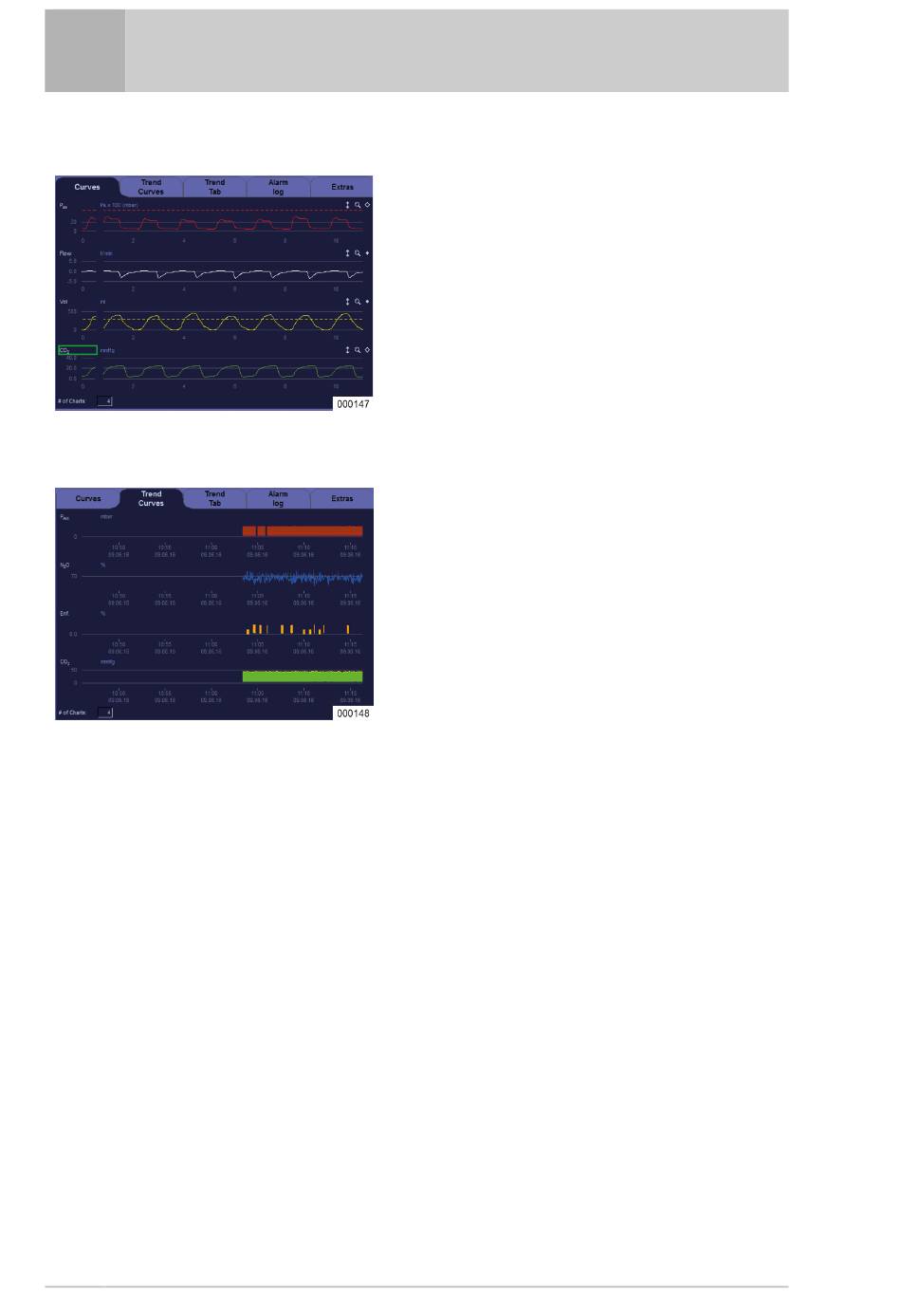

Configuration of real time
Real-time and trend curves can be configured as
follows:
▪ Selection of which measured value is displayed
▪ Shifting of 0 point in the window
▪ Scaling of the Y-axis
▪ ON/OFF autoscaling
▪ Number (minimum 1, maximum 4) of the
displayed real-time curves
▪ Scaling of the X-axis (4–30 seconds)
(→ "Table 12: Icons/screen (control elements)" p. 44)
Configuration of trend curves
▪ Selection of which measured value is displayed
▪ Shifting of 0 point in the window
▪ Scaling of the Y-axis
▪ ON/OFF autoscaling
▪ Number (minimum 1, maximum 4) of the
displayed trend curves
▪ Scaling of the X-axis (10 min - 72 hours)
