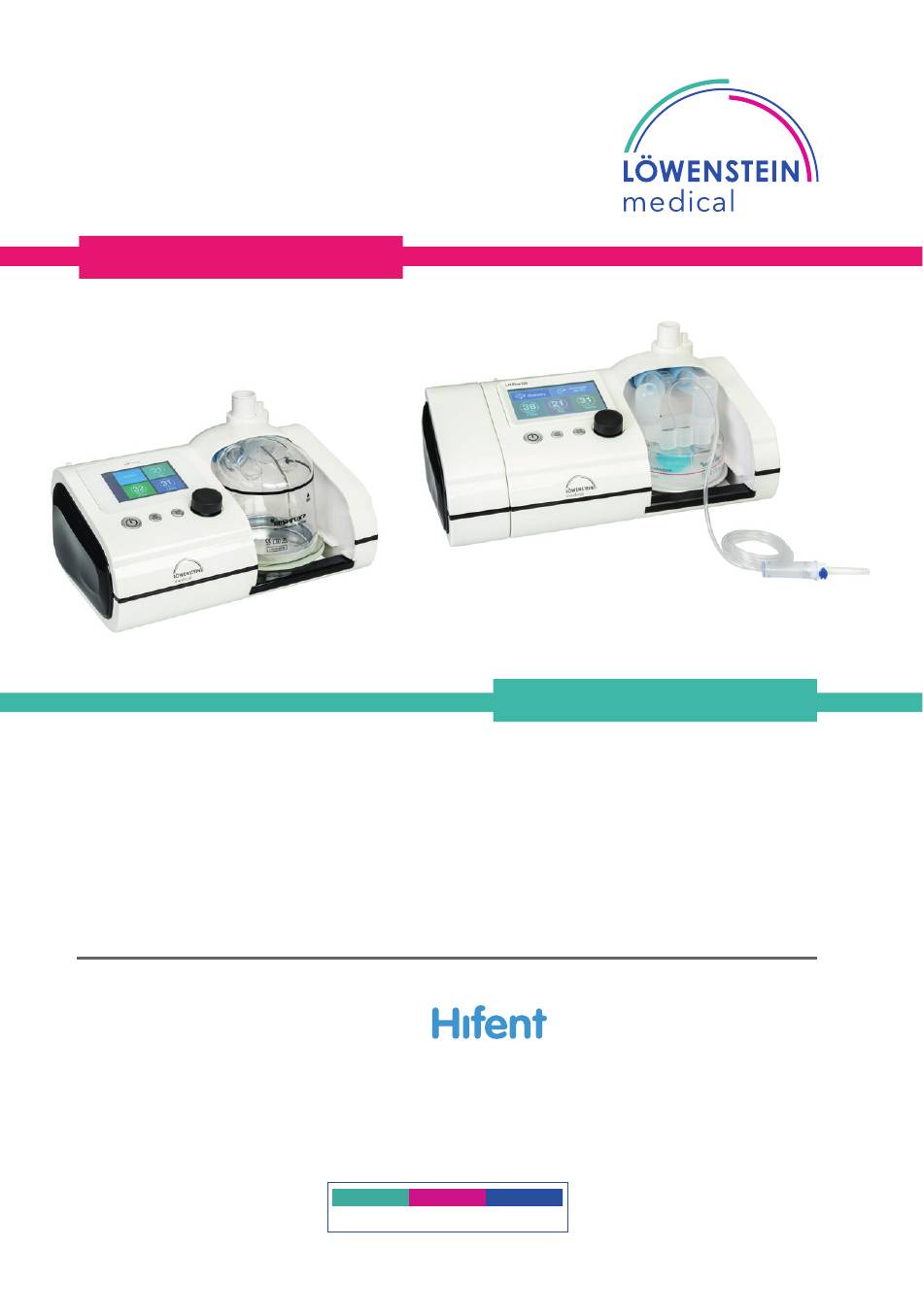

- Page 1 HOME CARE HOSPITAL LM Flow / LM Flow 100 Instructions for Use and Technical Description HUMID BM / BH High-flow device with heatable humidifier HOSPITAL HOME CARE DIAGNOSTICS...
-
Page 2: Table Of Contents
Notes to the reader / Warnings ..........10 Control panel ..................12 Use ......................14 Alarms ....................19 Cleaning and maintenance ............22 LM Flow disinfection instructions ..........23 Service and repair ................24 Troubleshooting ................25 Technical data ...................26 Electrical block diagram ...............28 Flow Block Diagram ...............28 Packing list ..................29... -
Page 3: Symbols
Symbols Degrees Celsius Litre per minute °C L/min Protection class II against electric shock Protection class against vertical IPX1 water drips (dripping water) Alarm condition Electrical level of protection, BF Acoustic alarm switched OFF Serial number According to RoHS Pay attention to the User Manual According to EC directive 93/42 / EEC Pay attentiion to the safety information... - Page 4 damage, liquid has penetrated device must be installed, tested the high-flow device, the therapy and used in accordance with the gas is too hot, or if unusual nois- provisions in the accompanying es can be heard. documents. • If the high-flow device is used in •...
- Page 5 air inlet, the high-flow device may overheat or be damaged. • If the high-flow device is connect- ed to oxygen and the therapy tube is blocked, this can lead to an increased oxygen concentra- tion. • The ventilation openings are in the bottom of the humidification chamber.
-
Page 6: Foreword
Foreword The high-flow devices of the LM Flow series are heatable high-flow devic- es with an integrated respiratory humidifier. In order to use this high-flow device safely and effectively, please read this user manual carefully before use. Intended use This high-flow device is suitable for patients with spontaneous breathing. -
Page 7: System Preparation

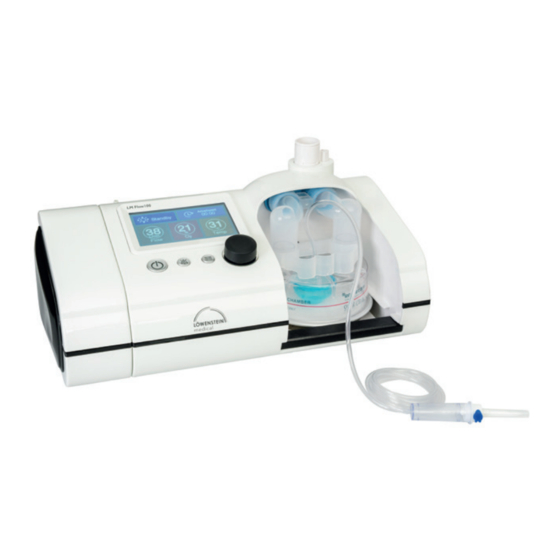

LM Flow 100 Oxygen inlet, Low-/ High pressure LCD display Parameter display, parameter setting (only LMFlow100) Buttons / encoders Start/stop, parameter setting Oxygen inlet Connection to an external oxygen source Power connection Connection to the power supply Cover, air inlet, filter Inlet and filtering of the therapy air Extends the functions of the device;... - Page 8 Connect the oxygen Connect Connect the oxygen source to the oxygen the LM flow to power. source to the high-flow tank (not necessary if device (not necessary no additional oxygen is if no additional oxygen required).
- Page 9 Check the water level Connect the heated in the water chamber. tube system. Connect Connect the oxygen source the LM flow 100 to (not necessary if no power. additional oxygen is required).
-
Page 10: Notes To The Reader / Warnings
Notes to the reader / Warnings → Home care water chamber When using the Home care water chamber, fill clean water or medical sterile water (e.g. ALLEGRA sterile water) into the water chamber. By heating the water to 100°C before use, you reduce limescale deposits in the water chamber. - Page 11 → Connecting the oxygen source LM Flow (Fig.III a) The LM Flow high-flow device can be con- nected to a low-pressure oxygen source (e.g. oxygen concentrator). To do this, plug the oxygen supply hose onto the oxygen connector on the high-flow device (see Figure IIIa).
-
Page 12: Control Panel
Control panel The control panel consists of buttons and an LCD display. LCD display Start/stop button → Mute button Buttons Encoder Menu button • Press this button in standby mode to start therapy. Press this Start/Stop button during the therapy to end therapy. •... - Page 13 L/min Temp point temperature Flow Working time Prompts, Operating status of Standby alarm information the high-flow device LM Flow 100 Setting the flow value °C Set value of the Temp L/min dew point Concentration Flow temperature Display of the oxygen...
-
Page 14: Use
Only if is displayed, can you change the parameters and make changes to the system confi guration. Parameter setting LM Flow Press the menu button to select Set the parameters with the the fl ow and temperature via the encoder. - Page 15 Parameter setting LM Flow 100 Select the parameters using the Set the required parameters(O touchscreen. flow, temperature) using the touchscreen / encoder. Press the Start/Stop button for 3 Adjust the nasal cannula. seconds to start therapy. End of therapy LM Flow:...
- Page 16 Operating mode: Parameter settings mode • Children Flow: 2-25 L/min; • Temperature: 34 °C • : 21-100% • Flow: 10-80 L/min Adults • Temperature : 31 °C, 34°C, 37°C • : 21-100% Alarm settings: Alarm Parameter settings Default value too high! OFF, 30% - 100% too low! OFF, 21% - 25%...
- Page 17 Caution: If the high-flow device sends an alarm because the set flow value is not reached, this may be because the nasal cannula model is not suit- able. In this case, it must be replaced with a larger nasal cannula. It is recommended that the NAS-1 S model be used when the flow is less than 50 L / min or the NAC-1 M model when the flow is less than 60 L / min.
- Page 18 The FiO2 can be controlled automatically when using the LM Flow 100. The oxygen concentration must be within the preset range of the alarm parameters for the oxygen concentration, otherwise an alarm will sound.
-
Page 19: Alarms
Drying Tube nasal cannula during the drying mode. Alarms The high-fl ow devices of the LM Flow series are equipped with visual and acoustic alarm signals. The visual alarm signal appears if an alarm is triggered while using the high-fl ow device. The causes of alarm signals should be eliminated as soon as possible in order to avoid risks. - Page 20 The following alarms are arranged according to internal priority: Problem description Alarm Modus operandi Problem description Internal alarm Turn off and turn on again. If After commissioning, an error alarm this does not solve the problem, displays errors in internal parts such please contact Löwenstein as the engine, and after 5 seconds Medical.
- Page 21 Check if the preset flow value is too high. Check water level If there is not enough water in the Check whether the water in the water chamber, an alarm is displayed water chamber has evaporated and an acoustic alarm tone sounds and the chamber has been after 20 minutes for a flow>...
-
Page 22: Cleaning And Maintenance
Cleaning and maintenance The high-flow devices of the LM Flow series humidify the respiratory ther- apy gas with water vapor. If the regular cleaning, disinfection and replace- ment of parts are not carried out in accordance with these instructions, there is a risk that bacteria will settle on and in the high-flow device, which can infect the patient. -
Page 23: Lm Flow Disinfection Instructions
LM Flow disinfection instructions Installation Press the Start/Stop button for 3 seconds to end the therapy and start or end the drying mode. Remove the tube system and disconnect the device from the power source. Remove the tube system with the water cham- ber and insert the filter and the green cap as shown in the figure. -
Page 24: Service And Repair
Warning: Disconnect the oxygen supply from the high-flow device during the disinfection process. Before connecting the ozone disinfection device, the high-flow device must be disconnected from the mains. When the ozone disinfection de- vice is in operation, no one should be in the same room for a long time. →... -
Page 25: Troubleshooting
Troubleshooting Error Root cause analysis Troubleshooting • Air inlet filter or outlet port blocked. Insufficient flow • Replace the air inlet filter, • Respiratory tube leaking or damaged. clear the outlet opening from • Water chamber not installed or the blockage. damaged. -
Page 26: Technical Data
<20dBA at 10 L/min Dimensions 300x197x165mm (LM Flow) 358x197x165mm (LM Flow 100) Weight 2.0Kg(LM Flow), 2.5Kg(LM Flow 100) High-flow device outlet > 33 mg/L (2-60L/min, 37°C) > 10 mg/L (2~80L/min, 34°C) > 10 mg/L (2~60L/min, 31°C) Maximum temperature of the trans- 43°C... - Page 27 21%-100%, with an accuracy of ±3% Oxygen measuring range Product class according to EC Directive 93/42/ Classification EEC: lla; device class Type II BF Model Pro- tection against water IPX1 Dripping water Operating mode: continuous operation. Do not use the device in an environment with air, oxygen or nitrous oxide, or other gases mixed with flammable anaesthetic gases.
-
Page 28: Electrical Block Diagram
Electrical block diagram Control panel (displays and buttons) 220 L Detection of Power supply Main control panel flow and Switch on/OFF oxygen concentration 220 N Ventilator Flow Block Diagram Fresh air/medical oxygen Inlet filtration Ventilator User High-flow device Therapy Detection of the Nasal cannula Water chamber tube... -
Page 29: Packing List
Packing list Item Description Units Quantity High-flow device Piece Water chamber Heatable therapy tube Piece Nasal cannula Piece Power cord Piece Oxygen hose set (optional) Oxygen hose Piece Mounting screw (optional) Piece filter Piece Guarantee card Piece Quality card Operating Instructions Piece User manual Piece... - Page 30 lmmunity test Conformity Electromagnetic environment - guidelines RF emission Group I The high-flow device used GB 4824 RF energy only for its internal function. Therefore, the high-flow device has very low RF emission Type B RF emissions and other electronic devices in GB 4824 the vicinity are very unlikely to be disturbed.
- Page 31 Voltage dips, short <5% of the <5% of the mains The power supply of interruptions and mains voltage voltage, the networks should voltage fluctuations Lasts 0.5 Lasts 0.5 cycle 40% of be suitable for use in GB/T17626.11 cycles at 40% the mains voltage typical business or of the mains...
- Page 32 RF line GB/T17626.3: 3V/m 80MHz-2.5GHz: 3V/m 80MHz-800MHz: d= 1.2P 80MHz-2.5GHz: d= 1.2 P With the following meaning: P - the maximum output power of the transmitter specified by the manu- facturer, unit: W; d - recommended distance, unit: m; The field strength of fixed RF transmitters must be determined by measur- ing "a"...
- Page 33 following minimum recommended distance between portable and mobile RF communications equipment (transmitters) and the high-flow device. Distance of the transmission frequency in meters (m) Max. output power 150kHz-80MHz 80 MHz-800MHz 80MHz-2.5GHz in Watt (W) d = 1.2 d = 1.2 d = 2.3 0.01 0.12...
-
Page 34: Appendix B Order Numbers
Appendix B Order numbers Figure Name Item no. LM Flow 302010004 LM Flow 100 302010003 lmhfc2001 lmhfc2002 Löwenstein Medical lmhfc2003 high-flow Cannulas lmhfc2004 lmhfc2005 lmhfc2006 Tracheostoma 303030007 Adapter Disinfection device 303030010 Disinfection kit 303030011... - Page 35 Set of heated therapy tube & Autofill water 303030017 chamber Home care water 303040002 chamber Handle water 501010141 chamber Air inlet filter 5011500017 (5 pieces per pack) Trolley 402300020 LM Flow / LM Flow 100 Instructions for gba10440de2005 use and technical description...
- Page 36 Prolinx GmbH Brehmstr.56, 40239 Düsseldorf Germany T: +49-2131 4051968-0 Shenyang RMS Medical Tech Co.,Ltd No. 21, Gaoke Road, Hunnan New District, Shenyang, China Import and Distribution: Löwenstein Medical Arzbacher Straße 80, 56130 Bad Ems, Deutschland T: +49 2603 9600-0 - F: +49 2603 9600-50 info@hul.de - www.hul.de...
