Overview

Thank you for choosing REXING! Please reach us via care@rexingusa.com or call us at (203) 800-4466 if you need assistance or have any suggestions to improve the products. Our support team will respond you as soon as possible.

Rexing always surprises. Check us out here.

/rexingusa

@rexingdashcam

www.rexingusa.com/support/registration/

What's in the Box

Quick Start Guide
Safety Guide
Car Power Connector (12ft)
3M Adhesive Mount
Cable Adhesive Spacer
Cable Management Tool

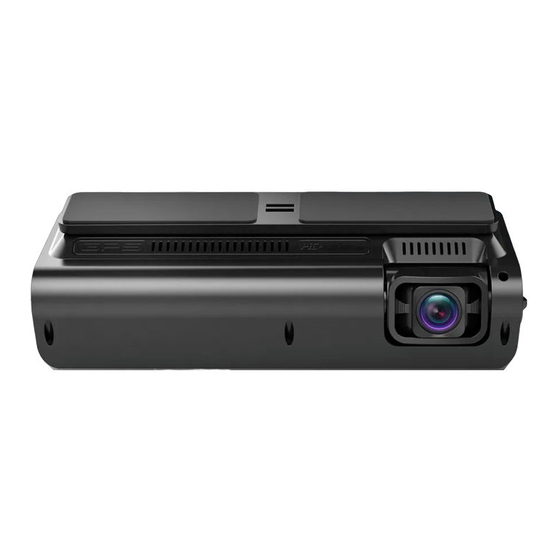

Rexing S800 Dashboard Camera
Rear Camera with Cable

Camera Overview

7" IPS Touch Screen
USB Port
SIM Card Slot
GPS Antenna Port
Power Button
Rear Camera Port
Micro SD Card Port
Reset Button
Camera Angle Adjustment Dial
3M Adhesive Mount
Front Camera
Slide Adhesive Mount On
Slide Adhesive Mount Off

Screen Icons

Installation

Install the Adhesive Mount

Orient the mount as shown on the illustration above.
Clean your windshield surface thoroughly and allow it to dry before applying the static cling. Peel off one plastic layer from the static cling and apply it to your preferred spot. Peel off the other plastic layer and attach the Rexing adhesive mount onto it. Make sure the mount is facing to the correct slide in direction.

Firmly press the mount onto the windshield. Wait at least 20 minutes before mounting the camera.

Insert the Memory Card

The Rexing S800 accepts [Class 10/ UHS-1 or higher] Micro SD memory cards up to 256GB. You will need to insert a memory card before you can begin recording. Before inserting or removing a memory card, first ensure you've powered down the device. Please go to www.rexingusa.com/smart-connect/ for more details of the SIM card activation and functions.
Insert the Memory Card

Power the Camera and Format the Memory Card

Power the camera by connecting the charger to the car cigarette lighter and camera. Before you start using a new memory card, you must format the card within the camera using the format function. This will ensure the S800 records to your memory card properly and without error. Always backup important data stored on the memory card before formatting.
Powering the Camera

To format the memory card, make sure you have inserted your memory card, then turn on the device by connecting to a power source.
Formatting the Memory Card
Press the OK button to confirm formatting the card

Press on the left corner of Main Menu. Select "Storage" and then press "Format SD". Press "OK" to confirm formatting the card.

After the SD card is formatted, you may now disconnect.

Installing the Rear Camera

Mount the rear camera as shown below. Use the provided rear camera cable to connect the rear camera to the front camera.
Installing the Rear Camera

Installing the Camera onto the Windshield

Place the camera on the mount and carefully route the power cable around the windscreen and tuck it under the trim.

Plug the car charger cable to a 12V DC power outlet or the car cigarette lighter.

Connect car charger to the camera. The camera will auto-start recording once it's powered on.

Installing the Camera onto the Windshield

Basic Operation

Device Power

The device will be automatically powered on when plugged into a 12V accessory socket or a cigarette lighter when receives a charge (i.e.: the vehicle is started).

To turn the device on manually, press and hold the Power button until the welcome screen appears.

The camera will automatically start recording when it is powered on.

Device Power - Turning the device on manually
Press and hold the Power button to turn the device on manually

Power the camera on. Click on Main Menu to enter video recording. Click to enter Camera Settings.

Dash cam will automatically return to Main Menu after 30 seconds if there is no actions taken.

Press on Main Menu to enter System Settings.

Video Recording

The camera will automatically start recording when the device receives a charge. Click on Main Menu and enter video recording. Press to stop recording and press to resume recording. Press to lock the current video footage.

Video Playback

To playback a video on the device, click on Main Menu to enter video recording. Press to enter the video list; toggle through list and press the file to play videos.
Video Playback

During playback, rewind and fast forward the video to desired specific time.

When the GPS Logger is connected to the camera, it will record and you can access the information while playing back your recordings using the CarAssist App.
GPS Navigation

Press GPS Navigation on Main Menu. Click "Settings" on the right corner and turn on the GPS feature. Selecting Google Map. The dash cam will automatically search for the GPS signal once it's connected to the GPS Antenna.

After a GPS signal is found, the screen will show your location on Google Map.
GPS Navigation - GPS Signal searching

Taking Photos

Press to enter Video Recording; click to stop recording. Select to access photo feature. Then press again to take photos.
Taking Photos

Review and Delete Photos

To review photo, click when in recording, then select folder "Capture" to review the photos.

To delete a photo, press on the right corner and select one photo or all photos for delete.

Review and Delete Photos

Smart Connect

Click on Main Menu to enter Smart Connect Feature; Download the App by scanning the QR code.
Open the CarAssist App on your mobile device. Press "Scan Device" then scan the QR code on dash cam.
Once binding successfully, dash cam will be shown "Online".
Using the CarAssist App, you can take a picture/video or view a live preview of the dash cam screen, start/ stop recording, as well as view and save your captures with your mobile device. By using this App, you may also locate your car 24/7 and check the live surroundings with your mobile devices.
