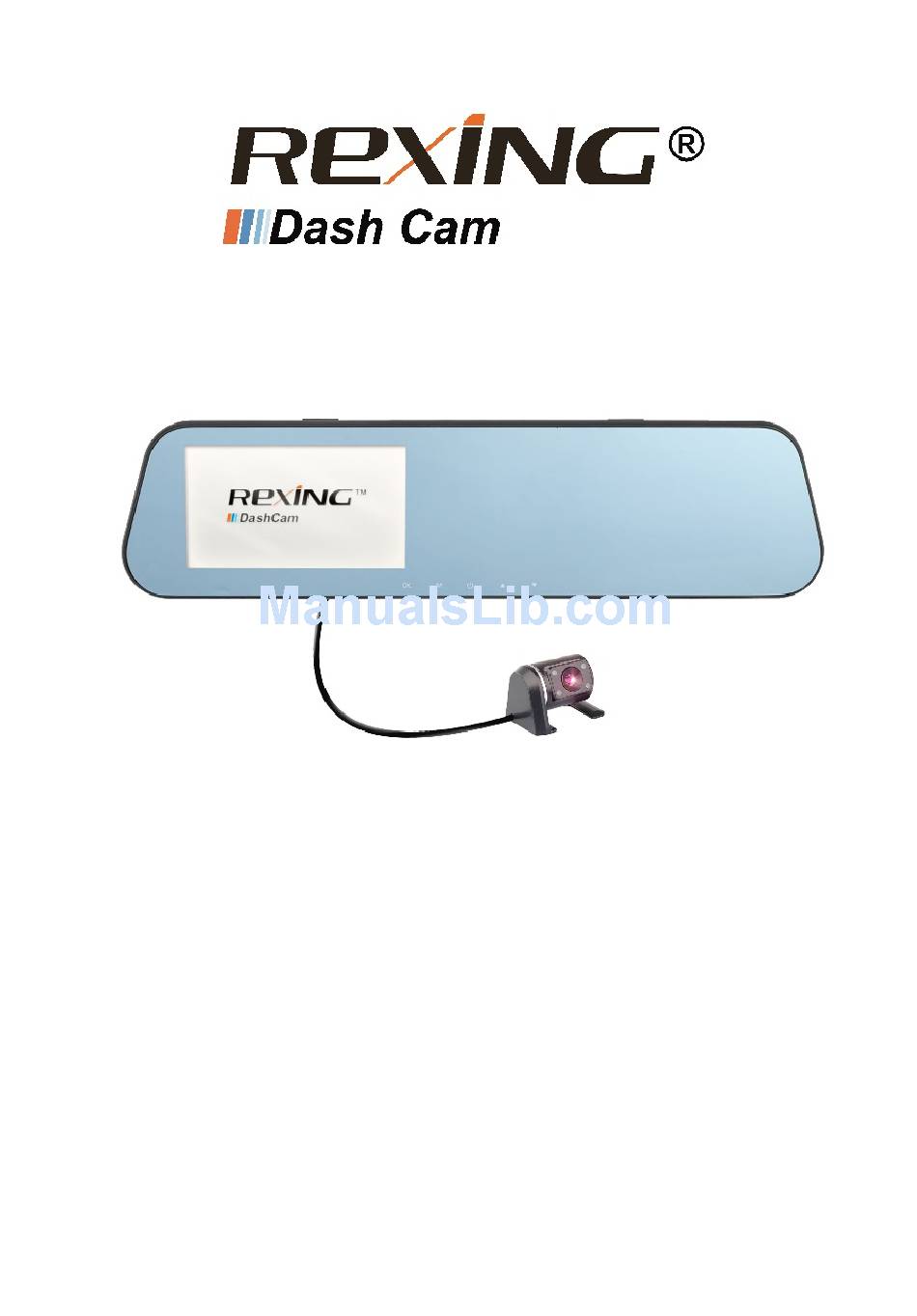

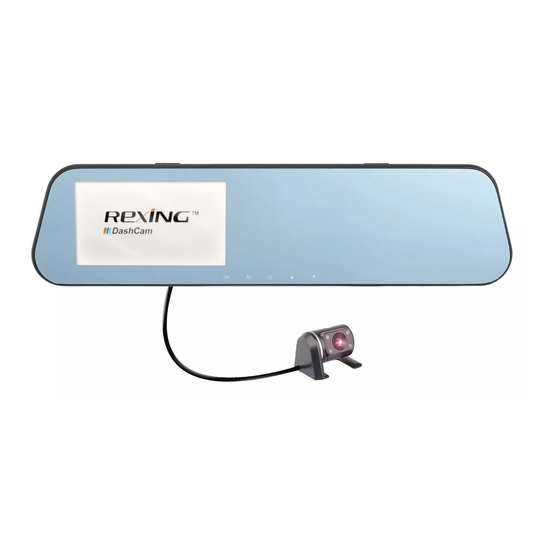

USER MANUAL
R1
All brand and product names are trademarks or registered trademarks of
REXING INC.
The information in this manual is subject to change without notice.
www.rexingusa.com
11/2017Rev2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rexing R1

Summary of Contents for Rexing R1

  • Page 1 USER MANUAL All brand and product names are trademarks or registered trademarks of REXING INC. The information in this manual is subject to change without notice. www.rexingusa.com 11/2017Rev2...
  • Page 2 Failure to comply with safety warnings and regulations can result in serious injury or death. Rexing Dash Cam is not intended to be touched, modified, or calibrated while operating a vehicle. Rexing is not responsible for any damages resulting from the user's misuse of the camera.
  • Page 3 • your device. Using an incompatible charger can cause serious personal injury or damage to your device. Rexing cannot be responsible for the user’s safety when using • accessories or supplies that are not approved by Rexing. Do not drop the charger or device, or subject them to impact. Handle and dispose of the charger and device with care.
  • Page 4 If children use the device, make sure they use the device properly. Never use a damaged charger. • Do not handle a damaged or leaking lithium ion (Li-Ion) battery. For safe disposal of your Li-Ion battery, contact your nearest authorized service center. @2017 REXING All Rights Reserved.
  • Page 5 If you notice strange smells or sounds coming from your device, or if you see smoke or liquid leaking from the device, stop using the device immediately and take it to a Rexing Service Center. Failure to do so may result in fire or explosion.
  • Page 6 Do not attempt to disassemble, repair, or modify your device. Any changes or modifications to your device can void your • manufacturer’s warranty. If your device needs servicing, take it to an authorized Rexing Service Center. @2017 REXING All Rights Reserved.
  • Page 7 Do not distribute copyright-protected material. Doing so without the permission of the content owners may violate copyright laws. The manufacturer is not responsible or liable for any legal issues that result from the user’s illegal use of copyrighted material. @2017 REXING All Rights Reserved.
  • Page 8 Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. @2017 REXING All Rights Reserved.
  • Page 9 ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL REXING BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES...
  • Page 10 Getting Started Overview of your R SERIES Dashboard Camera Third party services may be terminated or interrupted at any time, and Rexing makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Rexing has no control.
  • Page 11 • Content may differ from the final product or from software provided by service providers, and is subject to change without prior notice. For the latest version of this manual, refer to the Rexing website at • www.rexingusa.com. Available features and additional services may vary by device and software.

  • Page 12: Table Of Contents

    Removing the memory card ...........23 Formatting the memory card ..........24 Turning the Device On and Off ..........25 Basic Operation ..............26 VIDEO SETTINGS .................27 Video Quality (Resolution)............27 Loop Recording (Video Time Length)........27 Collision Sensitivity (G-Sensor) ..........28 Exposure .................28 @2017 REXING All Rights Reserved.
  • Page 13 Photo Quality (Resolution) .............30 Date/Time Setup ..............30 Screen Switch .................30 Language ................30 TV Mode .................31 Format ..................31 White Balance ................31 Exposure .................31 Quick Review ................31 Factory Reset ................31 Version (Firmware Info)............32 Updating Firmware ..............33 Playback Mode ................34 @2017 REXING All Rights Reserved.
  • Page 14 Getting Started Overview of your R SERIES Dashboard Camera Deleting Files ................34 PC Playback Function..............34 General Troubleshooting............36 @2017 REXING All Rights Reserved.

  • Page 15: Product Specifications

    15 Secs / 1 min / 3 min / OFF Screen Saver 3 min / 5 min / 10 min / OFF Auto Shutdown Microphone Mute ON / OFF Motion Detect ON / OFF Operating Temperature -20℃ ~ +65℃ @2017 REXING All Rights Reserved.

  • Page 16: Getting Started

    1. OK (Confirm) Button Rear Camera Port 2. Mode Button/Menu Button MicroSD Card Slot 3. Power ON/OFF Switch GPS Module Port (Not 4. Up Navigation Button Support) 5. Down Navigation Button 10. Reset Button 6. USB Charging Port @2017 REXING All Rights Reserved.

  • Page 17: Buttons

    • Press to navigate DOWN through options in Menu / Playback functions • Press to toggle between Record and Mute in Recording ▼ Mode • Press and hold in Playback Mode to enable fast forward during video playing @2017 REXING All Rights Reserved.

  • Page 18: Package Contents

    All supplied items are designed for use only with this device and may not be compatible with other devices. Malfunctions resulting from the use of unapproved accessories are not covered by the warranty service. For more information about available accessories, refer to the Rexing website at www.rexingusa.com. @2017 REXING All Rights Reserved.

  • Page 19: Installation

    After installation is complete, put camera plug into the recorder’s rear camera port. Adjust the lens position to ensure that the lens level with the ground. Start the engine to check if the device has been installed correctly. @2017 REXING All Rights Reserved.
  • Page 20 Class 10 high-endurance memory card with a capacity of at least 8GB. 4. Connecting the charger to the car's 12V DC outlet Be sure to connect only the Rexing-approved charger designed and supplied specifically for use with your device. Using an incompatible charger can cause serious personal injury or damage to your device.

  • Page 21: Charging The Battery

    Charging the battery Charge the device by connecting the camera via the USB car charger port. Use only Rexing-approved chargers. Using unapproved chargers or cables can damage the device or cause the battery to explode. Connect the car charger’s jack to the USB charging port, and then plug the charger into the car cigarette lighter or 12V DC power outlet.

  • Page 22: Inserting The Memory Card

    If the device is not charging properly, take the device and the charger • to an authorized Rexing Service Center. Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

  • Page 23: Removing The Memory Card

    Removing the memory card Before removing a memory card from your computer, you must first unmount it for safe removal. Before removing a memory card from your device: @2017 REXING All Rights Reserved.

  • Page 24: Formatting The Memory Card

    Do not remove the memory card while the device is transferring or accessing information. Doing so can result in data loss or corruption, or damage to the memory card or device. Rexing is not responsible for losses that result from the use of damaged memory cards, including the loss of data.

  • Page 25: Turning The Device On And Off

    The camera will automatically start recording when power on. ***If your car cigarette lighter provides constant power to the Dash Cam, the unit will not turn on and off with the vehicle, and will instead remain on.*** @2017 REXING All Rights Reserved.

  • Page 26: Basic Operation

    The dash cam will automatically start recording once it’s powered on. When the R1 is recording, you will see the recording time counting up in the top right corner, next to the red recording mode indicator. If you’re not currently recording, there should be no time being displayed in this area.

  • Page 27: Video Settings

    All video older than this range will be replaced with new video (Note: any locked video files on the memory card will remain protected, and will not be automatically deleted during Loop Recording). @2017 REXING All Rights Reserved.

  • Page 28: Collision Sensitivity (G-Sensor)

    Adjust the camera exposure value for brighter or darker recorded video, according to your preference. Record Voice After the box is checked, video is recorded with synchronized sound; not ticked, not only the video is recorded. @2017 REXING All Rights Reserved.

  • Page 29: Time Watermark

    After the box is checked, this feature is enabled. This feature allows you to use your device as a surveillance camera with added shake-detection functionality. If shaking is detected by the built-in g-sensor, the device automatically enters Record Mode and records for 15 seconds. @2017 REXING All Rights Reserved.

  • Page 30: System Settings

    Select a time duration for the screen to stay lit after recording starts. Alternatively, you can use a hot key shortcut for this feature. During Recording Mode, press to turn the LCD screen on or off. Language Language availability may vary depending on the region. @2017 REXING All Rights Reserved.

  • Page 31: Tv Mode

    Enabling this feature will allow you to immediately view each captured image for a few seconds before taking the next photo. Factory Reset Performing this operation will reset all of your device's settings to their original values. Note: any user-customized settings will be lost. @2017 REXING All Rights Reserved.

  • Page 32: Version (Firmware Info)

    Operating your R SERIES Dashboard Camera Photo Settings Version (Firmware Info) Here you can view your device’s firmware version information. @2017 REXING All Rights Reserved.

  • Page 33: Updating Firmware

    The following procedure will allow you to use the Rexing website to update firmware for your Rexing R1 Dashboard Camera: 1. Download the firmware file to your computer 2.

  • Page 34: Playback Mode

    For the files with lock symbol on top, they are protected and can’t be deleted directly. To delete them, you need to format the MicroSD card, erasing all the files. PC Playback Function Minimum System Requirements @2017 REXING All Rights Reserved.
  • Page 35 Remember to always make backup copies of all important data stored on the device in your computer. It is not recommended to establish folder in memory card to store data, which would reduce card space. @2017 REXING All Rights Reserved.

  • Page 36: General Troubleshooting

    Menu Button Not Unit may be recording so you can access the responding menu Charge the battery for 3 Device will not Battery may be hours. Make sure unit is off depleted turn on while charging. @2017 REXING All Rights Reserved.
  • Page 37 SD Card Won’t Stay clicks SD card may be too thin Use a different SD Card SD Card Not Format SD Card SD Card needs to be Recognized (Custer formatted. Use a different SD Card error) @2017 REXING All Rights Reserved.
  • Page 38 SD Card may not be compatible Restore to default settings Keeps Turning off Might not be getting Get a replacement power continuous power. cord Memory card may Screen Frozen Try a new memory card defect @2017 REXING All Rights Reserved.
  • Page 39 Use a different SD Card Stops Recording at SD Card is not random intervals Compatible Restore default settings G sensor may be too Put G sensor on lowest high setting Not Looping SD Card full Format SD Card @2017 REXING All Rights Reserved.
  • Page 40 Reformat the memory card. trying to play back sectors pictures or video Carefully clean dust or Hazy images Lens may be dirty fingerprints from the lens with a microfiber cloth @2017 REXING All Rights Reserved.
  • Page 41 Turn off “Update time of date Firmware. GPS” Update Firmware GPS logger may be GPS not too close to the unit, Make sure GPS Logger is Connecting causing interference 5” from unit to not cause with the signal. interference. @2017 REXING All Rights Reserved.
