  • Page 1 GW101 User Manual The information in this manual is subject to change without notice. www.rexingusa.com...
  • Page 3: Safety Information

    Failure to comply with safety warnings and regulations can result in serious injury or death. Rexing Dash Cam is not intended to be touched, modified, or calibrated while operating a vehicle. Rexing is not responsible for any damages resulting from the user's misuse of the camera.
  • Page 4 - Use only the manufacturer-approved charger specifically designed for your device. Using an incompatible charger can cause serious personal injury or damage to your device. - Rexing cannot be responsible for the user's safety when using accessories or supplies that are not approved by Rexing.
  • Page 5 If you notice strange smells or sounds coming from your device, or if you see smoke or liquid leaking from the device, stop using the device immediately and take it to a Rexing Service Center. Failure to do so may result in fire or explosion.
  • Page 6 - Any changes or modifications to your device can void your manufacturer's warranty. If your device needs servicing, take it to an authorized Rexing Service Center. Clean your device and charger by wiping with a towel or eraser. Do not use chemicals or detergents.
  • Page 7: Correct Disposal Of This Product

    Do not distribute copyright-protected material. Doing so without the permission of the content owners may violate copyright laws. The manufacturer is not responsible or liable for any legal issues that result from the user's illegal use of copyrighted material. Correct disposal of this product (applicable in countries with separate waste collection systems) Waste Electrical &...
  • Page 8 "THIRD PARTY CONTENT AND SERVICES ARE PROVIDED "AS IS." REXING DOES NOT WARRANT CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE.
  • Page 9 Third party services may be terminated or interrupted at any time, and Rexing makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Rexing has no control.
  • Page 10: Warm Prompt

    Warm Prompt We recommend that you carefully read this manual before using the dash cam, then read it again with the dash cam in your hands as this will help you to familiarize yourself with its many features. The dash cam is constantly improved over time, so the specification of the dash cam may change.
  • Page 11 8. In video recording mode, if you want to press Menu / Mode button, please stop recording videos first by pressing the REC button. 9. Please be careful and insert the TF Memory Card in the right way, do not force the Micro Memory Card in the slot as that is an indicator of the wrong way, insert it until the Micro TF Memory card clicks into place in the card slot.
  • Page 12 screen for a few minutes. It must always be connected to a power supply via a 5V 1A Charger. 16. If you turn the option of SCREEN SAVER ON, in video recording mode, when the screen is switched Off, the dash cam is still recording. You can turn the screen on by pressing any button.
  • Page 13: Product Specifications

    PRODUCT SPECIFICATIONS Image Sensor 5MP CMOS Lens 6-Layer Fixed-focus with full-glass elements Novatek 2.4 inch, 4:3 TFT Audio Built-in high-sensitivity microphone/speaker Class 10 or above Micro SD card (SDHC External Memory spec.) Shutter Electronic Exposure Auto ISO TV Interface None Battery 320mAh 3.7V rechargeable lithium ion battery Video Format...
  • Page 14: Getting Started

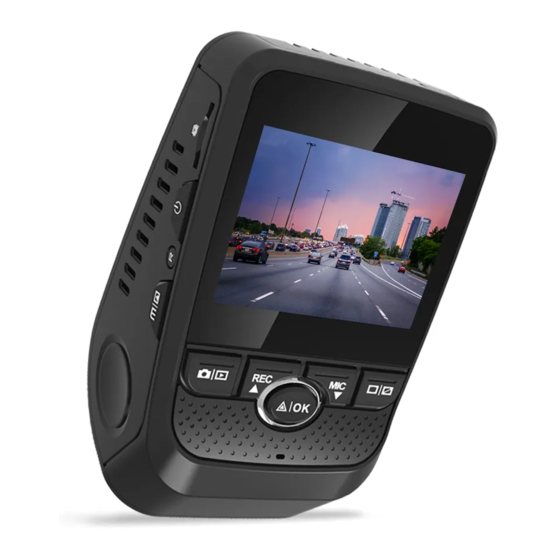

    GETTING STARTED Device Layout 1. Power ON / OFF Switch Emergency Locking Video 2. Reset Button Button 3. Menu Button 7. Down Navigation Button 4. Mode Button Mute / Unmute Button 5. Up Navigation Button / 8. Screen ON / OFF Button Video Record Button 9.
  • Page 15 Button Functions POWER – Press and hold 3 seconds to turn the device on or off  Press to confirm a selection while in Setting Mode  Press and hold 3 seconds to star or quit WiFi function  Recording Mode Hot Key: Emergency Lock (Press to manually lock the file during recording) MENU –...
  • Page 16: Status Icons

    Status Icons Icon Meaning Video Resolution Blinking – Recording Wide Dynamic Range Charging Battery Power Level Microphone Mute Microphone On Video Recording Mode Video Playback Mode Photo Mode Loop Recording Memory Card Inserted White Balance GPS Signal (Green-GPS OK, Blue-Acquiring GPS) License plate number Current video file locked...
  • Page 17: Installation

    Installation 1. Attaching the dash cam to the window mount Before the device can be used in a car, it is essential to first install a properly attached window mount. Make sure that you place the recorder in a safe, appropriate location where it will not obstruct the driver’s view.
  • Page 18: Charging The Battery

    use). For reliable operation, use a Class 10 memory card with a capacity of at least 8GB. 3. Connecting the charger to the car's 12V DC outlet Be sure to connect only the charger designed and supplied specifically for use with your device. Using an incompatible charger can cause serious personal injury or damage to your device.
  • Page 19  Battery is mainly used to save files in emergency. Please always connect dash cam to external power while it is in use.  When device detects no power supply, it will automatically power off after 5 seconds. To turn on the device again, you will need to do so manually by pressing ON / OFF button.
  • Page 20: Inserting The Memory Card

    Inserting the memory card Your device accepts memory cards with a maximum capacity of 128GB (FAT32 or exFAT format only, 64GB / 128GB cards should be formatted in the dash cam before use). Depending on the memory card manufacturer and type, some cards may not be compatible with your device.
  • Page 21: Removing The Memory Card

    It is recommended that you reformat a memory card after every time that images are transferred from it to a computer, or at least once a month. Reformatting a memory card keeps important elements of data and file structure clean, helping to prevent error messages and missing images.
  • Page 22: Formatting The Memory Card

    3.Gently push the memory card in and let go until it unlocks Do not remove the memory card while the device is transferring or accessing information. Doing so can result in data loss or corruption, or damage to the memory card or device. The seller not responsible for losses that result from the use of damaged memory cards, including the loss of data.
  • Page 23: Turning The Device On And Off

    Turning the Device On and Off Press and hold the ON/OFF button for a few seconds to turn on the device. A welcome message will be displayed onscreen. To turn off the device, again press and hold the ON/OFF button for a few seconds. A goodbye message will be displayed onscreen.
  • Page 24: Basic Operating

    Basic Operating  Dash cam will automatically start recording once power on, the indicator and the red dot icon on screen should flashing while recording.  During recording, press EMERGENCY button to lock current video clip, so the loop recording will not overwrite locked video clip.
  • Page 25: Video Settings

    VIDEO SETTINGS On Video Recording Mode, Press OK to stop recording then press MENU button once open System Settings Menu. Resolution Recommend setting: 1080FHD Use this setting to set the recording resolution. Approximately recording time: Memory card size 1080P Resolution 720P Resolution 1.3 hour 2.4 hour...
  • Page 26: Loop Recording

    Loop Recording Recommend setting: 1 Minutes With Loop Recording Mode enabled, the device will continuously erase older video as it records new video, keeping only the images captured over a user-selected time range. All video older than this range will be replaced with new video. (Note: any locked video files on the memory card will remain protected, and will not be automatically deleted during Loop Recording.) It is recommended that you reformat a memory card after every...
  • Page 27: Recording Audio

    Recording Audio Recommend setting: On You may choose to record audio with video, or turn off the microphone so that all recorded videos will be muted. Alternatively, you can use a hot key shortcut for this feature. During Recording Mode, press the DOWN button to mute / unmute the microphone for video recording.
  • Page 28: System Settings

    SYSTEM SETTINGS On Video Recording Mode, Press OK to stop recording then press MENU button twice open System Settings Menu. Date/ Time Setup Use this setting to change the device’s time and date: UP/Down – Change value OK – Move to next segment MENU –...
  • Page 29: Light Frequency

    TV Mode Recommend setting: NTSC This feature will setup video output format. Light Frequency Recommend setting: US - 60Hz This option should be set according to the power supply specification used in your country or geographical region (U.S. users should select the "60Hz" option). Format Performing this operation will format memory card.
  • Page 30: Update Time Of Gps

    Update time of GPS Select a time zone to enable automatic update time of GPS. Restore Default Factory Settings Performing this operation will reset all of your device's settings to their original values. Note: any user-customized settings will be lost. Version Device firmware version information.
  • Page 31: Photo Settings

    PHOTO SETTINGS On Photo Mode, Press MENU button once open System Settings Menu. Resolution Recommend setting: 5M This option allows you to set the pixel resolution for captured images. Capture Mode Recommend setting: Single With this feature you can set a timer for automatically capturing images.
  • Page 32: White Balance

    Sharpness Recommend setting: Normal This feature will automatically enhance captured images for a clearer, more distinct picture. White Balance Recommend setting: Auto This setting allows you to adjust the lighting balance for different environments. Color Recommend setting: Auto This feature allows you to choose a color effect for captured images.
  • Page 33: Anti-Shaking

    Anti-Shaking Recommend setting: Off This feature enables the image stabilizer function to reduce blurring of captured images. Quick Review Enabling this feature will allow you to immediately view each captured image for a few seconds before taking the next photo. Date Stamp Recommend setting: Date/Time This feature will automatically apply a date and/or time stamp to...
  • Page 34: Playback Mode

    Playback Mode You can play back recorded video on your device using the following steps: 1.Press REC to stop recording 2.Press MODE twice to switch from Recording to Playback Mode 3.Press and hold the UP or DOWN button to navigate through the stored video files 4.Press OK to start playback for the selected video 5.Press OK again to pause playback...
  • Page 35: Pc Playback Function

    To delete all files: 1.Press on UP or DOWN button to navigate through the video files 2.Press OK to enter "Video" 3.Press MENU to view options for this file: Delete/Protect/Slide Show 4.Press the DOWN button once to select "Delete" 5.Press OK once to view delete options for "Current MOV" file or "ALL"...
  • Page 36 Wi-Fi and operate. • iPhone users: Enter the Apple App Store™, search for ‘TimaCam’or Rexing Connec, download and install, following this user manual to connect the Wi-Fi and operate. Pairing the camera to your device 1.
  • Page 37 Driving Recorder Player Instruction "Driving Recorder Player Software" is designed to play recorded videos along with displaying GPS data and driving routes on a computer. Minimum System Requirements: CPU: Intel Core 2 Duo 2.4GHz RAM: 1 GB of free RAM Monitor: Resolution1280*720(or above) OS: Windows 7/8/10 (32bit/64bit ) or Mac OS X Software Installation...
  • Page 38 MAC OS Users: If you cannot install the software successfully, check your OS X Security & Privacy settings and allow applications downloaded from Anywhere. This will allow 3rd party applications that are not from the Mac App Store to be installed on your computer.
  • Page 39: General Troubleshooting

    General Troubleshooting Problem Possible Cause Solution Memory card may Reformat memory be full or card or replace with a malfunctioning The captured new one image is not Image not being Make sure to stop stored saved before the recording before device is powered shutting down Press the RESET...
  • Page 40 Charge the battery for Device will not Battery may be 3 hours. Make sure depleted unit is off while turn on charging. Charge the battery for 3 hours. Make sure unit is off while Battery may be charging. Turn on the depleted Not holding unit, unplug it.
  • Page 41 Format SD Card SD Card Not SD Card needs to Recognized Use a different SD be formatted. (Custer error) Card May have saved to the RO folder When you lock a file, it only saves Can’t find Check the SD Card the current Locked files RO Folder...
  • Page 42 Check remaining space on memory card and delete files if necessary Memory card may be full Reformat your memory card; if issue If Loop Recording Unable to record persists, replace with has been videos a new one enabled, memory card may be Restore to Default corrupted Settings...
  • Page 43 Make sure G-sensor is on lowest setting Need more space SD Card is full Clear some locked on SD Card files Format SD Card Restore to default settings Stops Recording SD Card may not after 1-3 looped Use a different SD be compatible files Card...
  • Page 44 Change light frequency setting to match the power supply used in your Horizontal The Light country or stripes appear Frequency setting geographical location: on images is incorrect US users should select the 60Hz option; SG/MY users should select the 50hz option This feature can only Car charging port...
  • Page 45 FCCID: 2AW5W-S1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
