  • Page 1 S1 Pro User Manual The information in this manual is subject to change without notice. www.rexingusa.com...
  • Page 2 Notice Menu Setup Operation: The menu is to be set up in non-video mode. If the device is in video mode, proceed after stopping the video recording. Memory card: A new card must be formatted to the device before use. Continuous image recording for long periods of time may produce protected files that are not subject to long-term protection (these files may not be overwritten during loop recording) and storage fragments, which need to be...
  • Page 3 Warning The battery (module or pack) must not be expose to an overheat environment such as direct sunlight or flame. Never remove, strike, or squeeze the battery or put it in fire. Stop using the battery if it is ballooned, warped, leaking, or shows any other visible signs of damage.
  • Page 4 Overview Thank you for choosing REXING! Thank you for choosing REXING! We hope you love your new products as much as we do. If you need assistance, or have any suggestions to improve it, please contact us. You can reach us via care@rexingusa.com...
  • Page 5 S1 Pro User Manual The information in this manual is subject to change without notice. www.rexingusa.com. 3M Adhesive Mount Rexing S1 Pro Dash Camera USB Computer Cable Rear Camera with Extension Cable (20ft) Cable Management Tool Free Smart Hardwire Kit...

  • Page 6: Table Of Contents

    Table of Contents Camera Overview Installation Basic Operations Mobile Connection GPS Player Product Specifications General Troubleshooting Warranty and Support...

  • Page 7: Camera Overview

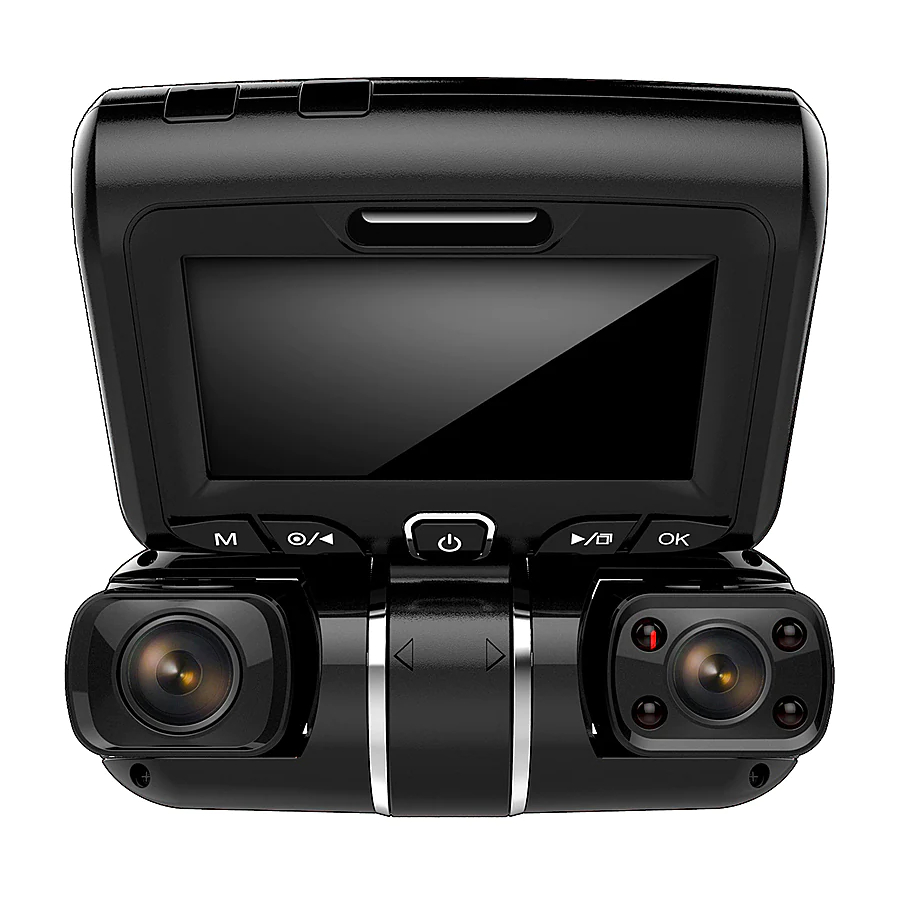

    OK Button Record/Up Button Power Cord Connection Port Power Button Rearview Camera Connection Port Down/Toggle Button Reset Pinhole Note: GPS is an optional feature, needs to connect to the included GPS Logger. The S1 Pro does not support memory expansion.
  • Page 8 Buttons and Description Buttons Description M Button In standby mode, press this button to start/stop the related menu (Menu/Mode options such as recording mode, photography mode, playback mode. Switch) In recording mode, press and hold the button for 3 second to enter picture-taking and playback interface.
  • Page 9 OK Button This button functions as a confirmation in each of the setups. In video recording, press this button to start emergency recording. Depress this button to switch Wi-Fi on/off. In photography mode or playback mode, press the button to take a picture or play back a file.

  • Page 10: Installation

    Installation Turn off the car’s engine. Secure the dashcam to a place close to the original rearview mirror. Plug the GPS module into the GPS port and secure the module to a position close to A-pillar of the car. The antenna receiver side (the side without 3M adhesive) faces the outside and the side with 3M adhesive faces down.
  • Page 11 Installation Instructions Optimum Installation Location Power Cable Wiring Location Rearview Camera Wire Routing Illustration (as shown below) Connected to rearview camera Connected to reversing light...
  • Page 12 For the rearview camera, there are two wiring options as shown in the above figure. The first part of both options is characterized with concealed wire routing against the edges of the door(s). The rearview camera can be mounted directly above the rear window inside the car. The rearview camera can be mounted directly above the car’s license plate.

  • Page 13: Basic Operations

    Basic Operations Main Interface Wifi Record Playback Parking Power Volt Settings System Setup I. Open the Setup Menu Press the Menu Button to open system menu setup. Select Settings. Press the Up/Down Button to change the option and press the OK Button to confirm. II.
  • Page 14 WDR: ON/OFF. G-SENSOR: Off/High/Moderate/Low After the device is started, it may sense shock/impact caused by a certain level of force (the higher the sensitivity setting, the smaller the force required). This function will lock the video at the time of detection and save it as a protected video.
  • Page 15 Screen Backlight: Off, 1, 3, and 5 minutes. When Off is selected, the screen remains on. Select 1/3/5 minutes. Without any operation, the screen backlight turns off automatically after a predetermined length of time, but the device will keep recording as normal. Key Tone: Off/On Language Setup:...
  • Page 16 Taking Pictures I. Taking a Picture Depress the Menu Button to switch to the picture taking mode. Press the OK Button once to take a picture. II. Picture Mode Setup When the picture taking function is in standby, press the Menu Button to access the picture taking setup menu.
  • Page 17 ISO: Auto, 100, 200, 400 Exposure Compensation: +5/3, +4/3, +1.0, +2/3, +1/3, +0.0, -1/3, -2/3, -1.0, -4/3, -5/3 Anti-Shock: Off/On Quick Preview: Off, 2s, 5s After taking a picture, time setting will be discontinued on the image, so as to allow you to determine if the picture is desirable Date Stamp: Off, Date, Date/Time.
  • Page 18 Delete: Delete a single file or all files. Note: Locked files cannot be simply deleted. Unlock the file before you need to delete it. Protection Lock: Lock and save unprotected files. A locked file cannot be overwritten. Unlock: Remove the protective feature of a protected file. Simply delete the file once it is unlocked.
  • Page 19 Parking Monitor Note: A Smart Hardwire Kit (included in the package) is required to activate the parking monitor feature. A USB cable cannot provide this function. I. Power Voltage Protection From the Power Voltage menu setup on the main menu, select a voltage (11.8-12.5V）for switching off the device when the car engine is turned off for parking.
  • Page 20 Parking Mode Wifi Record Playback Parking Monitor Super Night Scene Parking Power Volt Settings Time-Lapse video monitoring Time-Lapse Video Monitoring: A video recorded in parking mode has only an approximate size of about one sixth to one tenth that of a normal video. This enables the user to save as much video as possible.

  • Page 21: Mobile Connection

    When the device is paired to a mobile phone via Wi-Fi, it can be controlled through the Mobile App. Basic Operations: I. Download the Rexing Connect App Please go to RexingUSA website and download the app for Android or Apple iOS systems.
  • Page 22 Open the app after installation. There will be a pop-up message asking if you will allow Rexing Connect to access the your location. Click as shown in the picture: 10:44 App Store Allow Rexing Connect to use your location? Please click “OK” to allow access If you don’t allow it, you won’t...
  • Page 23 Select Wi-Fi ON/OFF on the main menu or press the OK Button to turn on the Wi-Fi of the device. Press it again to turn the Wi-Fi off. As shown below: 10:44 AP Mode Wifi SSID: E89_502664 Password: 12345678 Refresh WiFi_OFF 4K Video Resolution Wi-Fi Connect...
  • Page 24 Click the Saved button on the bottom to check the video files and pictures. You may simply click the file to play it online or download it to your mobile phone as shown in the picture: 10:44 Videos Pictures 13/09/2020 20200913165525_000049…...
  • Page 25 IV. App Overview: 10:44 12:56:20 Record/Stop Return Change View Switching to Photo Mode Videos Photos Settings Press the Record/Stop button to pause/start recording. Note: To begin a new setup, use the Settings menu shown below, press this button to pause the recording before beginning a new setup.
  • Page 26 Press the Settings button on the bottom and set up the parameters of the system menu as shown in the picture: 10:44 Settings Wi - Fi Password Audio Recording Date Stamp Loop Recording 1MIN G-sensor Sensitivity This setting determines how force is needed to trigger an automatic file lock.
  • Page 27 Click the Photo button on the bottom to review photos. Click the Change View button on the top to toggle between camera views from the front camera, cabin camera, and rearview camera. Click the button Switch to Photo Mode in the middle to take a picture in real time. Click the button Record/Stop on the top to quickly stop/start the video and audio recordings.

  • Page 28: Gps Player

    GPS Player I. Install a GPS Module Typical installation locations for the GPS module are on the center console or sun visor with the GPS module facing outward or upward and the back side of GPS module (applied with double-sided, adhesive tape) facing inward or downward so as to ensure an effective satellite signal reception as shown in the picture: Installation Instructions Power supply wiring location...
  • Page 29 II. Installation and Operation of GPS Player Unzip file and then double click to install. setup.en LUCKY PLAYER After installation you will see the icon on your desktop. LUCKY p l a y e r Double-click to use it, as shown below: LUCKY Lucky Player LUCKY...
  • Page 30 Click allow blocked content to confirm. Click Yes to display a map with GPS tracking as shown below: Security Warning Allowing content (such as script and ActiveX) may be helpful for you, but the content may be harmful to your computer. Are you sure to run this file? Click on the GPS player to load the video file with GPS tracking...

  • Page 31: Product Specifications

    Product Specifications Built-in SDRAM Built-in Speaker Built-in Display 3.0" TFT 1080P + 1080P + 1080P Video Resolution Loop Recording Support 1, 2, and 3 minutes Parking Monitor G-Sensor Video format H.264 Picture format Operating Temperature -4°F ~ 150°F Input Current DC 5V 1500mA Note: Product specifications are subject to change along with software updating.

  • Page 32: General Troubleshooting

    General Troubleshooting Trouble Possible Causes Solution Failure to • Dead battery • Plug in the charger to charge the battery. power on Automatic • The automatic shutdown • In standby mode, automatic shutdown is shutdown function is enabled. activated when no time is set. during •...

  • Page 33: Warranty And Support

    Warranty & Support Warranty The Rexing S1 Pro Dash Cam comes with a full 12-month warranty. If you register your product on our official site (https://www.rexingusa.com/support/registration), you can extend the warranty to 18 months. Support If you have any questions regarding your product, please do not hesitate to contact us at care@rexingusa.com, or call us at...
  • Page 34 FCCID: 2AW5W-S1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
