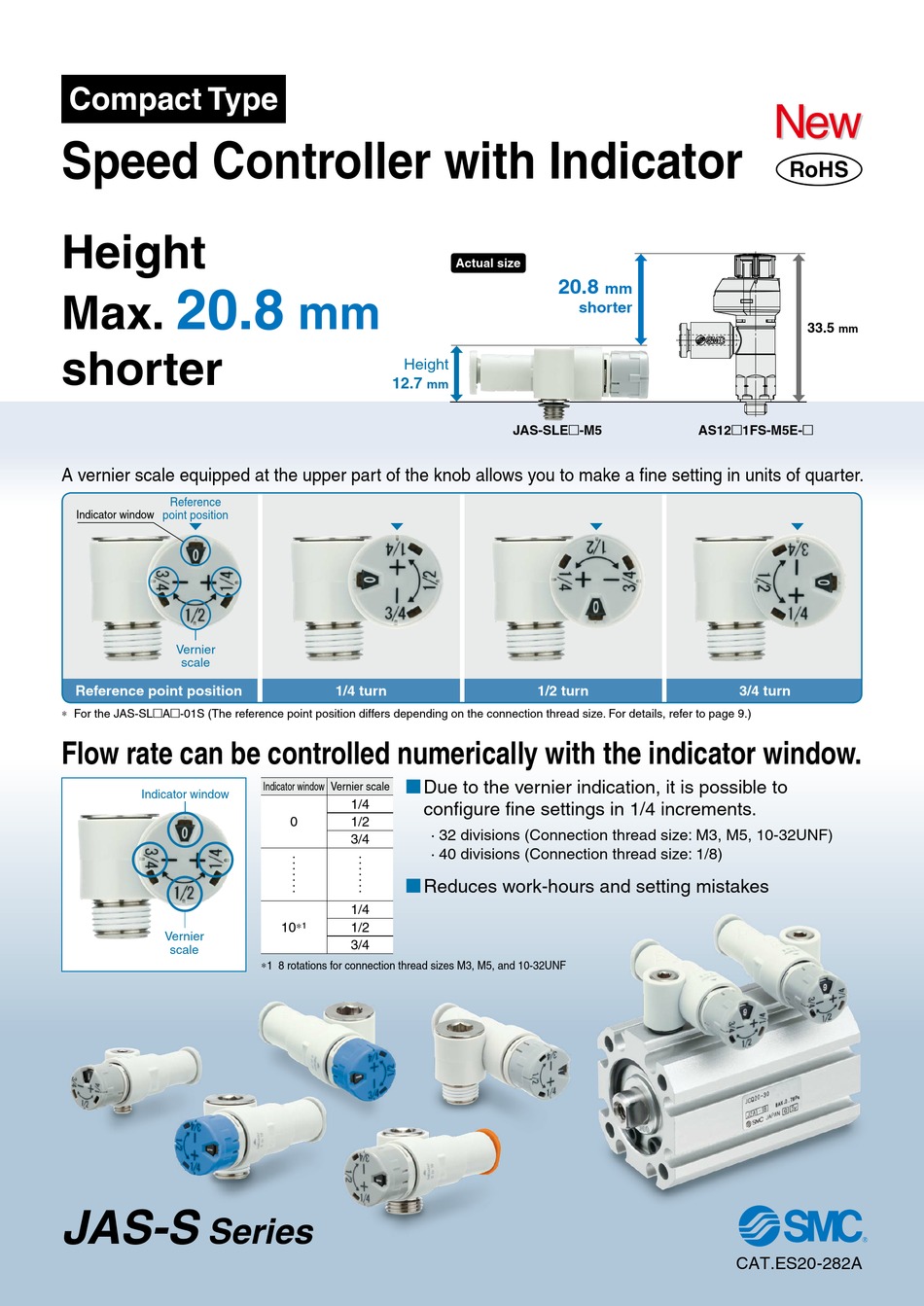

Compact Type
Speed Controller with Indicator
Height
20.8
Max.
shorter
A vernier scale equipped at the upper part of the knob allows you to make a fine setting in units of quarter.
Reference
Indicator window
point position
Vernier
scale
Reference point position
∗ For the JAS-SLmAm-01S (The reference point position differs depending on the connection thread size. For details, refer to page 9.)
Flow rate can be controlled numerically with the indicator window.
Indicator window
Vernier
scale
JAS-S
Series
mm
Height
12.7
mm
1/4 turn
M
Due to the vernier indication, it is possible to
Indicator window Vernier scale
1/4
configure fine settings in 1/4 increments.
0
1/2
· 32 divisions (Connection thread size: M3, M5, 10-32UNF)
3/4
· 40 divisions (Connection thread size: 1/8)
M
Reduces work-hours and setting mistakes
1/4
∗
10
1/2
1
3/4
∗1 8 rotations for connection thread sizes M3, M5, and 10-32UNF
Actual size
20.8
mm
shorter
JAS-SLEm-M5
1/2 turn
RoHS
33.5
mm
AS12m1FS-M5E-m
3/4 turn
CAT.ES20-282A
Advertisement
Related Manuals for SMC Networks JAS-S Series
Summary of Contents for SMC Networks JAS-S Series
- Page 1 Compact Type Speed Controller with Indicator RoHS Height Actual size 20.8 20.8 Max. shorter 33.5 shorter Height 12.7 JAS-SLEm-M5 AS12m1FS-M5E-m A vernier scale equipped at the upper part of the knob allows you to make a fine setting in units of quarter. Reference Indicator window point position...
- Page 2 Speed Controller with Indicator JAS-S Compact Type Series Mounting stud is available on the left side or the right side. Reducing protrusion of JAS-S body Installation example over rod end and head end Right side Left side A type B type Left side (B type) Right side (A type) Stud...
- Page 3 Compact Type Speed Controller with Indicator Elbow Type Push-lock Type JAS-S Series RoHS Model Control type Meter-out Meter-in Applicable tubing O.D. Model Port size Seal method Metric size Inch size 1/8" 5/32" 1/4" Appearance JAS-SLmmm-M3 M3 x 0.5 — — —...
-
Page 4: How To Order
JAS-S Series How to Order Connection thread size M3 x 0.5 M5 x 0.8 10-32UNF L E A 04 L E A With indicator Seal method Without sealant With sealant Type * Face seal type is used for the G Elbow thread type. - Page 5 JAS-S Compact Type Series Speed Controller with Indicator Flow Rate Characteristics JAS-SLmmm-M3 JAS-SLmmm-M5, U10 JAS-SLmmm-m01 Inlet pressure: 0.5 MPa Inlet pressure: 0.5 MPa Inlet pressure: 0.5 MPa 03, 04, 06 01, 23, 03, 04, 06, 07 03, 04 Number of needle rotations Number of needle rotations Number of needle rotations ∗...
- Page 6 JAS-S Series Dimensions Seal method: Gasket seal Width across flats For M3, M5, 10-32UNF Applicable tubing O.D. ø (Pipe thread) Metric Size [mm] Release button Weight Model Unlocked Locked JAS-SLmm23-M3 JAS-SLmm04-M3 M3 x 0.5 JAS-SLmm06-M3 10.4 11.0 40.6 39.5 18.6 12.9 17.4 12.7 16.2 13.3 JAS-SLmm23-M5...
- Page 7 JAS-S Compact Type Series Speed Controller with Indicator Dimensions Seal method: Face seal Width across flats For G thread Applicable tubing O.D. ø (Pipe thread) Metric Size [mm] Release button Weight Model Unlocked Locked JAS-SLmm04-G01 14.7 47.4 45.9 20.4 17.5 24.2 10.2 15.6 20.9 13.3 JAS-SLmm06-G01 10.4...
- Page 8 JAS-S Series Specific Product Precautions 1 Be sure to read this before handling the products. Refer to the back cover for safety instruc- tions. For flow control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Design Mounting Warning...
- Page 9 JAS-S Series Specific Product Precautions 2 Be sure to read this before handling the products. Refer to the back cover for safety instruc- tions. For flow control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Mounting Warning Warning...
- Page 10 JAS-S Series Specific Product Precautions 3 Be sure to read this before handling the products. Refer to the back cover for safety instruc- tions. For flow control equipment precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: https://www.smcworld.com Mounting Piping Threads with Sealant Caution...
-
Page 11: Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or Safety Instructions equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for ∗1) safety and must be followed in addition to International Standards (ISO/IEC) and other safety regulations.
