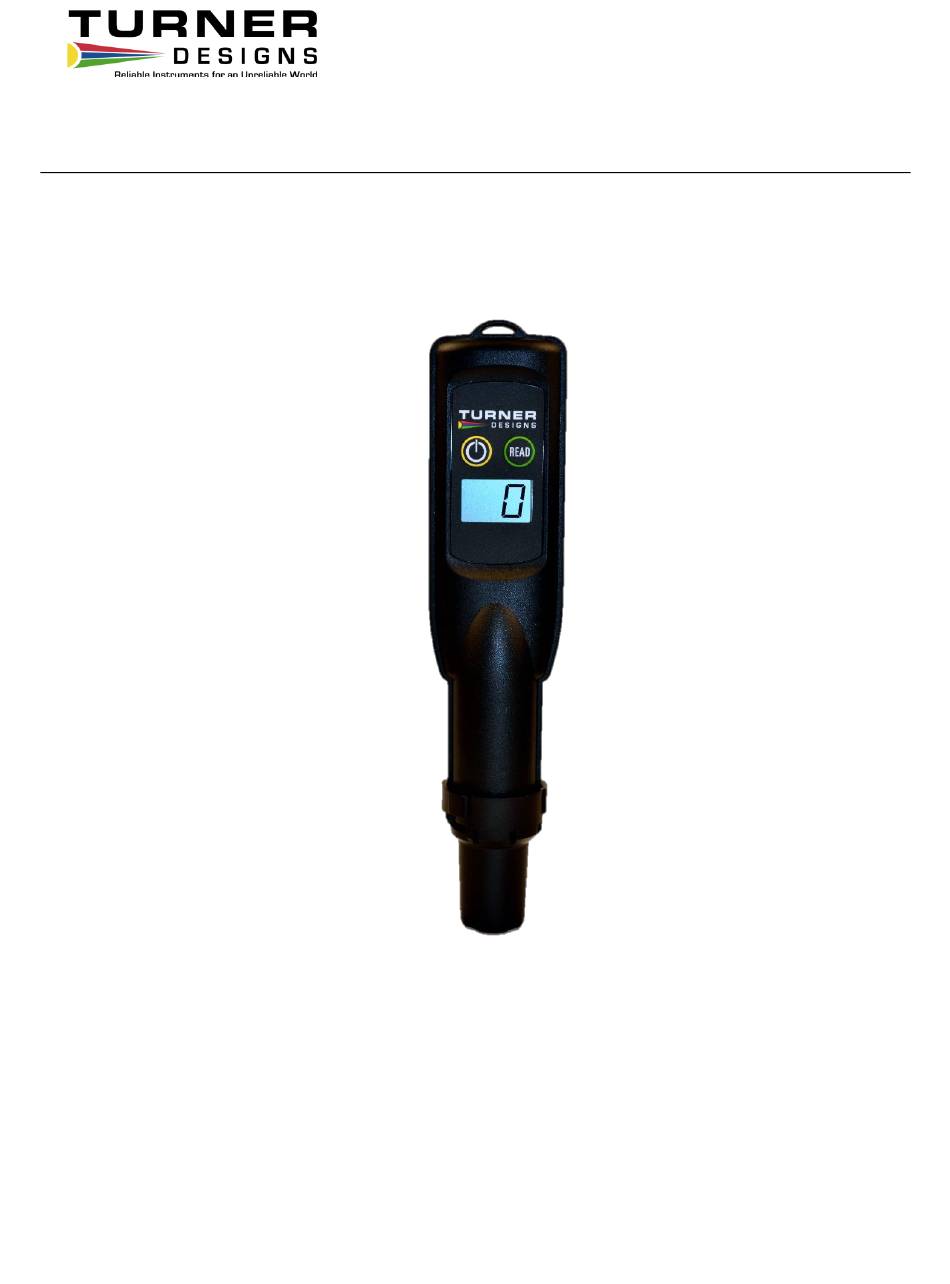

- Page 1 Little Dipper™ User’s Manual January 07, 2023 P/N: 998-2853 Revision A TURNER DESIGNS 1995 N. 1 Street. San Jose, CA 95112 Phone: (408) 749-0994 FAX: (408) 749-0998...
-
Page 2: Table Of Contents
Description Inspection and Setup General Information, Precautions & Cleaning Instrument Operation and Calibration Instrument Power Up Sample Analysis Calibration Procedure (only needed if Little Dipper fails calibration check) Warranty Terms Warranty Service Out of Warranty Service Appendixes Linear Range, Quenching and Temperature Considerations Little Dipper™... -
Page 3: Before Use
1.1 Disposal WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) DIRECTIVE Turner Designs is in the business of designing and selling products that benefit the well-being of our environment. Accordingly, we are concerned with preserving the surroundings wherever our instruments are used and happy to work with customers by complying with the WEEE Directive to reduce the environmental impact resulting from the use of our products. - Page 4 Little Dipper™ User’s Manual Rev. A...
-
Page 5: Specifications
Detector Photodiode Case Meets IP67 Standard; dustproof/waterproof Temperature 41 - 104 °F, (5 - 40 °C) Size 8.9 x 2 x 1.75 in. (22.6 x 5.1 x 4.5 cm) Weight 4.3 oz, (120 g) Little Dipper™ User’s Manual Rev. A... -
Page 6: Initial Information
The Little Dipper should NOT come into contact with any organic solvents or strong acids and bases. • There are three messages that will display during use of the Little Dipper, “td” for Turner Designs, “Lb” for Low Battery, and numerical readings from 0-199. •... -
Page 7: Instrument Operation And Calibration
2. To calibrate, press and hold the READ button while unit is off. If taking measurements with the cap, ensure cap is still on the Little Dipper while doing all calibrations. If you choose to measure without the cap, then have calibrations with the cap off. -
Page 8: Terms
4 Warranty 4.1 Terms Turner Designs warrants the Little Dipper and accessories to be free from defects in materials and workmanship under normal use and service for a period of 12 months from the date of shipment from Turner Designs, with the following restrictions: •...
