Summary of Contents for RTA Products Techni Mobili RTA-2024

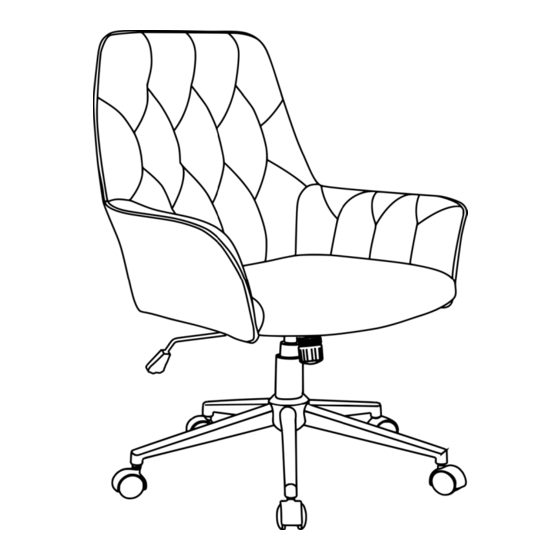

  • Page 1 MODEL RTA-2024 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.BZ-1121-1...
  • Page 2 RTA-2024 MAIN PARTS LIST Backrest Seat 5-Leg star base Mechanism Pneumatic lift Casters Left Right Covers for cylinder armrest armrest cylinder Sitting on the chair, not looking at it HARDWARE LIST PART ITEM USE FOR M6x20 Mechanism M8x35 Armrests Ø22Ø8x2mm Armrests 5mm Allen Steps 2, 4, 5...
  • Page 3 RTA-2024 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❶ ❻ Do a quick inventory to Make sure you make sure the package understand which hardware contains all the parts and will be used on each step. hardware listed in the Using the wrong size of assembly instructions.
  • Page 4 RTA-2024 ASSEMBLY STEPS STEP 1 Insert the casters F into the legs of the base C using pressure, then place the lift cylinder E in the middle of the base and cover it with H. STEP 2 Turn over the seat B and place the mechanism D with its tension knob facing towards the front, and assemble it using screws I.
  • Page 5 RTA-2024 STEP 4 Assemble the armrests G to the seat B in their respective sides with screws J and washers K, but leave the screws very loose to Hardware allow flexibility for the next step. M8x35 LEFT LEFT Washer RIGHT STEP 5 Assemble the backrest A to the armrests G with screws J and washers K, then proceed to tighten all the screws on the arms...
  • Page 6 RTA-2024 CHAIR’S FUNCTIONS • To raise or lower the chair’s height, pull UP the lever that is under the seat. The chair goes down while sitting on it, or up if you lift your body. • To make the chair tilt freely, pull the same lever OUT horizontally to unlock this function. When the chair is in the normal upright position, push the lever IN to lock again.
  • Page 7 9.Report any defects to RTA Products, LLC together with your sales receipt or other proof of purchase. If the chair is defective within the terms of the warranty, RTA Products, LLC will furnish a replacement chair (at its option) at no cost of equal or similar value and design.
  • Page 8 RTA-2024 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
