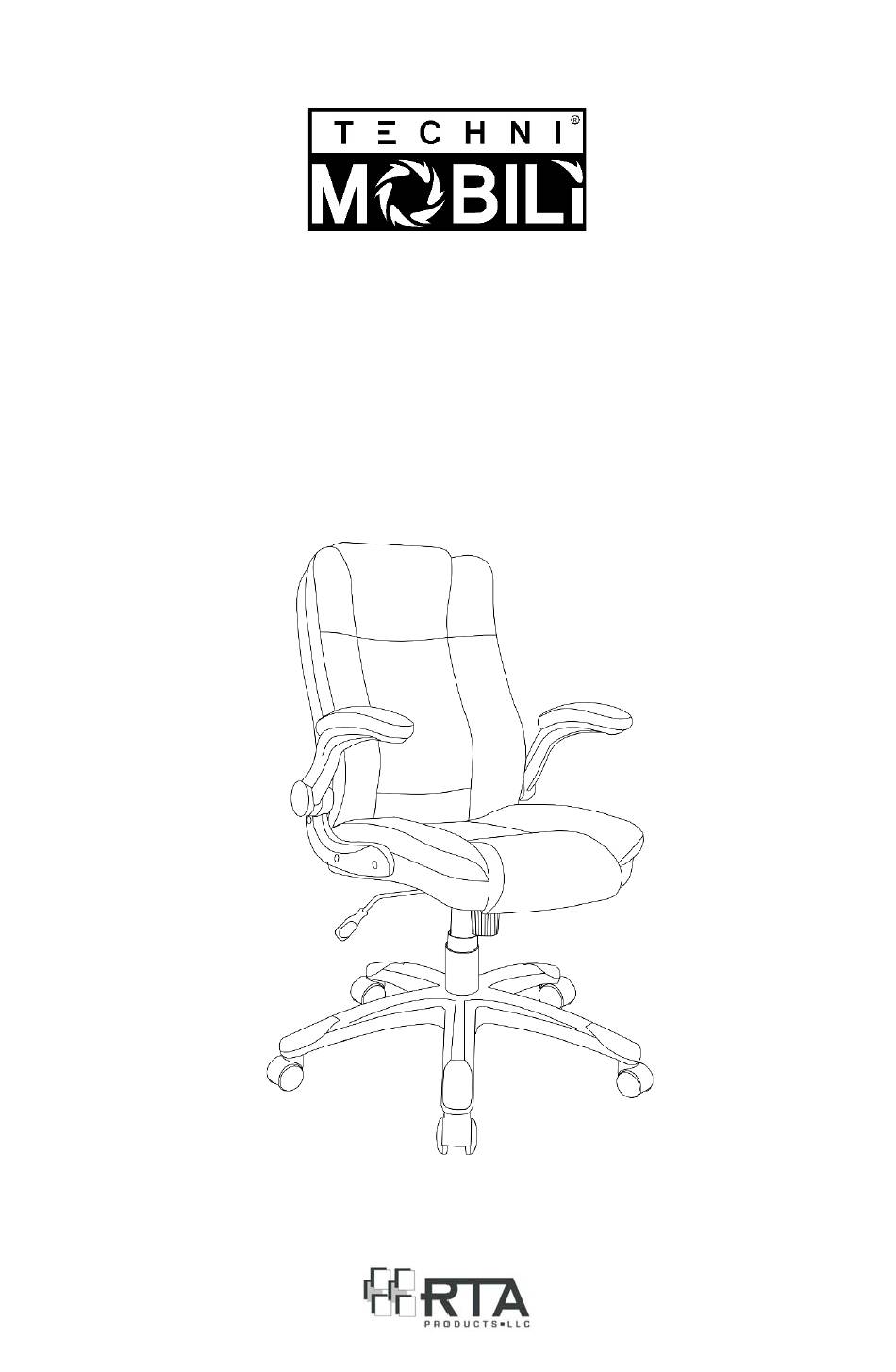

- Page 1 MODEL RTA-4902 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.062021-3...
- Page 2 RTA-4902 MAIN PARTS LIST Backrest Seat Hydraulic gas 5-Leg star Mechanism lift base Covers for Casters Left Right armrest gas lift armrest Sitting on the chair, not looking at it LIST OF HARDWARE PART ITEM USE IN 5/16x25mm Mechanism (Thicker than K) (Front holes) 5/16x20mm Mechanism...
- Page 3 RTA-4902 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS ❶ ❻ AND WARNINGS. Do a quick inventory to Make sure you make sure the package understand which hardware contains all the parts and will be used on each step. hardware listed in the Using the wrong size of assembly instructions.
- Page 4 RTA-4902 ASSEMBLY STEPS STEP 1 Insert the casters F into the legs of the base C using pressure, then place the gas lift E in the middle of the base and cover it with H. STEP 2 Place the seat B upside- For the front holes.
- Page 5 RTA-4902 STEP 4 Assemble the armrests G to the seat B in their respective sides with screws K, BUT LEAVE THE SCREWS VERY LOOSE to Hardware allow flexibility for the next step. 1/4x25mm LEFT RIGHT STEP 5 • Assemble the backrest A to the armrests G with screws K. •...
- Page 6 RTA-4902 CHAIR’S FUNCTIONS • To raise or lower the chair’s height, pull UP the lever that is under the seat. The chair goes down while sitting on it, or up if you lift your body. • To make the chair tilt freely, pull the same lever OUT horizontally to unlock this function. When the chair is in the normal upright position, push the lever IN to lock again.
- Page 7 9.Report any defects to RTA Products, LLC together with your sales receipt or other proof of purchase. If the chair is defective within the terms of the warranty, RTA Products, LLC will furnish a replacement chair (at its option) at no cost of equal or similar value and design.
- Page 8 RTA-4902 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
