6. Connectors and Indicators

6.1 LED Indicators

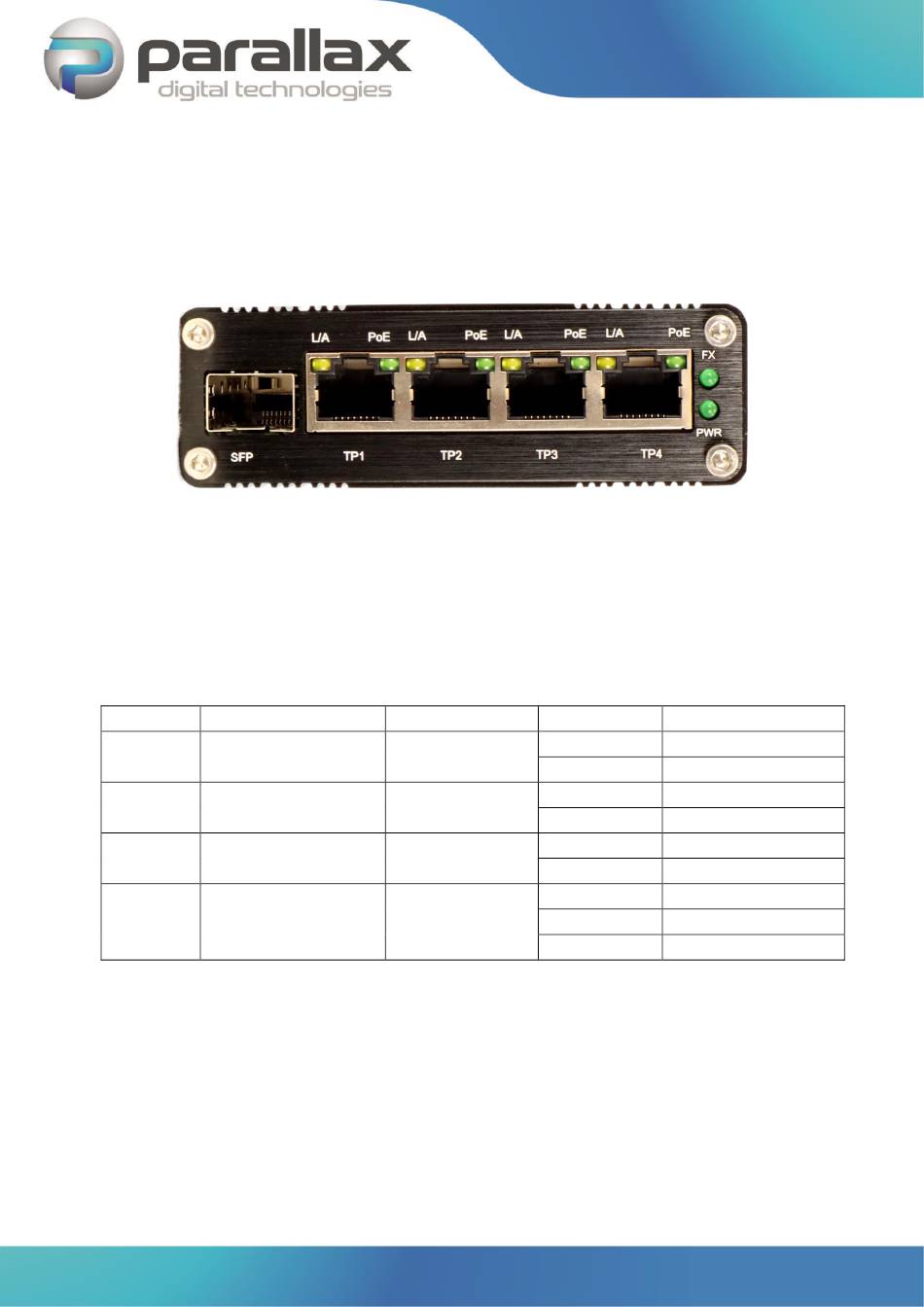

The Front Panel LEDs display the status of the switch and the associated port connections as
indicated in the table below:
LED
PWR Power Source
FX Fiber Link
L/A Link Activity
PoE Port Connection
Front Panel
Name Colour
Green
Green
Yellow
Green
State Status
OFF Power Not Avail
ON Power Available
ON SFP Connected
OFF SFP Not Connected
OFF Not Running
ON Running
OFF No Connection
Flashing PD Detected
ON PoE Established
