- Page 1 Operations Manual PDT-NSU-7008-MP-I Revision 1.0 – August 2022...
-
Page 2: Table Of Contents
Table of Contents Revision History ..............................2 Abbreviations ..............................3 Safety Information ............................4 General Safety Information ........................4 DC Power Supply ............................4 Packing List ..............................4 Product Overview ............................5 Connectors and Indicators ..........................6 LED Indicators ............................6 RJ45 Ports ...............................6 Power Supply Connector ........................7 PoE Compatibility ...........................7 PoE Power Budget ..........................7 Installation Procedures ...........................8 DIN Rail Installation ..........................8... -
Page 3: Revision History
1. Revision History Date Comments Checked Date 09/03/2023 Initial Release 09/03/2023... -
Page 4: Abbreviations
2. Abbreviations Abbreviation Description Access Point Copper Clad Aluminium Direct Current IEEE Institute of Electrical and Electronic Engineers Internet Protocol MTBF Mean Time Between Failures Power Device Power over Ethernet Power Supply Unit... -
Page 5: Safety Information
Any damaged items should be returned to Parallax Digital Technologies Ltd for safety checks. Parallax Digital Technologies accepts no responsibility for any injury or loss caused by unsafe or inadequate working practices, or for work carried out by an unauthorised third party. -
Page 6: Product Overview

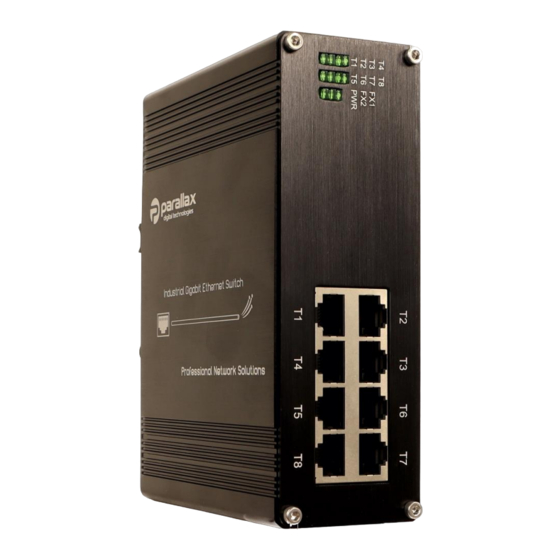

5. Product Overview The PDT-NSU-0008-MP-I is an Unmanaged Ethernet PoE+ switch, providing 8 x 10/100 PoE+ RJ45 for connectivity, designed to directly connect to devices such as IP Cameras, Wireless APs, IP Telephones etc. This model operates from a nominal +48VDC power supply but can utilize supplies in the range +48-57VDC. -
Page 7: Connectors And Indicators
6. Connectors and Indicators Front Panel 6.1 LED Indicators The Front Panel LEDs display the status of the switch and the associated port connections as indicated in the table below: Name Colour State Status Unit Power Off Power Green Unit Power On No Connection T1-8 Link Activity... -
Page 8: Power Supply Connector
6.3 Power Supply Connector The device is designed to be supplied by a +48VDC power supply, but can operate in the range +48- 57VDC. Power is supplied via a 6-pin terminal block connector with the following pinout Group Input PWR 1 +48-57VDC PWR 2 +48-57VDC... -
Page 9: Installation Procedures
7. Installation Procedures 7.1 DIN Rail Installation Attach the DIN Rail Bracket (if not fitted) to Clip the upper edge of the bracket onto the the switch case using the screws supplied DIN Rail and push to latch the bottom strip 7.2 Wall Mount Installation Attach the Wall Mount Bracket (if not fitted) Mount the switch to the required surface... -
Page 10: Connection And Setup
Please inspect the unit to ensure that there is no damage to the external casing which could cause a malfunction of the device or cause a safety critical fault. Any damaged units should be returned to Parallax Digital Technologies for inspection and testing. -
Page 11: Hardware Specification
10. Hardware Specification ETHERNET Standards IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus Forwarding and Filtering Rate 14,880pps (10Mbps) 148,800pps (100Mbps) 1,488,000pps (1000Mbps) - Page 12 CERTIFICATION Electrical Safety EN 62368-1:2020+A11:2020 Emissions EN 55032:2015+A1:2020 Radiated Immunity EN 55035:2017+A1:2020 Harmonic Emissions EN 61000-3-2:2014 Fluctuations and Flicker EN 61000-3-3:2013 Electro-Static Discharge EN 61000-4-2:2009 Electromagnetic Field Immunity EN 61000-4-3:2010 Electrical Fast-Transients EN 61000-4-4:2012 Surge EN 61000-4-5:2014+A1:2017 Conducted Immunity EN 61000-4-6:2014 Power Frequency Magnetic Field EN 61000-4-8:2010 RoHS...
