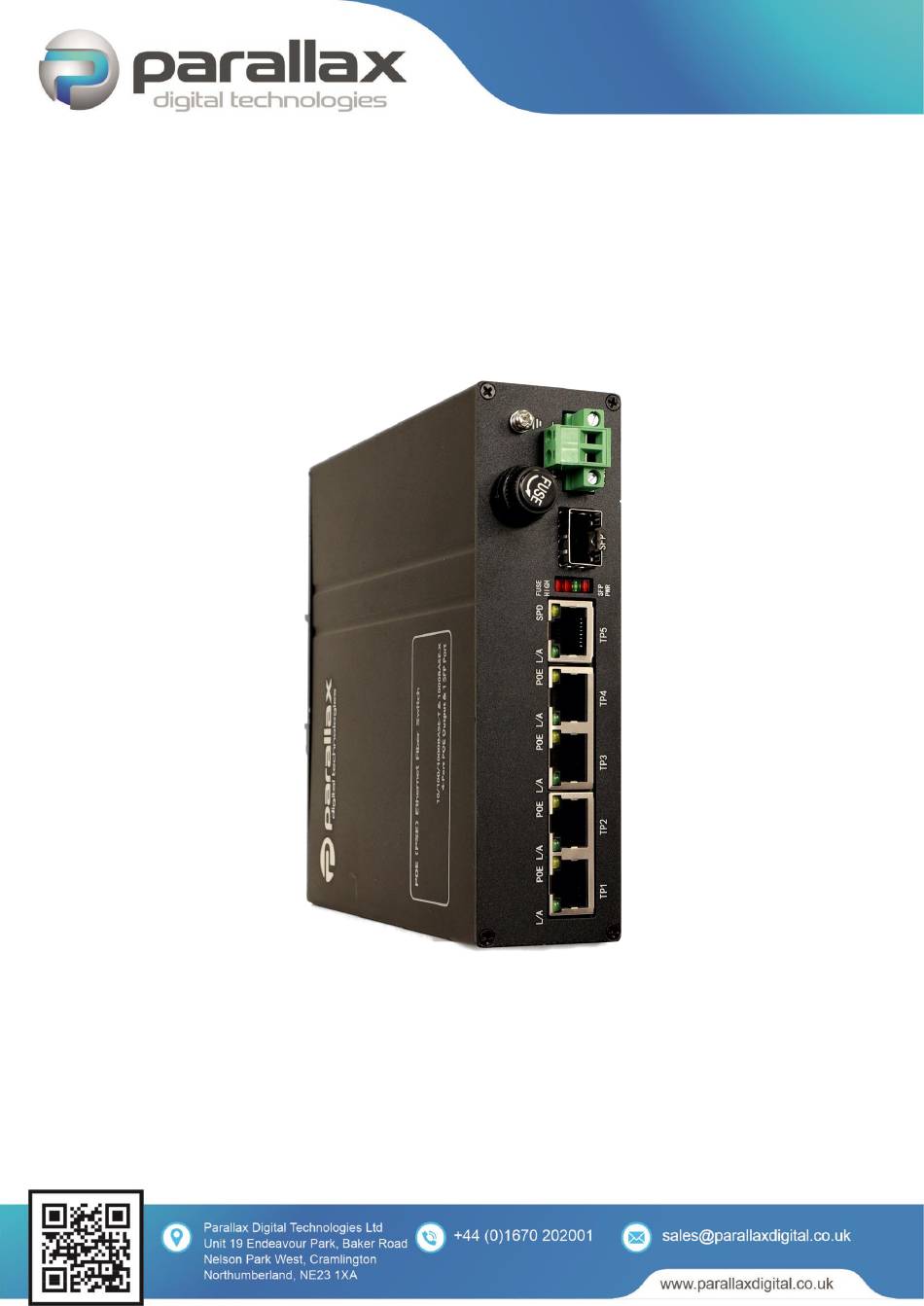

- Page 1 Operations Manual PDT-NSU-7105-MP-SF-I Revision 1.0 – March 2023...
-
Page 2: Table Of Contents
Table of Contents Revision History ............................2 Abbreviations............................3 Safety Information ........................... 4 General Safety Information ......................4 DC Power Supply ..........................4 Fibre-Optic Ports ..........................4 Packing List .............................. 5 Product Overview ............................ 5 Connectors and Indicators ........................6 LED Indicators .......................... -
Page 3: Revision History
1. Revision History Date Comments Checked Date 14/03/2023 Initial Release 14/03/2023... -
Page 4: Abbreviations
2. Abbreviations Abbreviation Description Access Point Copper Clad Aluminium Direct Current IEEE Institute of Electrical and Electronic Engineers Internet Protocol MTBF Mean Time Between Failures Power Device Power over Ethernet Power Supply Unit... -
Page 5: Safety Information
Any damaged items should be returned to Parallax Digital Technologies Ltd for safety checks. Parallax Digital Technologies accepts no responsibility for any injury or loss caused by unsafe or inadequate working practices, or for work carried out by an unauthorised third party. -
Page 6: Packing List

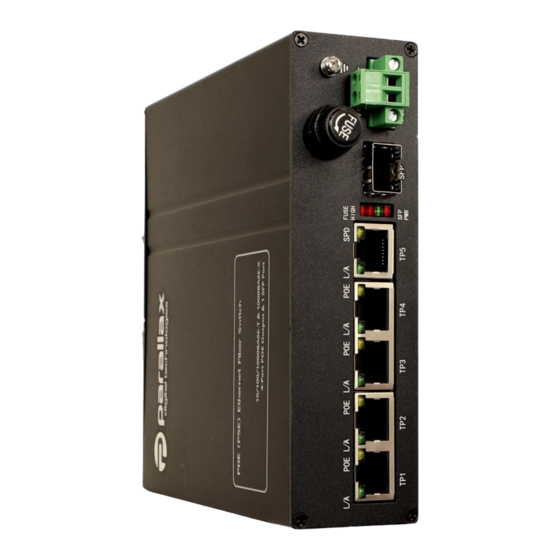

• Declaration of Conformity (May be electronically supplied) 5. Product Overview The PDT-NSU-7105-MP-SF-I is a Small Form Factor Industrial PoE Switch, supporting 4 x 10/100/1000 BASE-T PoE+ RJ45 Ports, 1 x 10/100/1000 BASE-T Port, and 1 x 100/1000 BASE-X auto-detecting SFP Port, to allow connectivity using 1 or 2 core, Single or Multi-Mode fiber. -
Page 7: Connectors And Indicators
6. Connectors and Indicators Front Panel 6.1 LED Indicators The Front Panel LEDs display the status of the switch and the associated port connections as indicated in the table below: Name Colour State Status Power Not Avail Power Source Power Available Power over No Connection Green... -
Page 8: Rj45 Ports
6.5 PoE Output Model 802.3af 802.3at 802.3bt PDT-NSU-7105-MP-SF-I ● ● 6.6 PoE Budget The total PoE Power Budget is shown in the following table: Supply Voltage +12-48VDC... -
Page 9: Installation Procedures
7. Installation Procedures 7.1 DIN Rail Installation Attach the DIN Rail Bracket (if not fitted) to Clip the upper edge of the bracket onto the the switch case using the screws supplied DIN Rail and push to latch the bottom strip 7.2 Wall Mount Installation Attach the Wall Mount Bracket (if not fitted) Mount the switch to the required surface... -
Page 10: Connection And Setup
Please inspect the unit to ensure that there is no damage to the external casing which could cause a malfunction of the device or cause a safety critical fault. Any damaged units should be returned to Parallax Digital Technologies for inspection and testing. -
Page 11: Physical Dimensions
9. Physical Dimensions... -
Page 12: Hardware Specification
10. Hardware Specification ETHERNET Standards IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Powe over Ethernet Plus Forwarding and Filtering Rate 14,880pps (10Mbps) 148,800pps (100Mbps) 1,488,000pps (1000Mbps) Packet Buffer 1Mbits Packet Length 10KB MAC Address Table... - Page 13 CERTIFICATION Electrical Safety EN 62368-1:2020+A11:2020 Emissions EN 55032:2015+A1:2020 Radiated Immunity EN 55035:2017+A1:2020 Harmonic Emissions EN 61000-3-2:2014 Fluctuations and Flicker EN 61000-3-3:2013 Electro-Static Discharge EN 61000-4-2:2009 Electromagnetic Field Immunity EN 61000-4-3:2010 Electrical Fast-Transients EN 61000-4-4:2012 Surge EN 61000-4-5:2014+A1:2017 Conducted Immunity EN 61000-4-6:2014 Power Frequency Magnetic Field EN 61000-4-8:2010 RoHS...
