4. Packing List
The following items are included in the shipping carton:
• 1 x PDT-NSU-7104-MP-SF-I Unmanaged Ethernet Switch
• 1 x DIN Rail Mounting Kit (Fitted)
• 1 x Wall Mounting Kit
• Operation & Maintenance Manual (May be electronically supplied)
• Declaration of Conformity (May be electronically supplied)
5. Product Overview
The PDT-NSU-7104-MP-SF-I is a Small Form Factor Industrial Unmanaged Network Switch,
supporting 4 x 10/100/1000 BASE-T RJ45 Ports, and 1 x 100/1000 BASE-FX SFP Port, and the 4 x
RJ45 Ports are all PoE+ capable (802.3at).
This model can operate on input voltages from +12-48VDC, and the device has a voltage boosting
circuit to allow +48VDC to be supplied on the PoE output lines, even with a +12VDC supply
voltage.
The device is designed for use in harsh industrial environments, and incorporating a rugged
aluminium housing, it can be operated across a wide temperature range (-40°C to +80°C) making
it suitable for most conditions.

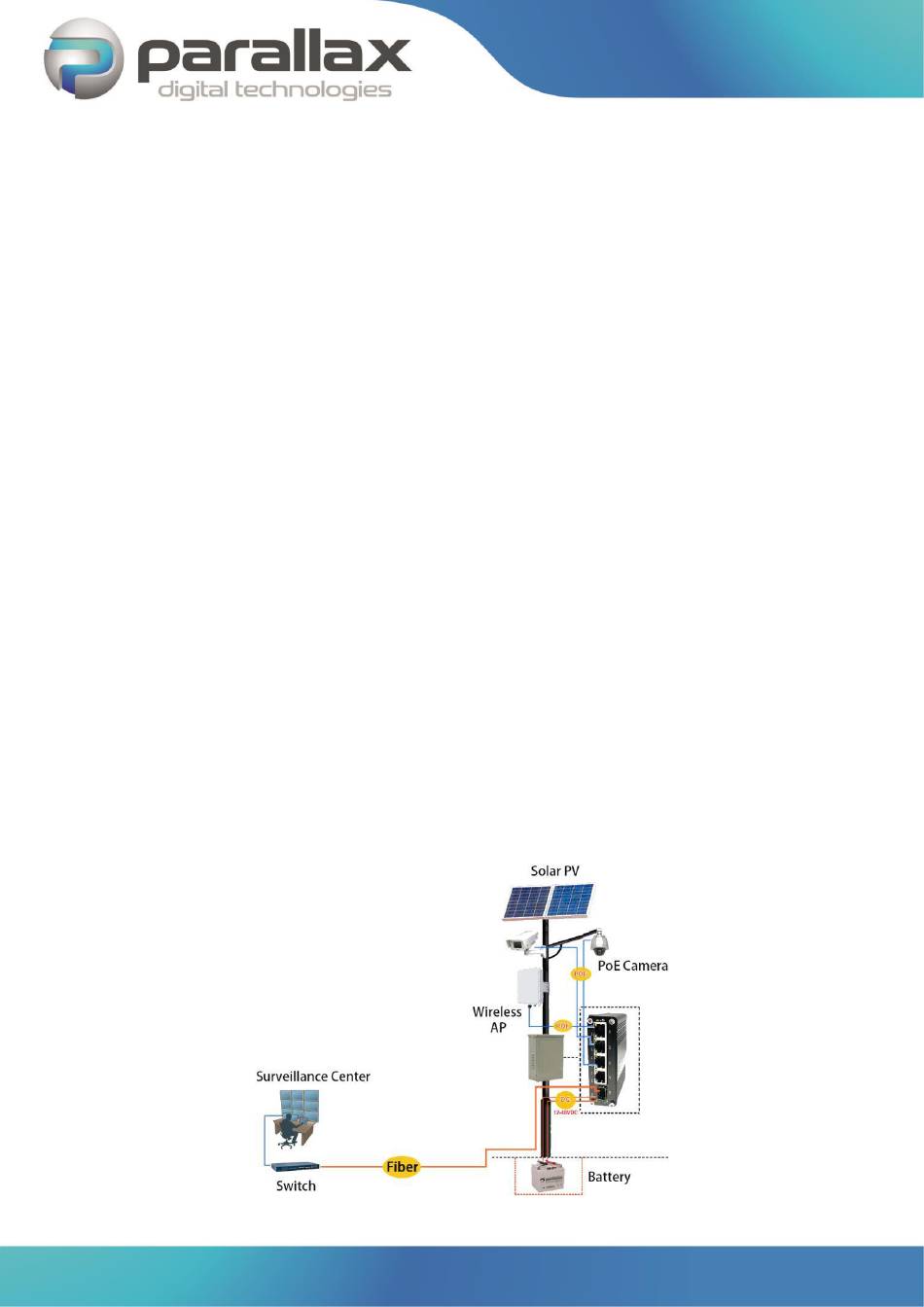

A typical application setup can be seen in the following diagram:
