6. Connectors and Indicators
6.1 LED Indicators

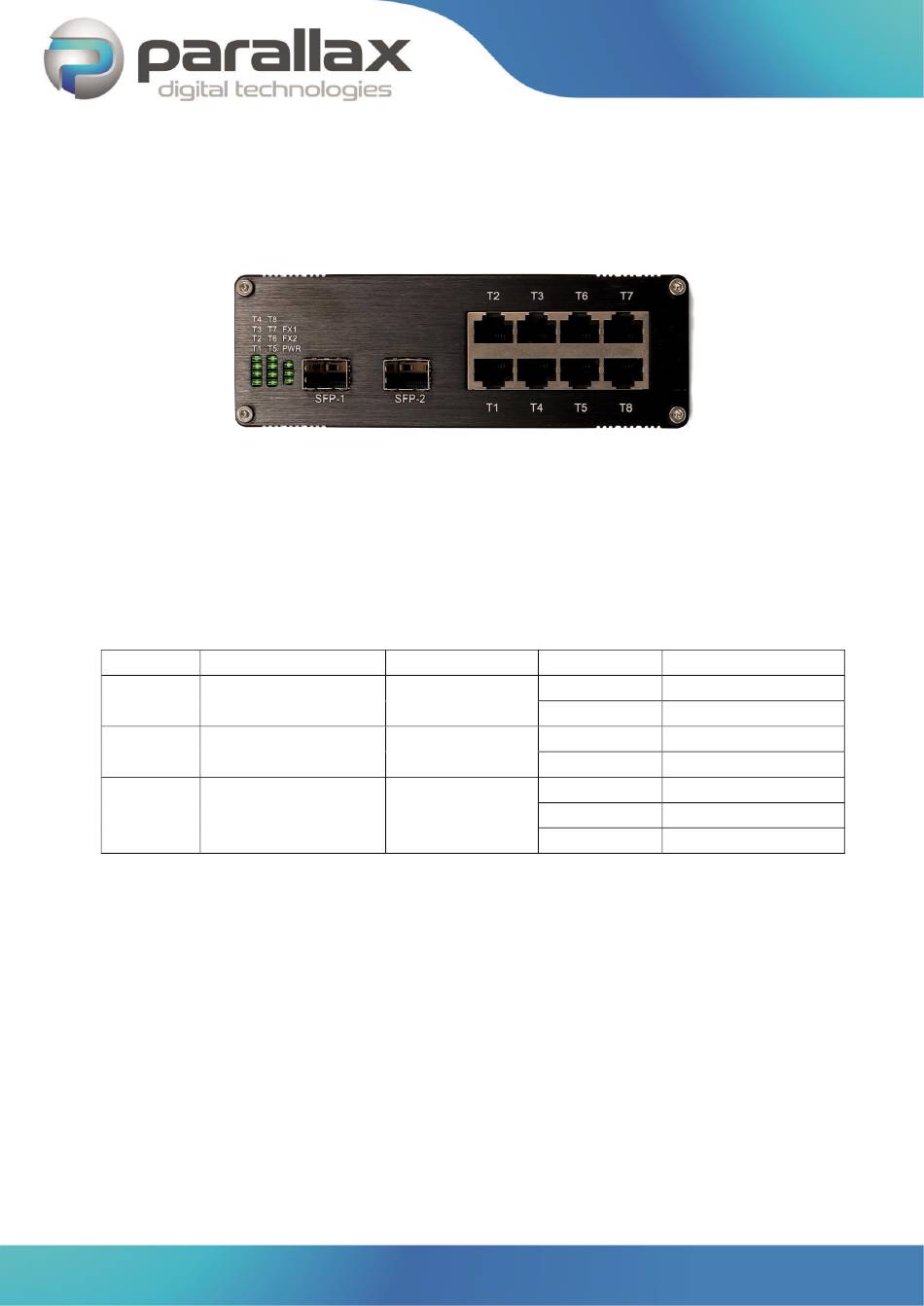

The Front Panel LEDs display the status of the switch and the associated port connections as
indicated in the table below:
LED
PWR
Power Source
FX1/2
Fiber Link
T1-8
Link Activity
Front Panel
Name
Colour
Green
Green
Green
State
Status
OFF
Power Not Avail
ON
Power Available
OFF
SFP Not Connected
ON
SFP Connected
OFF
No Connection
ON
Port Connected
Flashing
Data Transfer
