Summary of Contents for Parallax PDT-PEX-7205-MP-SF-I

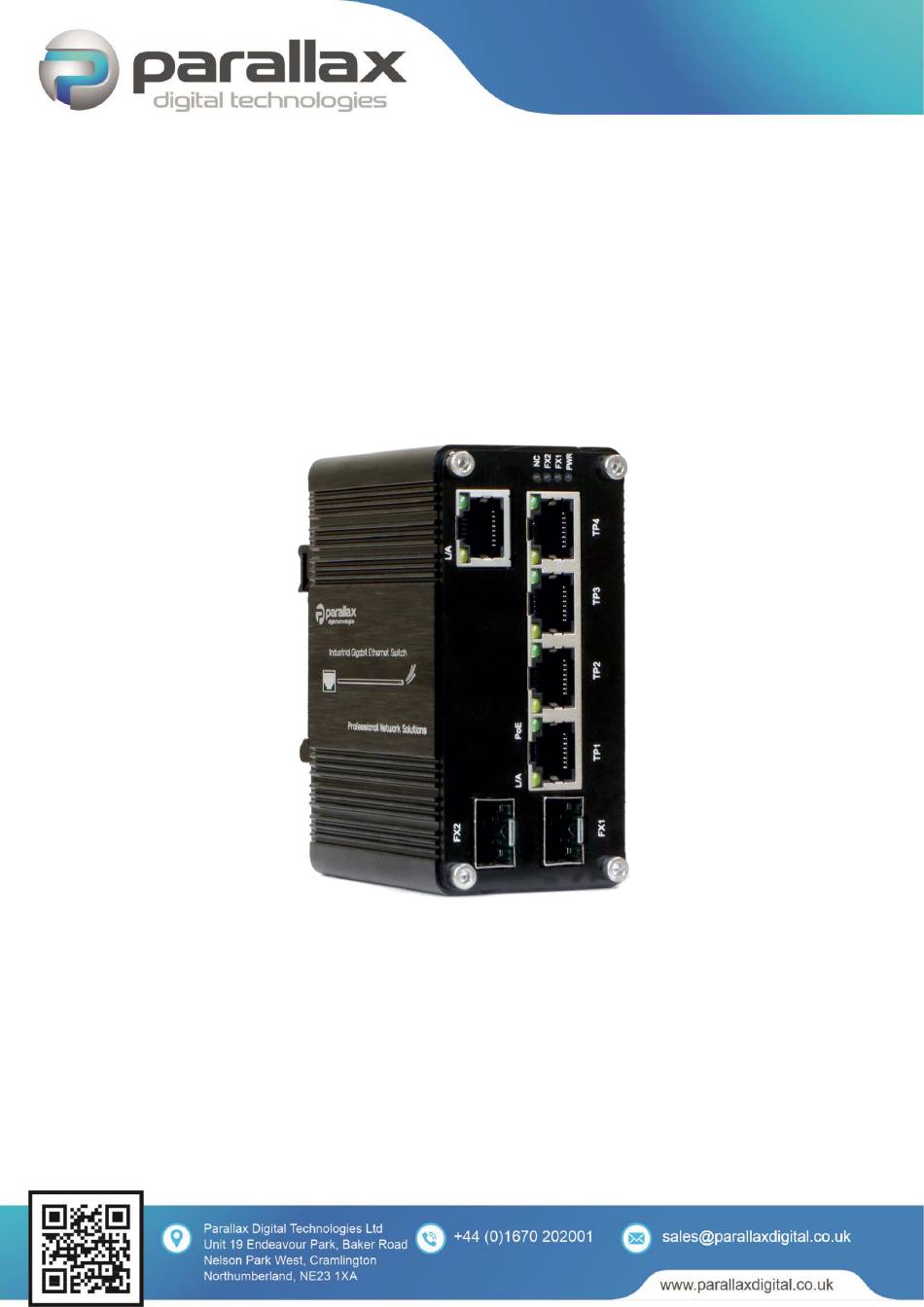

- Page 1 Operations Manual PDT-PEX-7205-MP-SF-I Revision 1.0 – March 2024...
-
Page 2: Table Of Contents
Table of Contents Revision History .............................2 Abbreviations ..............................3 Safety Information ............................4 General Safety Information ........................4 DC Power Supply ...........................4 Packing List ..............................4 Product Overview ............................5 Connectors and Indicators ..........................6 LED Indicators ............................6 RJ45 Ports ..............................6 6.3 SFP Ports ..............................7 6.4 Power Supply Connector ..........................7 Installation Procedures ..........................8 DIN Rail Installation ..........................8 Connection and Setup ............................8... -
Page 3: Revision History
1. Revision History Date Comments Checked Date 26/03/2024 Initial Release 26/03/2024... -
Page 4: Abbreviations
2. Abbreviations Abbreviation Description Access Point Copper-Clad Aluminium Direct Current IEEE Institute of Electrical and Electronic Engineers Internet Protocol MTBF Mean Time Between Failures Power Device Power Supply Unit... -
Page 5: Safety Information
Any damaged items should be returned to Parallax Digital Technologies Ltd for safety checks. Parallax Digital Technologies accepts no responsibility for any injury or loss caused by unsafe or inadequate working practices, or for work carried out by an unauthorised third party. -
Page 6: Product Overview

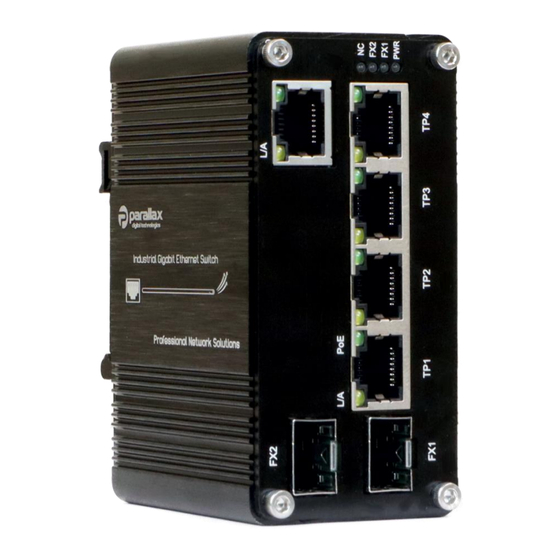

5. Product Overview The PDT-PEX-7205-MP-SF-I is a hardened Gigabit Ethernet PoE Extender/ Unmanaged Switch which facilitates connectivity for IEEE 802.3 af/at devices, such as cameras, access points, and other PoE devices, up to a range of 100m from the device, and in locations where there is no power source available. -
Page 7: Connectors And Indicators
6. Connectors and Indicators Front Panel 6.1 LED Indicators The Front Panel LEDs display the status of the switch and the associated port connections as indicated in the table below: Name Colour State Status Unit Power Off Power Green Unit Power On No Llink Link Activity Yellow... -
Page 8: Sfp Ports
6.3 SFP Ports The Front Panel has 2 SFP Ports, labelled FX1 and FX2, and all are capable of Full/Half Duplex Modes, and Auto-MDI/MDIX functionality; each can support single or dual core, single-mode or multi-mode fiber. 6.4 Power Supply Connector The device is designed to be supplied directly by a PoE++ power feed, but it can also be powered by a dual redundant DC power connector, from a +48VDC power supply but can operate in the range +48-57VDC. -
Page 9: Installation Procedures
Please inspect the unit to ensure that there is no damage to the external casing which could cause a malfunction of the device or cause a safety critical fault. Any damaged units should be returned to Parallax Digital Technologies for inspection and testing. -
Page 10: Rj45 Connections
8.2 RJ45 Connections Ensure all required RJ45 Ports are connected correctly using CAT5e cable or better to the client devices. The source data feed should be connected to the PoE IN Ethernet Port, and the target end device should be connected to the PoE+ OUT Port. Devices may be cascaded to extend the range of the PoE supply, but only up to a maximum of 3 devices, and the overall Power Budget for the first PoE Extender should not be exceeded and allowances should be made for voltage drop and end device efficiency in your power budget calculations. -
Page 11: Hardware Specification
10. Hardware Specification ETHERNET Standards IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus Forwarding and Filtering Rate 14,880pps (10Mbps) 148,800pps (100Mbps) - Page 12 INDICATORS Power Status Link Activity PoE Power Output Status FX1/2 Fiber Status FIBER CABLES 1000 BASE-SX 50/125um or 62.5/125um - 220/55/2000m 1000 BASE-LX 9/125um SM 2-120km SFP Modules 100 BASE-FX 50/125um or 62.5/125um MM up to 2km SFP 9/125um SM 20-120km SFP Modules CERTIFICATION Electrical Safety EN 62368-1:2020+A11:2020...
