6. Connectors and Indicators
6.1 LED Indicators

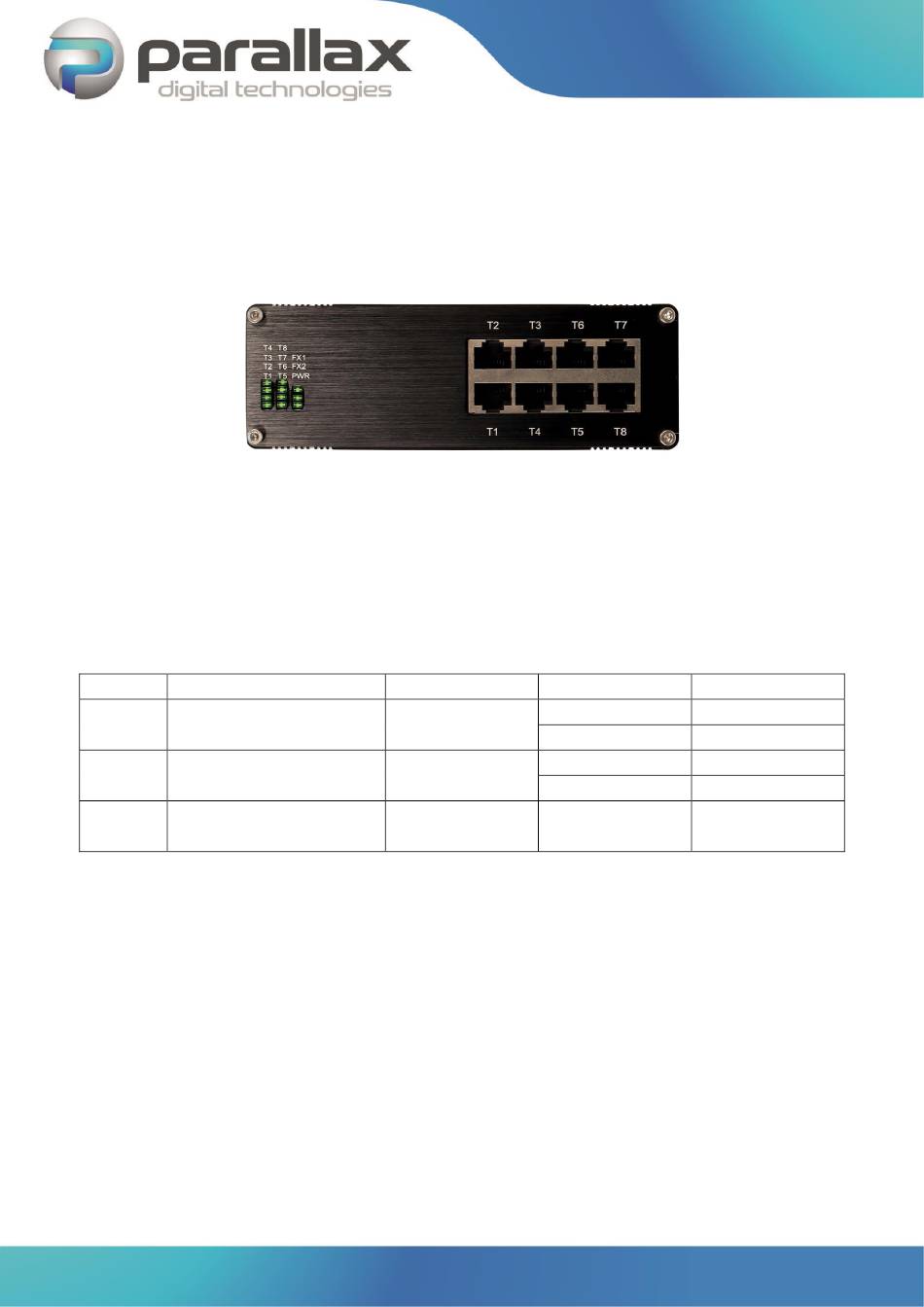

The Front Panel LEDs display the status of the switch and the associated port connections as
indicated in the table below:
LED
Name
PWR
Power
T1-8
Link Activity
FX1/2
Not Used
6.2 RJ45 Ports
The Front Panel has 8 RJ45 Ports and all are PoE+ compatible, with each port capable of supplying
30W each.
Front Panel
Colour
Green
Green
Flashing
Green
State
Status
OFF
Unit Power Off
ON
Unit Power On
OFF
No Connection
Connection
N/A
N/A
