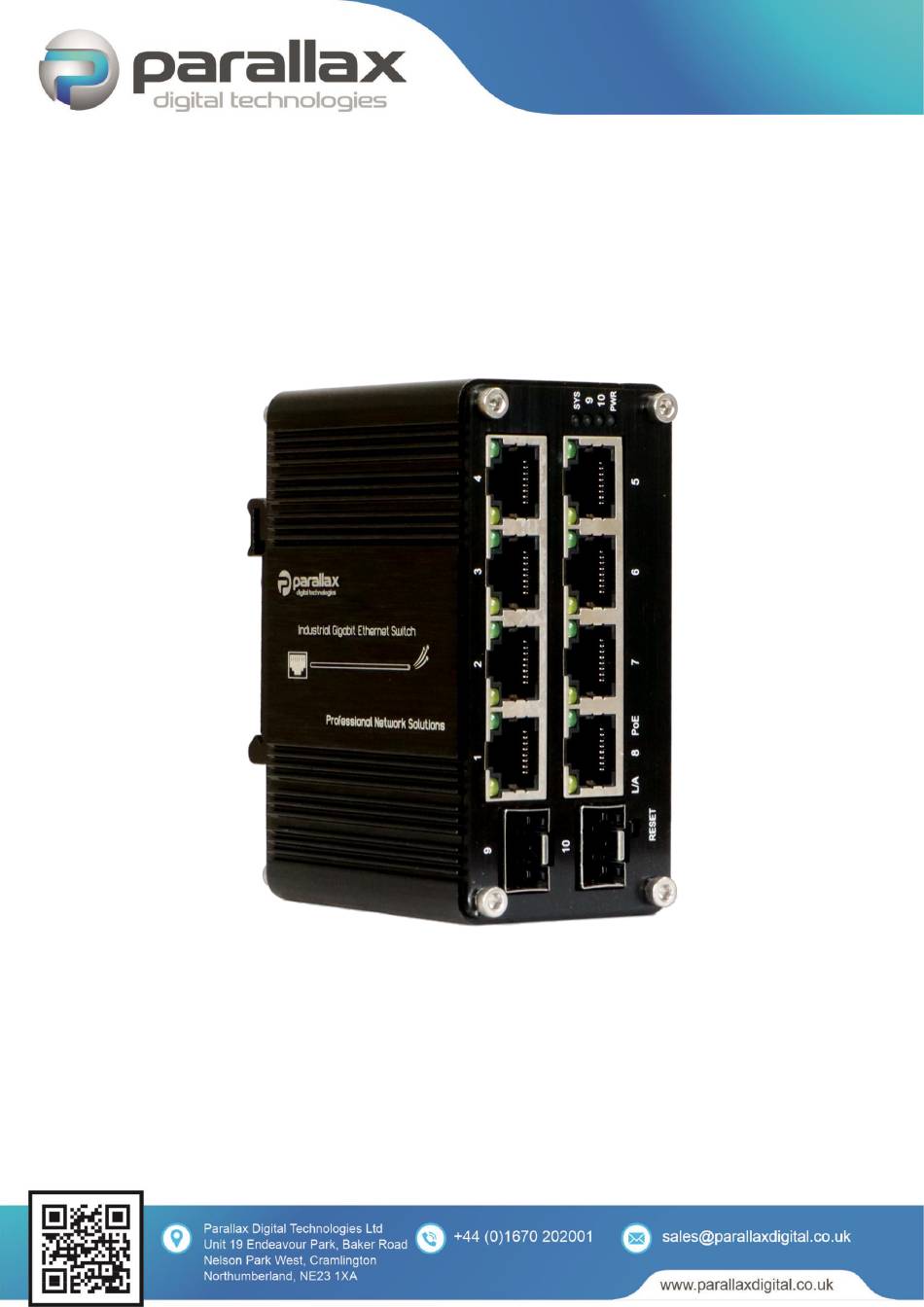

- Page 1 Operations Manual PDT-NSM-7208-MP-SF-I Revision 1.0 – March 2024...
- Page 2 Table of Contents Revision History .............................2 Abbreviations ..............................3 Safety Information ............................4 3.1 General Safety Information .........................4 3.2 DC Power Supply ............................4 Packing List ..............................4 Product Overview ............................5 Connectors and Indicators ..........................6 6.1 LED Indicators ..............................6 6.2 RJ45 Ports ..............................6 6.3 SFP Ports ..............................7 6.4 Power Supply Connector ..........................7 6.5 PoE Compatibility ............................7 6.6 Reset Button ..............................7...
- Page 3 1. Revision History Date Comments Checked Date 07/03/2024 Initial Release 07/03/2024...
- Page 4 2. Abbreviations Abbreviation Description Access Point Copper Clad Aluminium Direct Current Energy Efficient Ethernet IEEE Institute of Electrical and Electronic Engineers Internet Protocol MTBF Mean Time Between Failures Power Device Power over Ethernet Power Supply Unit...
- Page 5 Any damaged items should be returned to Parallax Digital Technologies Ltd for safety checks. Parallax Digital Technologies accepts no responsibility for any injury or loss caused by unsafe or inadequate working practices, or for work carried out by an unauthorised third party.
- Page 6 5. Product Overview The PDT-NSM-7208-MP-SF-I is a Small Form Factor Industrial Managed PoE Switch, supporting 8 x 10/100/1000 BASE-T PoE+ RJ45 Ports, 2 x 100/1000 BASE-X auto-detecting SFP Port, to allow fiber connectivity using 1 or 2 core, Single or Multi-Mode fiber.
- Page 7 6. Connectors and Indicators Front Panel 6.1 LED Indicators The Front Panel LEDs display the status of the switch and the associated port connections as indicated in the table below: Name Colour State Status Unit Power Off Power Green Unit Power On No Connection Link Activity Green...
- Page 8 IEEE 802.3at IEEE 802.3bt ● ● PDT-NSM-7208-MP-SF-I The PoE output for this model is compatible with PoE and PoE+ Standards, as can be seen in the table above. 6.6 Reset Button The device can be reset back to factory default configuration settings using the Reset Button.
- Page 9 Please inspect the unit to ensure that there is no damage to the external casing which could cause a malfunction of the device or cause a safety critical fault. Any damaged units should be returned to Parallax Digital Technologies for inspection and testing.
- Page 10 8.3 SFP Connections Ensure all required Fiber Ports are connected correctly using a compatible 1Gbps SFP Module and ensure the LC connector of the patch cord is connected to the LC port on the SFP module. 8.4 Power Up The Unit will automatically power up as soon as DC power is applied to the device. The Power Light will be illuminated and after approximately 1 second, all of the other LEDs will flash on and off to complete the initialization sequence.
- Page 11 10. Hardware Specification ETHERNET Standards IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus Forwarding and Filtering Rate 14,880pps (10Mbps) 148,800pps (100Mbps) 1,488,000pps (1000Mbps) Packet Buffer 1 Mb Packet Length 10KB...
- Page 12 CERTIFICATION Electrical Safety EN 62368-1:2020+A11:2020 Emissions EN 55032:2015+A1:2020 Radiated Immunity EN 55035:2017+A1:2020 Harmonic Emissions EN 61000-3-2:2014 Fluctuations and Flicker EN 61000-3-3:2013 Electro-Static Discharge EN 61000-4-2:2009 Electromagnetic Field Immunity EN 61000-4-3:2010 Electrical Fast-Transients EN 61000-4-4:2012 Surge EN 61000-4-5:2014+A1:2017 Conducted Immunity EN 61000-4-6:2014 Power Frequency Magnetic Field EN 61000-4-8:2010 RoHS...
