Parallax ATS 5070 FI Operator's Manual

MOUNTING LOCATION
Qualified service personnel should install the ATS 5070 series
meeting all applicable codes and standards.
The ATS 5070 series may be mounted in any position, leaving room for
routing shoreline, generator and load conductors. To minimize voltage
drop in the wiring the transfer switch should be located as close to the
generator and shoreline cord entrance as practical.
DO NOT mount the ATS 5070 series in the generator compartment.
The ATS 5070 series is not ignition protected, and therefore should not
be mounted in the same compartment as batteries or flammable materials
such as gasoline. It may be mounted in the cabin or living area or a
basement compartment, but is not suitable for outside locations.
SPECIFICATIONS
**Electrical rating: 120/240 volts AC 60 HZ @ 50amperes.
Maximum generator: 12KW
Enclosure: UL Type 1 16 GA Steel
Listed for US and Canadian applications.
**Note: L1 and L2 rated 35 amperes per leg with 70 ampere neutral when L1 and
L2 are in phase. (Optional jumpers must be installed).
Model Dimensions
ATS 5070 8"L x 8"W x 4.75" D
ATS 5070 FI 10.25"L x 8.25"W x 5.25" D
ATS 5070 MB 11.25"L x 8.25"W x 5.25"D
Not ignition protected.
Specifications subject to change without prior notice.
WARRANTY STATEMENT
Parallax warrants each ATS 5070 model to be free from defects in materials and
workmanship under normal use and service and limits the remedies to repair or
replacement. This warranty extends for two years from the date of purchase and
only valid to the original owner and within the continental limits of the United
States and Canada. If a problem should occur within the first 24 months of
purchase, please contact a dealer that handles warranty service on your
Recreational Vehicle.
You may download the entire Parallax Warranty Policy at:
http://www.parallaxpower.com/warranty_policy
No user serviceable parts inside. This warranty does not cover damage due to
improper installation, abuse or accidents.
Weight
7.5 lbs.
10.5 lbs.
9.5 lbs.
425 Sycamore St. Anderson, IN 46016
Phone: 800-443-4859 Fax: 765-608-5235
For a special offer concerning
Extended Warranty Coverage,
Visit our website at

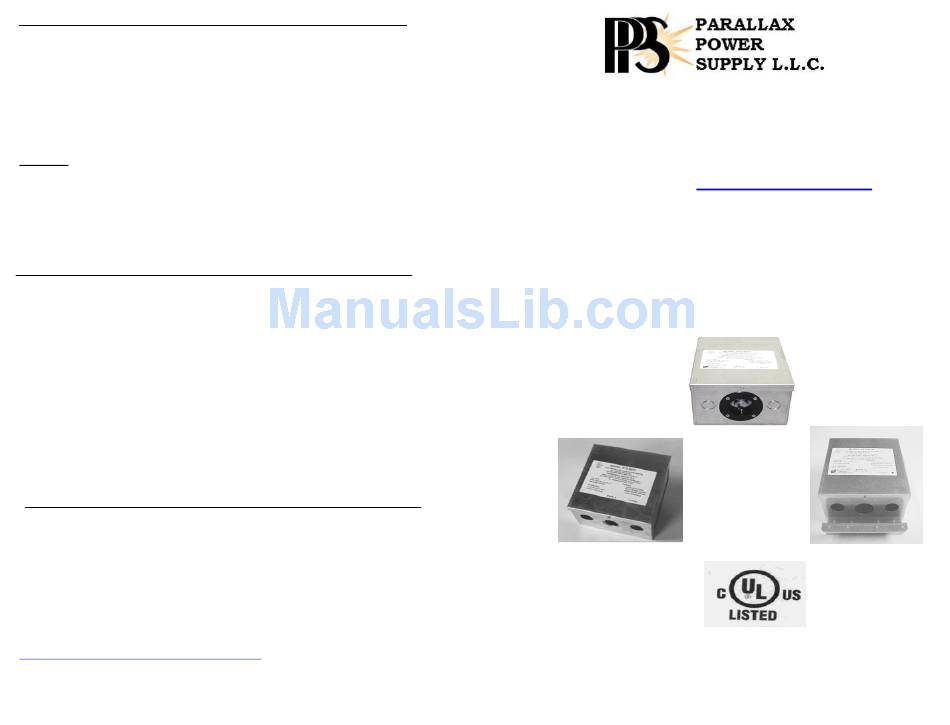

AUTOMATIC LINE/GENERATOR
TRANSFER SWITCH
MODEL ATS 5070 SERIES
Operator Guide
ATS 5070
PN # 999-8000-060
Form # 80060 Rev F
www.parallaxpower.com
ATS 5070 FI
Inlet)
(Flanged
ATS 5070 MB
(Mounting Bracket)
