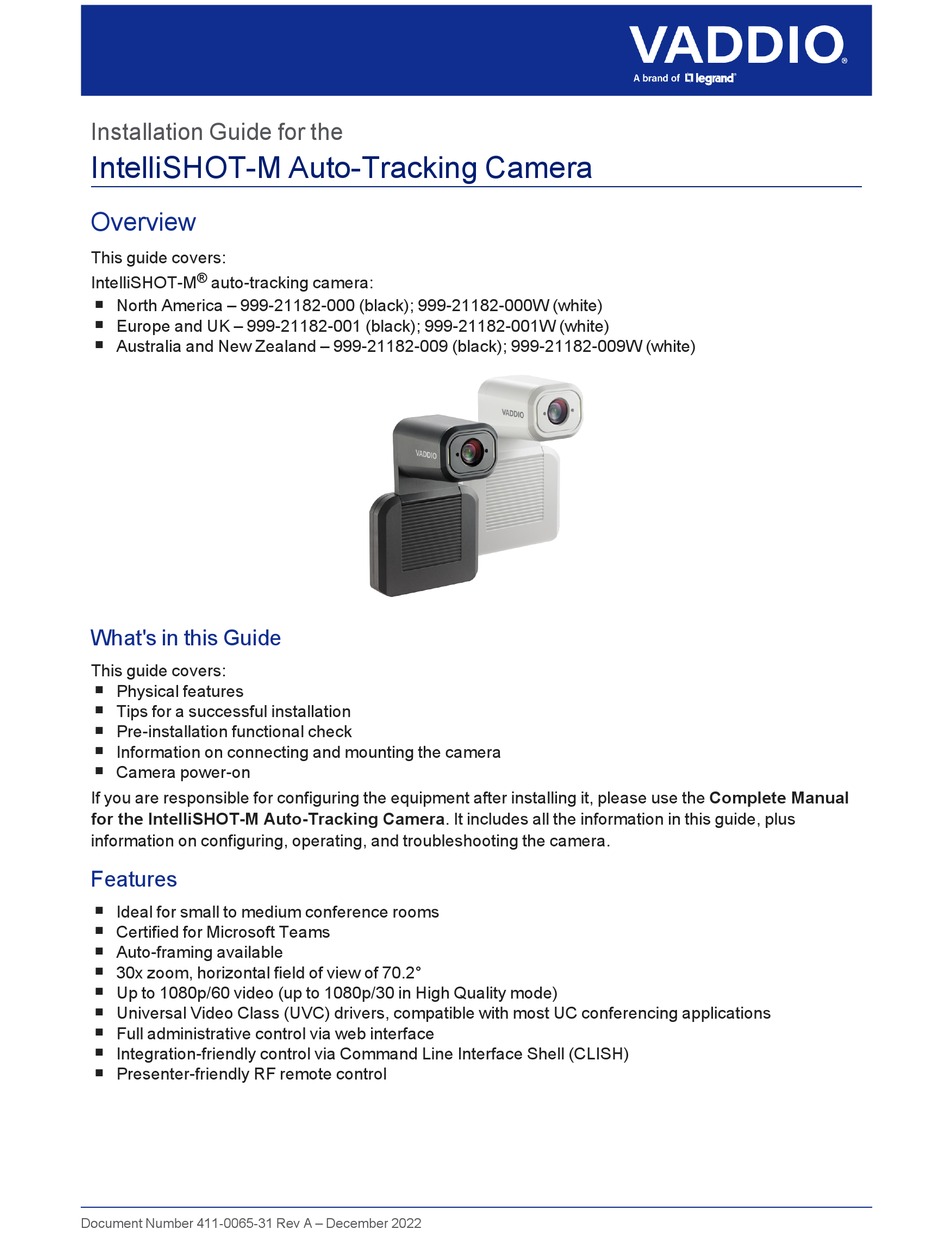

Installation Guide for the
IntelliSHOT-M Auto-Tracking Camera

Overview

This guide covers:
®

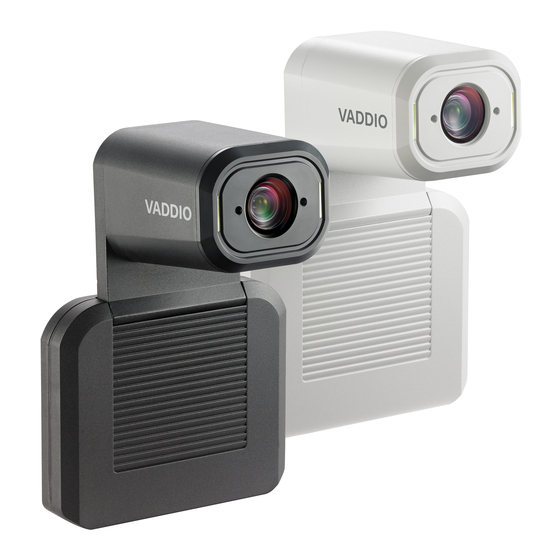

IntelliSHOT-M
auto-tracking camera:
North America – 999-21182-000 (black); 999-21182-000W (white)
n
Europe and UK – 999-21182-001 (black); 999-21182-001W (white)
n
n
Australia and New Zealand – 999-21182-009 (black); 999-21182-009W (white)

What's in this Guide

This guide covers:
n
Physical features
Tips for a successful installation
n
n
n
Information on connecting and mounting the camera
n
Camera power-on
If you are responsible for configuring the equipment after installing it, please use the Complete Manual
for the IntelliSHOT-M Auto-Tracking Camera. It includes all the information in this guide, plus
information on configuring, operating, and troubleshooting the camera.

Features

Ideal for small to medium conference rooms
n
Certified for Microsoft Teams
n
Auto-framing available
n
n
30x zoom, horizontal field of view of 70.2°
Up to 1080p/60 video (up to 1080p/30 in High Quality mode)
n
Universal Video Class (UVC) drivers, compatible with most UC conferencing applications
n
Full administrative control via web interface
n
n
Integration-friendly control via Command Line Interface Shell (CLISH)
Presenter-friendly RF remote control
n
Document Number 411-0065-31 Rev A – December 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VADDIO IntelliSHOT-M and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND VADDIO IntelliSHOT-M

  • Page 1 Installation Guide for the IntelliSHOT-M Auto-Tracking Camera Overview This guide covers: ® IntelliSHOT-M auto-tracking camera: North America – 999-21182-000 (black); 999-21182-000W (white) Europe and UK – 999-21182-001 (black); 999-21182-001W (white) Australia and New Zealand – 999-21182-009 (black); 999-21182-009W (white) What's in this Guide This guide covers: Physical features Tips for a successful installation...
  • Page 2 Installation Guide for the IntelliSHOT-M Auto-Tracking Camera A Quick Look at the Camera This section covers the physical features of the camera. Front of the Camera The camera is available in black or white. Camera and zoom lens – Up to 30x zoom. Status lights –...
  • Page 3 Installation Guide for the IntelliSHOT-M Auto-Tracking Camera Connector Panel The connectors are on the underside of the camera. PoE+ – RJ-45 connector for power, network access, and camera control. Connect to a PoE+ network switch or to the Power and Data Out port of the mid-span PoE+ power injector. USB 3.0 –...
  • Page 4 Installation Guide for the IntelliSHOT-M Auto-Tracking Camera Installation This section covers: Selecting the location for the camera Verifying that the camera is ready to install Installing the mount Connection diagrams Mounting the camera And a required safety note here: Note PoE type networks connected to this equipment are for intra-building use only and should not be connected to lines that run outside of the building in which this product is located.
  • Page 5 Installation Guide for the IntelliSHOT-M Auto-Tracking Camera Cabling Notes Use Cat-5e or better cable. Use shielded cabling if the cables will be coiled, run tightly with other cables, or routed near sources of electromagnetic interference such as power lines or fluorescent light fixtures. We recommend using high-quality connectors and a high-quality crimping tool.
  • Page 6 Installation Guide for the IntelliSHOT-M Auto-Tracking Camera Installing the Wall Mount The camera is shipped with a wall mount, which can be inverted. You can install the camera wall mount to a display mount or directly to drywall. If you mount it to drywall, use wall anchors.
  • Page 7 · Phone 800.572.2011 / +1.763.971.4400 · Fax +1.763.971.4464 · Email av.vaddio.support@legrand.com· Vaddio is a registered trademark of Legrand AV Inc. All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All patents are protected under existing designations.
