Installing
PrimeSHOT HDMI PTZ Cameras
This guide contains only the information required to install this product. Refer to the Complete Manual
for PrimeSHOT HDMI PTZ Cameras for information on configuring and using this product.
Overview
This guide covers:

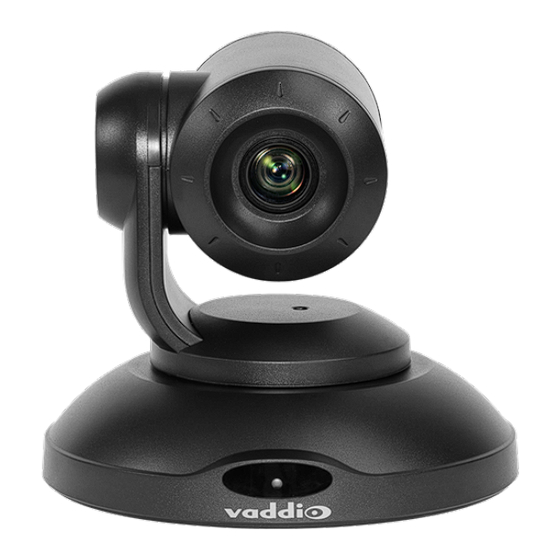

PrimeSHOT 10 HDMI PTZ camera
North America – 999-30410-000 (black), 999-30410-000W (white)
n
n
Europe and UK – 999-30410-001 (black), 999-30410-001W (white)
n
Australia and New Zealand – 999-30410-009 (black), 999-30410-009W
(white)
PrimeSHOT 20 HDMI PTZ camera
n
North America – 999-30420-000 (black), 999-30420-000W (white)
Europe and UK – 999-30420-001 (black), 999-30420-001W (white)
n
Australia and New Zealand – 999-30420-009 (black), 999-30420-009W (white)
n
What's in this guide
This guide covers:
Unpacking the camera
n
n
Tips for a successful installation
Instructions for installing the camera mount
n
Information on connecting and mounting the camera
n
Camera power-on
n
Complete product information is available in the Integrator's Complete Guide to the PrimeSHOT
HDMI PTZ Cameras.
If you are responsible for configuring the equipment after installing it, please use the Complete Manual. It
includes all the information in this guide, plus information on configuring, operating, and troubleshooting
the camera.
Features
PrimeSHOT 10 HDMI: PTZ camera for small to medium spaces
n
PrimeSHOT 20 HDMI: PTZ camera for medium to large venues such as houses of worship and
lecture theaters
n
2.12 Megapixel effective, native 1080p/60 full HD image sensor
PrimeSHOT 10 HDMI: 10x zoom, 67° horizontal field of view (wide end)
n
PrimeSHOT 20 HDMI: 20x zoom, 55° horizontal field of view (wide end)
n
Simultaneous HDMI 1.3 and IP (H.264) streaming outputs
Precise pan and tilt movements at up to 90° per second
n
Command Line Interface SHell (CLISH) and VISCA control for ease of integration
n
Enterprise-class IT administrative capabilities with full web controls for remote management
n
n
Presenter-friendly IR remote control
Document Number 411-0022-31 Rev D – August 2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND VADDIO PrimeSHOT Series
Summary of Contents for LEGRAND VADDIO PrimeSHOT Series
- Page 1 Installing PrimeSHOT HDMI PTZ Cameras This guide contains only the information required to install this product. Refer to the Complete Manual for PrimeSHOT HDMI PTZ Cameras for information on configuring and using this product. Overview This guide covers: PrimeSHOT 10 HDMI PTZ camera North America –...
-
Page 2: A Quick Look At The Camera
Installation Guide for PrimeSHOT HDMI PTZ Cameras A quick look at the camera This section covers the physical features of the camera. Camera and zoom lens – The PrimeSHOT 10 HDMI camera (left) has a 10x zoom lens. The PrimeSHOT 20 HDMI camera (right) has a 20x zoom lens. IR sensor –... - Page 3 Installation Guide for PrimeSHOT HDMI PTZ Cameras From left to right: Power connector – Connect the 12 VDC, 3 A power supply shipped with the camera. Rotary switch – Select the video output resolution. Ethernet connector – Connect to the network. RS-232 connector –...
-
Page 4: Installation
Installation Guide for PrimeSHOT HDMI PTZ Cameras Installation This section covers: Selecting the location for the camera Verifying that the camera is ready to install Installing the mount RS-232 cable pin-out and communication settings Connection diagrams Mounting the camera Before you install the camera Camera placement tips: Consider camera viewing angles, lighting conditions, line-of-sight obstructions, and in-wall obstructions where the camera is to be mounted. ... -
Page 5: Cabling Notes
Installation Guide for PrimeSHOT HDMI PTZ Cameras Cabling notes Caution Do not use pass-through RJ-45 connectors when making cables for this product. Poorly crimped connectors of this type can cause intermittent connections and degraded signal quality. They can also damage the connectors on the product, which will void your warranty. Damaged –... -
Page 6: Pre-Installation Functional Check
Installation Guide for PrimeSHOT HDMI PTZ Cameras Pre-installation functional check If you're installing the camera where it's hard to reach, you may want to verify functionality before you install it. 1. Connect the camera in its minimum functional configuration. 2. Connect power. If the camera turns on and sends video, continue with the installation. -
Page 7: Rs-232 Serial Communication Settings
Installation Guide for PrimeSHOT HDMI PTZ Cameras RS-232 serial communication settings The RS-232 serial port connects to a third-party device for external control. Parameter Value Communication Speed 9600 bps or 38400 bps, switch-selectable Number of start bits Number of stop bits Number of data bits Parity None... -
Page 8: Installing The Wall Mount
Installation Guide for PrimeSHOT HDMI PTZ Cameras Installing the wall mount The camera is shipped with a wall mount. Other mounting options are available as well. Contact us if you don’t have the camera mount you need. You can install the camera wall mount to a 2-gang wall box or directly to the drywall. If you mount it to drywall, use the wall anchors provided with the wall mount. -
Page 9: Installing The Camera
Installation Guide for PrimeSHOT HDMI PTZ Cameras Installing the camera Caution Before you start, be sure you can identify all cables correctly. Connecting a cable to the wrong port can result in equipment damage. Caution Check your cables. Connecting a cable to the wrong port or using the wrong pin-out can result in equipment damage and will void the warranty. -
Page 10: Powering Up The Camera
