Access & Power Integration

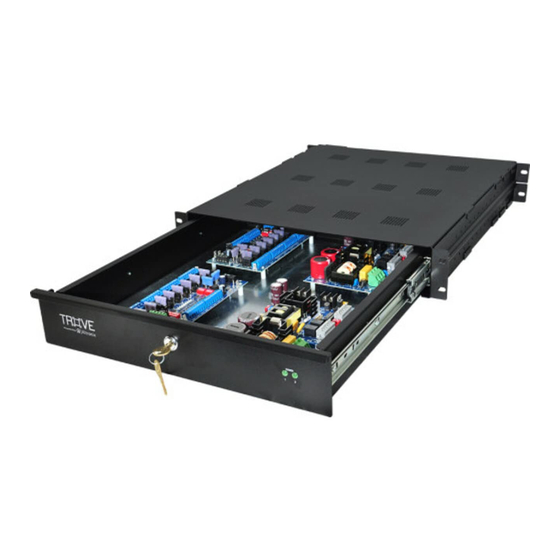

Trove1AL1R
- Trove rack enclosure with
Altronix backplane (TAL1R)
Installation Guide
All registered trademarks are property of their respective owners.
More than just power.
Rev. TALR102518
TM
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix Trove1AL1R
Summary of Contents for Altronix Trove1AL1R
- Page 1 Access & Power Integration Trove1AL1R - Trove rack enclosure with Altronix backplane (TAL1R) Installation Guide All registered trademarks are property of their respective owners. More than just power. Rev. TALR102518 Installing Company: _______________ Service Rep. Name: __________________________________ Address: _____________________________________________ Phone #: __________________...
- Page 2 Overview: Altronix Trove1AL1R accommodates various combinations of Altronix power supply/charger boards and sub-assemblies. Specifications: Agency Listings: • CE European Conformity. Trove1AL1R Trove1R rack mount enclosure with TAL1R Altronix backplane. • 16 Gauge black enclosure with ample knockouts for convenient access.
- Page 3 1. Remove backplane from enclosure prior to installing into rack cabinet (do not discard hardware). 2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) turn the enclosure upside down. Punch out the knockout in designated location, on the back of the unit, from outside of the drawer (Fig.
- Page 4 Assembling and Attaching Z Bracket Wire Management Accessory (included): Altronix Trove Rack enclosures include Z Bracket, a convenient and reliable wire management accessory. Hardware (included): Fig. 3 Ten (10) bolts and eight (8) lock nuts. 1. Carefully unpack Z Bracket. Do not discard hardware (included) (Fig.
- Page 5 TAL1R: Configuration of Altronix Power Supply and/or Sub-Assembly Boards 1. Fasten spacers onto metal pems configuration (A), (B) or (C) of backplane depending on the board (Fig. 5, pg. 5). 2. Position power supply or sub-assembly over corresponding spacers and fasten screws into spacers (Fig.
- Page 6 Notes: - 6 - Trove1AL1R Installation Guide...
- Page 7 TAL1R Backplane Dimensions (H x W x D): 18.5” x 15.25” x 0.3125” (469.9mm x 387.4mm x 7.9mm) 15.25” (387.4mm) Trove1AL1R Installation Guide - 7 -...
- Page 8 116.1mm 26.5” 673.1mm 19” (482.6mm) 3.375” 85.8mm Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty MEMBER IITrove1AL1R...
