Access & Power Integration
Trove3WC Series
Trove Compatible Battery/Wire Enclosures
Models Include:
Trove3BWC
- Trove Compatible Battery/Wire Enclosure (Top or Bottom Mounting)
Trove3SWC
- Trove Compatible Battery/Wire Enclosure (Left or Right Side Mounting)
Installation Guide
Rev. TroveWC030822
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
More than just power.™
Advertisement
Table of Contents
Related Manuals for Altronix TROVE Trove3WC Series
Summary of Contents for Altronix TROVE Trove3WC Series
- Page 1 Access & Power Integration Trove3WC Series Trove Compatible Battery/Wire Enclosures Models Include: Trove3BWC - Trove Compatible Battery/Wire Enclosure (Top or Bottom Mounting) Trove3SWC - Trove Compatible Battery/Wire Enclosure (Left or Right Side Mounting) Installation Guide More than just power.™ Rev. TroveWC030822 Installing Company: _________________________ Service Rep.

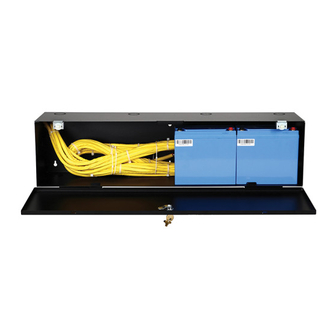

- Page 2 Overview: Altronix Trove3BWC and Trove3SWC are dual-purpose enclosures that can be used as wiring troughs or battery cabinets when mounted above or below (Trove3BWC) or on either side (Trove3SWC) of the Trove integrated power and access solution. The knockouts on the Trove3BWC and Trove3SWC have been strategically placed to line up with the Trove3 allowing for easy conduit connections between cabinets.Trove3BWC and...
- Page 3 Trove3BWC Configuration of Batteries: Trove3BWC accommodates up to four (4) 12VDC/18AH batteries Fig. 2 - Trove3BWC Up to four (4) 12VDC/18AH batteries (not included) Trove3BWC/Trove3SWC Installation Guide - 3 -...
- Page 4 Trove3SWC Configuration of Batteries: Trove3SWC accommodates up to four (4) 12VDC/40AH batteries batteries Fig. 3 - Trove3SWC 12VDC/40AH battery (not included) 12VDC/40AH battery (not included) 12VDC/40AH battery (not included) 12VDC/40AH battery (not included) - 4 - Trove3BWC/Trove3SWC Installation Guide...
- Page 5 Possible Ways of Utilizing Trove3BWC and Trove3SWC Adjacent to Trove3 Enclosure: Fig. 4 Trove3BWC Conduits Conduits Conduits Trove3SWC Trove3SWC Conduits Conduits Conduits Conduits Conduits Conduits Conduits Conduits Conduits Trove3BWC Trove3BWC/Trove3SWC Installation Guide - 5 -...
- Page 6 Notes: - 6 - Trove3BWC/Trove3SWC Installation Guide...
- Page 7 Trove3BWC Dimensions (H x W x D): 30.12” x 7.62” x 7.06” (765.1mm x 193.5mm x 179.3mm) 8.75” (222.3mm) 8.62” (218.9mm) 8.75” (222.3mm) 2.0” (50.8mm) 1.5” (38.1mm) 30.12” (765.1mm) SIDE SIDE SIDE INSIDE 3.5” (88.9mm) 1.5” (38.1mm) 8.79” (223.3mm) 8.66” (220mm) 9.17”...
- Page 8 (50.8mm) (50.8mm) Inside door view 0.5” (12.5mm) 7.06” (179.3mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com IITrove3BWC/Trove3SWC C08V...
