EDGE™ and EDGE8® Solution
Single-Module Housing
P/N 003-892-AEN
Issue 5
related literature | Search www.corning.com/opcomm. Click on "Resources."
003-794-AEN
003-888-AEN
000-276-AEN
003-825-AEN
003-892-AEN
003-1049-AEN
000-274-AEN
006-407-QSG-AEN
003-885-AEN
1.
Carton Contents

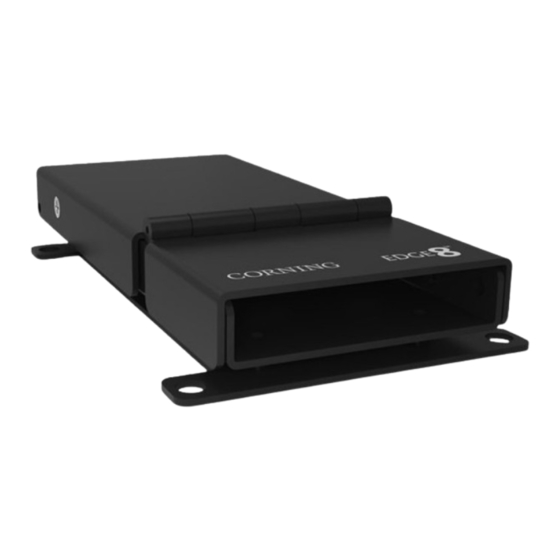

Single-module housing (SMH) with preinstalled mounting bracket
Single module housing
(P/N EDGE-SMH)
TPA-3858
2.
Tools and Materials
•
Phillips screwdriver
Parts in Section 3.1 (ordered separately):
• MTP Connector Module for EDGE-SH
(P/N ECM-UM12-05-93T - OM3 multimode;
ECM-UM12-05-93Q - OM4 multimode;
or ECM-UM12-04-89G - OS2 single-mode)
• MTP Connector Module for EDGE8-SMH
(P/N ECM8-UM08-05-E6Q-ULL - OM4 multimode,
ECM8-UM08-04-E*G-ULL - OS2 single-mode)
EDGE™ Solution
EDGE Solution with 1U/2U/4U Fixed Trays
EDGE Secure Solutions FTTD Module
EDGE and EDGE8® Fiber Zone Boxes
EDGE and EDGE8 Solution Single Module Housing
EDGE Solution Single Module Housing for Splicing
EDGE Splice Cassette EDGE Field-Terminated Cassette
Field Tool for MTP® PRO Connectors Quick Start Guide
EDGE Solution Modules in an Enhanced Management Frame
Single module housing
(P/N EDGE8-SMH)
Parts in Sections 3.2 and 3.3 (ordered separately):
• Slack storage/splice housing (P/N EDGE-SMH-SLK)
• Empty module, multimode (P/N EMOD-CP12-AD) or
• Empty module, single-mode (P/N EMOD-CP12-AE)
Standard Recommended Procedure 003-892-AEN | Issue 5 | November 2020 | Page 1 of 4
1.
Advertisement
Table of Contents
Related Manuals for CORNING EDGE
Summary of Contents for CORNING EDGE
- Page 1 EDGE Splice Cassette EDGE Field-Terminated Cassette 006-407-QSG-AEN Field Tool for MTP® PRO Connectors Quick Start Guide 003-885-AEN EDGE Solution Modules in an Enhanced Management Frame Carton Contents Single-module housing (SMH) with preinstalled mounting bracket Single module housing Single module housing...
- Page 2 NOTE: Sections 3.2 and 3.3 only apply to EDGE-SMH. EDGE™ or EDGE8® MTP® Connector Module into SMH CAUTION: Scoping Corning CleanAdvantage connectors increases the risk of adding contamination to the system. CleanAdvantage technology is designed for mating connectors without cleaning or Remove screws.
- Page 3 Install cover on Secure splice tray splice tray. with screw. Remove screws. Remove screws and Attach slack storage / splice Lift cover o . mounting bracket. housing attachment with screws just removed. T P A - 3 8 5 9 TPA-3859 Install harness;...
- Page 4 A complete listing of the trademarks of Corning Optical Communications is available at www.corning.com/opcomm/trademarks. All other trademarks are the properties of their respective owners. Corning Optical Communications is ISO 9001 certified. © 2011, 2016, 2020 Corning Optical Communications. All rights reserved.
