ONE SD-LAN Head
End Equipment
Quick Installation Guide
SD-LAN-000-HEEQUIP
General Information |
This document describes how to install the Head
End equipment for ONE SD-LAN Active Ethernet and
GPON deployments
1 Items Required for Head End
Equipment Installation |
The following items are required for installing the Head
End Equipment

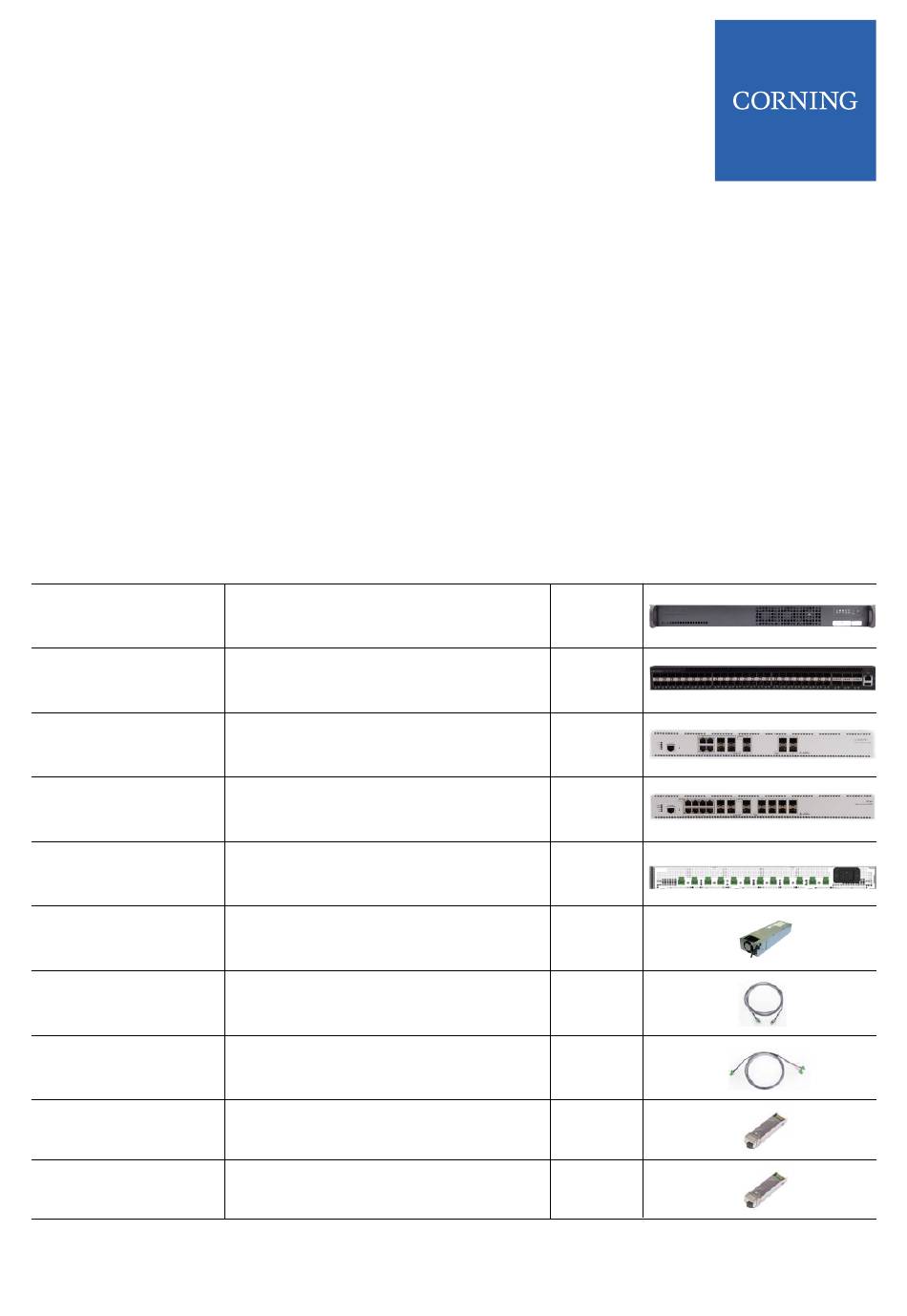

ONE SD-LAN Head End Equipment/Accesories
1LAN-SRV-50195L
1LAN-SDDP-48P
1LAN-SDOLT-0587
1LAN-SDOLT-0588
PSU6
PSM-I
DE2-CCA-1PR18-2M
DE2-CCA-2PR18-2M
1LAN-SFP-4305BC
1LAN-SFP-3405BC
Qucik Installation I SD-LAN-000-HEEQUIP
Virtual Application Host
SDDP 48 Port Switch
4 Port OLT
8 Port OLT
Power Supply Unit
Power Supply Module
1 pair power cross connect assembly
2 pair power cross connect "Y" assembly
SFP, Bi-Di, 1490Tx/1310Rx, 1Gb/s
SFP, Bi-Di, 1310Tx/1490Rx , 1Gb/s
LC/UPC
Simplex
LC/UPC
Simplex
| Page 1
Advertisement
Related Manuals for CORNING ONE SD-LAN
Summary of Contents for CORNING ONE SD-LAN
- Page 1 Quick Installation Guide SD-LAN-000-HEEQUIP General Information | This document describes how to install the Head End equipment for ONE SD-LAN Active Ethernet and GPON deployments 1 Items Required for Head End Equipment Installation | The following items are required for installing the Head...
- Page 2 ONE SD-LAN Head End Equipment Quick Installation Guide SD-LAN-000-HEEQUIP ONE SD-LAN Head End Equipment/Accesories LC/UPC 1LAN-SFP-1GB-LXLH SFP, SMF, 1310nm, 10km, 1Gb/s Duplex RJ-45 1LAN-SFP-1GCU SFP, Cu, 1Gb/s LC/UPC 1LAN-QSFPP-40GB-LR QSFP+ CWDM 4X10.3125Gb/s Duplex LC/UPC 1LAN-SFPP-10GB-LR SFP+, SMF, 1310nm, 10Gb/s Duplex...
- Page 3 ONE SD-LAN Head End Equipment Quick Installation Guide SD-LAN-000-HEEQUIP ONE SD-LAN Head End Equipment/Accesories CCH-01U Closet Connector Housing, 1RU, (2) Panels/Cassettes CCH-02U Closet Connector Housing, 2RU, (4) Panels/Cassettes CCH-03U Closet Connector Housing, 3RU, (6) Panels/Cassettes CCH-04U Closet Connector Housing, 4RU,...
- Page 4 ONE SD-LAN Head End Equipment Quick Installation Guide SD-LAN-000-HEEQUIP ONE SD-LAN Head End Equipment/Accesories CCH-UM1-6CD6CE1116 1x16 Splitter, SC/APC CCH-UM1-22D22E1116 1x16 Splitter, LC/APC CCH-UM1-6CD6CE1132 1x32 Splitter, SC/APC CCH-UM1-22D22E1132 1x32 Splitter, LC/APC Qucik Installation I SD-LAN-000-HEEQUIP | Page 4...
- Page 5 ONE SD-LAN Head End Equipment Quick Installation Guide SD-LAN-000-HEEQUIP 2 Suggested Rack Layout | Patch Panel p/n: CCH-04U, CCH-03U, CCH-02U, CCH-01U Jumper Management Panel p/n: CJP-01U Power Supply Unit p/n: PSU6-1U p/n:1LAN-SDOLT-0588 or 1LAN-SDOLT-0587 Software Defined Data Plane (SDDP) p/n:1LAN-SDDP-48P...
- Page 6 ONE SD-LAN Head End Equipment Quick Installation Guide SD-LAN-000-HEEQUIP 3 Application Host/SDDP Step 3 Using a CAT 6 jumper plug into RJ-45 data port to the left of WAN Top Of Rack (TOR) Switch Set Up connection on the back of Virtual...
- Page 7 3.3 Application Controller Connections 4.1 Virtual Application Host Connections Step 1 Insert appropriate SFP’s into SDDP TOR switch ports. These SFP’s will correspond to the applications being managed by the Corning SD-LAN Step 1 Connect power to Virtual Application Platform. Host Step 2...
- Page 8 ONE SD-LAN Head End Equipment Quick Installation Guide SD-LAN-000-HEEQUIP 4.2 SDDP TOR Connections 4.3 Application Services from External Router Connections Step 1 Connect power to SDDP TOR Switch Step 1 Insert appropriate SFP’s into SDDP Step 2 Insert a Copper SFP (1LAN-SFP-...
- Page 9 ONE SD-LAN Head End Equipment Quick Installation Guide SD-LAN-000-HEEQUIP 5 Active Ethernet Set Up | 5.1 Active Ethernet Connections using SDDP NOTES: Step 1 Insert a Bi-Di Fiber SFP (1LAN-SFP- • If Active Ethernet topology is being utilized, the SDDP...
- Page 10 ONE SD-LAN Head End Equipment Quick Installation Guide SD-LAN-000-HEEQUIP 6 PON Set Up | 5.2 Active Ethernet Connections using SDDP Aggregation Switch Examples: Step 1 Mount SDDP Aggregation Switch in IPTV WIFI rack with SDDP TOR switch SECURITY IP PHONE Etc.
-
Page 11: Power Setup
ONE SD-LAN Head End Equipment Quick Installation Guide SD-LAN-000-HEEQUIP 7 Power Set Up | Step 5 Insert the appropriate SFP into available port on OLT NOTE: For detailed instructions on mounting and Step 6 Using an LC/UPC – LC/UPC Duplex... - Page 12 ONE SD-LAN Head End Equipment Quick Installation Guide SD-LAN-000-HEEQUIP 8 Fiber Set Up | Step 3 Terminate outgoing fiber using Corning Unicam® standard recommended procedure 8.1 Fiber Hardware Housing Set Up (https://www.corning.com/ catalog/coc/documents/standard- Step 1 Mount selected fiber hardware recommended-procedures/006-369.
- Page 13 ONE SD-LAN Head End Equipment Quick Installation Guide SD-LAN-000-HEEQUIP Step 6 Make sure outgoing cables are routed and strain relieved properly to housing Step 7 Connect jumpers from Head End Active equipment to the appropriate port on CCH panels METHOD C. CCH Pigtailed Splice Cassettes...
