CORNING CCH-CS Quick Start Manual

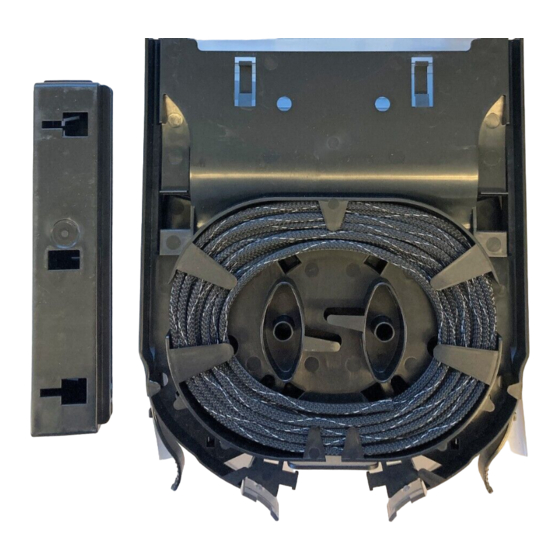

Splice cassette and slack cassette for closet connector housings
Hide thumbs Also See for CCH-CS:

Advertisement

Quick Links

related literature |
003-876-QSG
003-876
003-877-QSG
003-877

table of contents

1.
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2.
3.
Splice Cassette (CCH-CS) Installation - Ribbon fiber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4.
5.
6.
Closet Connector Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7.
Cassette Installation in CCH-04U CCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
1.

Precautions

WarninG: Never look directly into the end of a fiber that may be carrying laser
light. Laser light can be invisible and can damage your eyes. Viewing it directly does not
cause pain. the iris of the eye will not close involuntarily as when viewing a bright light.
consequently, serious damage to the retina of the eye is possible. Should accidental eye
exposure to laser light be suspected, arrange for an eye examination immediately.
WarninG: DO NOT use magnifiers in the presence of laser radiation. Diffused laser
light can cause eye damage if focused with optical instruments. Should accidental eye
exposure to laser light be suspected, arrange for an eye examination immediately.
caution: recommend the use of safety glasses (spectacles) conforming to ANSI Z87,
for eye protection from accidental injury when handling chemicals, cables, or working with
fiber. Pieces of glass fiber are very sharp and have the potential to damage the eye.
caution: the wearing of cut-resistant safety gloves to protect your hands from
accidental injury when using sharp-bladed tools and armored cable is strongly
recommended. Use extreme care when working with severed armor. there will be a
sharp edge where armor is cut. to minimize the chance of injury from the cut armor,
cover the exposed edge with a wrap of electrical tape. to minimize the chance of injury
from sharp-bladed tools, always cut away from yourself and others. Dispose of used
blades and armor scrap properly.
STANDARD RECOMMENDED PROCEDURE 003-895 | ISSUE 1 | OctOber 2011 | PAGE 1 OF 11
closet connector Housing (ccH) 1U/2U/3U Quick Start Guide
Instruction, closet connector Housing (ccH) 1U/2U/3U
closet connector Housing (ccH) 4U Quick Start Guide
Instruction, closet connector Housing (ccH) 4U
Splice cassette (ccH-cS)
and Slack cassette (ccH-cF)
for closet connector
Housings
p/n 003-895, Issue 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CCH-CS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CORNING CCH-CS

Summary of Contents for CORNING CCH-CS

  • Page 1: Table Of Contents

    Splice Cassette (CCH-CS) Installation — Tight Buffer or Loose Tube Fiber ... . 2 Splice Cassette (CCH-CS) Installation — Ribbon fiber ......5 Slack Cassette (CCH-CF) Field Termination —...

  • Page 2: Splice Cassette (Cch-Cs) Installation - Tight Buffer Or Loose Tube Fiber

    Use tweezers to pick up cleaved or broken pieces of glass fibers and place them on a loop of tape kept for that purpose alone. Good housekeeping is very important. SPLICe CaSSeTTe (CCH-CS) INSTaLLaTIoN — TIGHT BUFFeR oR LooSe TUBe FIBeR 2.1. Fiber Routing...
  • Page 3 TPA-3930 TPA-3931 TPA-3932 2.2. Cable Preparation Strip Lengths Strain-relief for Splicing Point 110 inches 62 inches 48 inches 1U/2U/3U Housing 82 inches 48 inches 4U Housing 130 inches TPA-3951 STANDARD RECOMMENDED PROCEDURE 003-895 | ISSUE 1 | OctOber 2011 | PAGE 3 OF 11...
  • Page 4 2.3. Splicing Tight Buffer or Loose Tube Fiber Cut to: 48 inches (250 micron) 35 inches (900 micron) TPA-3933 Repeat Step 5 on the other side of cassette. Loop and store all fiber under flanges. Fold fiber over into cassette and store under flanges.

  • Page 5: Splice Cassette (Cch-Cs) Installation - Ribbon Fiber

    Protect tight-buffer fiber with braided tubing, if needed, for multiple cables or 24-fiber cables. Loose Tube Fiber TPA-3950 SPLICe CaSSeTTe (CCH-CS) INSTaLLaTIoN — RIBBoN FIBeR 3.1. Ribbon Fiber Preparation and Routing Ribbon Pigtail NOTE: Ensure length of pigtail is approximately 35 inches Protective tubing is required from fan-out body.
  • Page 6 TPA-3928 Capture fibers and ribbon under flanges. TPA-3938 Press plungers to install adapter panel. TPA-3939 Ensure slack is properly managed. TPA-3839 STANDARD RECOMMENDED PROCEDURE 003-895 | ISSUE 1 | OctOber 2011 | PAGE 6 OF 11...
  • Page 7 3.2. Ribbon Fiber Splicing NOTE: Rotate splice organizer 90-degrees from its factory-installed orientation meant for single fibers to the orientation shown for ribbon fiber splices. Single-fiber Orientation Mass Fusion Ribbon Orientation TPA-3949 TPA-3840 90° Rotate splice organizer 90° for ribbon storage. Flex organizer to Organizer installed reinstall.
  • Page 8 Apply heat to heatshrink tube. Route as shown. Slide heatshrink tube onto ribbon up to jacket. Bring pigtail ribbon from bottom layer into top layer. Splice per the instructions provided with Route as the splice shown. equipment. Cut ribbons in center of Place ribbons in tube;...

  • Page 9: Slack Cassette (Cch-Cf) Field Termination - Loose Tube Or Ribbon Cable

    SLaCk CaSSeTTe (CCH-CF) FIeLd TeRmINaTIoN — LooSe TUBe oR RIBBoN CaBLe TPA-3946 SLaCk CaSSeTTe (CCH-CF) FIeLd TeRmINaTIoN — TIGHT BUFFeR CaBLe STANDARD RECOMMENDED PROCEDURE 003-895 | ISSUE 1 | OctOber 2011 | PAGE 9 OF 11...

  • Page 10: Cassette Installation In Cch-01U, Cch-02U, Or Cch-03U

    CaSSeTTe INSTaLLaTIoN IN CCH-01U, CCH-02U, oR CCH-03U CLoSeT CoNNeCToR HoUSING Slide covers Remove: 4 Panel Clips apart to remove. 2 Blank Panels Open front and TPA-3943 8 Routing Guides back doors. 1 Strain-relief Bracket Install bottom front stacker. Slide into keyhole. TPA-3943 STANDARD RECOMMENDED PROCEDURE 003-895 | ISSUE 1 | OctOber 2011 | PAGE 10 OF 11...

  • Page 11: Cassette Installation In Cch-04U Cch

    1-800-743-2671 • FaX +1-828-325-5060 • International +1-828-901-5000 • http://www.corning.com/cablesystems Corning Cable Systems reserves the right to improve, enhance, and modify the features and specifications of Corning Cable Systems’ products without prior notification. All trademarks are the properties of their respective owners. Corning Cable Systems is ISO 9001 certified.

This manual is also suitable for:

Cch-cf
