CORNING CPP-03U Quick Start Manual

3u and 4u closet patch panel

Advertisement

Quick Links

Table of Contents
1. General ........................................................ 1
2. Description ................................................. 1
3. Components ................................................ 2
4. Precautions .................................................. 3
5. Mounting .................................................... 3
6. Cable Strain-relief ....................................... 5
7. Connector Panels/Modules ........................ 8
8. Connector/Fan-out Installation ................. 9
9. Jumpers ..................................................... 10
10. Lock Installation ....................................... 10
11. Maintenance .............................................. 11
12. Dimensions ............................................... 11
p/n 003-534
1.
General
1.1
This document describes the installation of
the 3U and 4U Closet Patch Panel (CPP-03U &
CPP-04U) manufactured by Corning Cable Systems.
1.2
Contact your customer service representative
to purchase accessories that are sold separately.
1.3
This document is being reissued to include
updated corporate information.
NOTE: Read and understand this procedure (as well as
the instructions provided with related assemblies) before
beginning an installation. Familiarize yourself to
understand the unit's placement in your network. Make
sure you know where the cable will enter the unit, where
it will be placed in the utility rack, how jumpers will be
routed and other details of the installation plan.
2.
Description
2.1
The Closet Patch Panel (CPP) is a rack
mounted fiber optic connector housing designed for
use in premises applications.
2.2

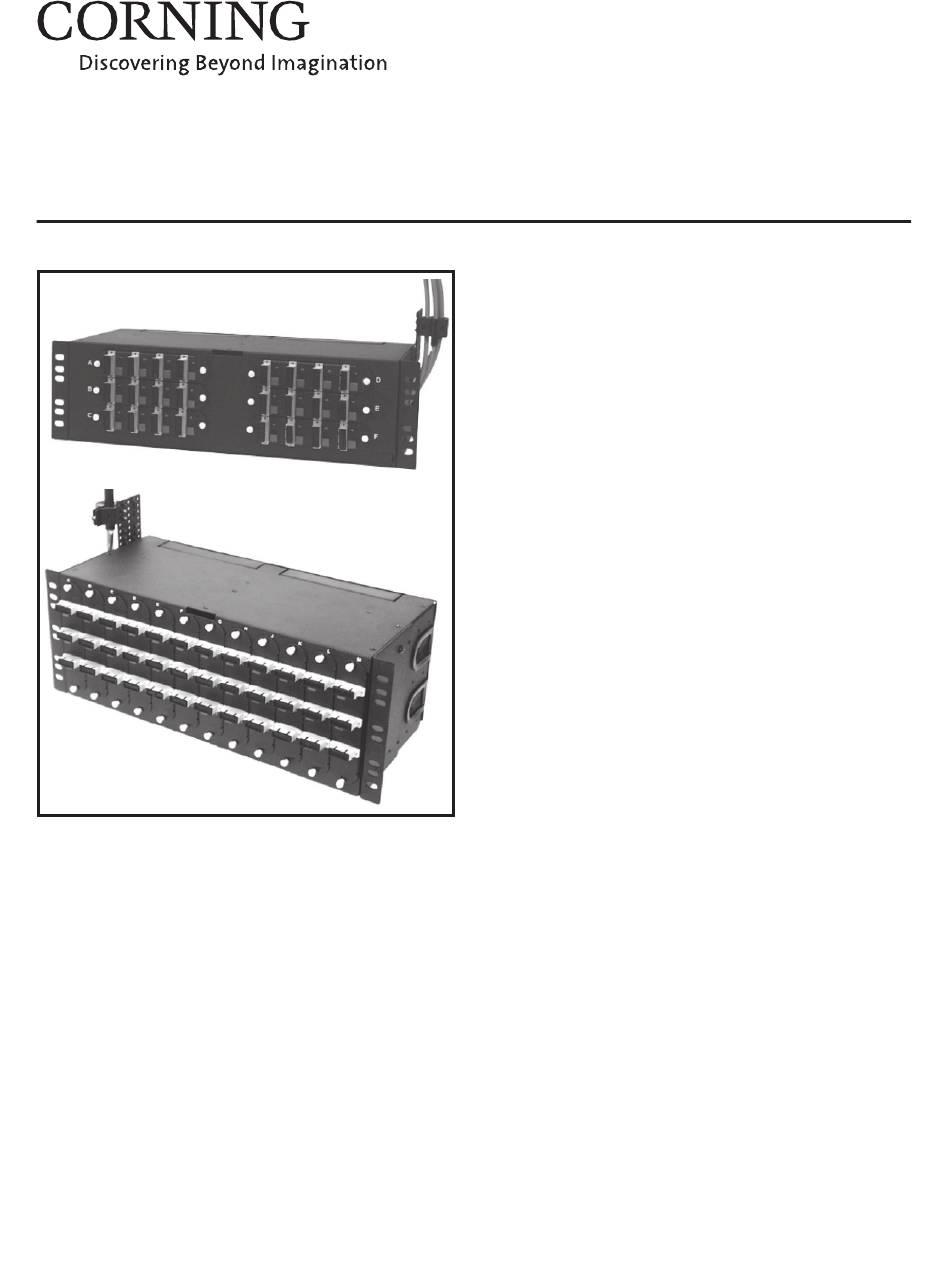

Two versions of the CPP are available (Figure
1). Both units fit in either 19- or 23-inch racks. The
CPP-03U occupies three rack spaces. The CPP-04U
Figure 1
occupies four rack spaces.
2.3
The CPP-03U accepts up to six connector
panels and/or modules, while the CPP-04U will
accommodate up to twelve connector panels and/or
modules. Panels and modules are ordered separately.
2.4
Both units can be ordered with a locking rear
door or a key lock can be added at a later time.
(Order p/n HDWR-LOCK-KIT.)
2.5
Connectorized pigtails can be used when the
CPP is used in conjunction with a splice housing (p/
n CSH-03U, CSH-05U, CJH-02U or CJH-03U).
Corning Cable Systems
Issue 2, March 2001
3U and 4U Closet Patch Panel
(CPP-03U & CPP-04U)
SRP-003-534
Page 1 of 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the CPP-03U and is the answer not in the manual?

Questions and answers

Summary of Contents for CORNING CPP-03U

  • Page 1 3U and 4U Closet Patch Panel (CPP-03U & CPP-04U) General This document describes the installation of the 3U and 4U Closet Patch Panel (CPP-03U & CPP-04U) manufactured by Corning Cable Systems. Contact your customer service representative to purchase accessories that are sold separately.
  • Page 2 Page 2 SRP-003-534 Issue 2 Components Components are illustrated in Figure 2. Cable can enter the unit from either side of the housing. A hardware kit is included that contains: • (4) #10-32 rack-mount screws • (4) #12-24 rack-mount screws •...
  • Page 3 Page 3 Issue 2 SRP-003-534 Cable Handling Precautions Precautions Laser Handling Precautions NOTE: Fiber optic cable is sensitive to excessive pulling, bending and crushing forces. Consult the cable specification sheet for the cable you are installing. Do WARNING: Never look directly into the end not bend the cable more sharply than the of a fiber that may be carrying laser light.
  • Page 4 23-inch rack. Purchase the adapter brackets separately. Order part number CDF-04U-23-BKT for the CPP-04U or p/n CDF-03U-23-BKT for the CPP-03U. The adapter brackets must be attached to the unit first using the #10-32 screws provided (Figure 4).
  • Page 5 Page 5 Issue 2 SRP-003-534 If you are using an EIA-310-D compliant Cable Strain-relief equipment rack, align the mounting holes of the Fiber optic cable is generally routed and CPP so that the next hole above or below the strain-relieved to the CPP housing. The cable is then housing is inch away from the top or bottom routed to the back of connector panels inside the...
  • Page 6 SRP-003-534 Issue 2 To use cable ties only, secure the cable to the Corning Cable Systems recommends strain- feed-through bracket inside the housing as shown in relieving the cable on a bracket outside the unit as Figure 9. Do not overtighten cable ties. This can shown in Figure 11.
  • Page 7 Page 7 Issue 2 SRP-003-534 • To ground armored cable, order p/n FDC- Order p/n CPP-SSR-KIT for central member CABLE-GRND and attach the grounding lug to strain-relief hardware. the cable armor according to the instructions that • Install the 8-32x screw from the front side of come with the ground kit.
  • Page 8 Connector Panels / Modules Install connectors into the rear of the connector panels. Route fiber through the routing The CPP-03U will hold up to six connector clips as shown in Figure 15. panels and/or modules; the CPP-04U unit will NOTE: The connector is a delicate device. Obey the accommodate up to twelve.
  • Page 9 Page 9 Issue 2 SRP-003-534 NOTE: Place new identification tags on the new working length prior to removing any excess fiber length. Route pigtail fibers through feed-through ports in the top and bottom of the housing to splice housings. Slack cable must be stored in the splice housing.
  • Page 10 Good jumper management and record keeping are (Figure 19). Secure the fan-outs using a cable tie. imperative to maintain an organized installation. Corning Cable Systems strongly recommends the use of the Jumper Management Panel (p/n CJP-01U, Cable Tie Fan-outs CJP-02U or CJP-03U) and the CDF-IBS-7 Inter- Bay Storage unit (U.S.
  • Page 11 CPP-03U: 14.5 cm (5.75 in.) CPP-04U: 17.75 cm (7 in.) Figure 21 Corning Cable Systems reserves the right to improve, enhance, and Special Note: modify the features and specifications of Corning Cable Systems’ Fiber Optic products without prior notification. Training Program MTP is a trademark of US Conec, Ltd.

This manual is also suitable for:

Cpp-04u
