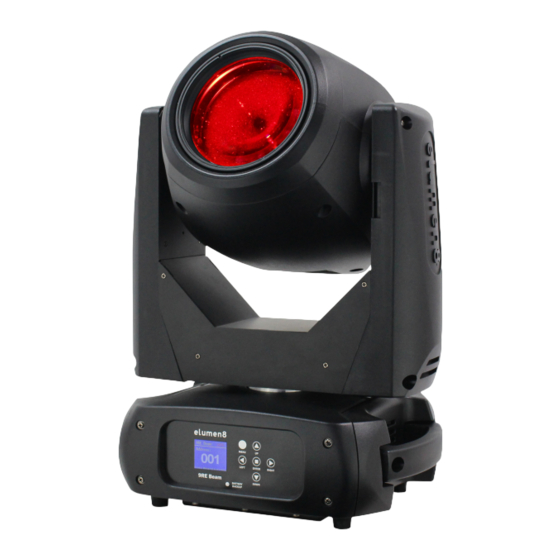

9RE Beam
User Manual
Order codes: ELUM016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9RE Beam and is the answer not in the manual?

Questions and answers

Related Manuals for Elumen8 9RE Beam

Summary of Contents for Elumen8 9RE Beam

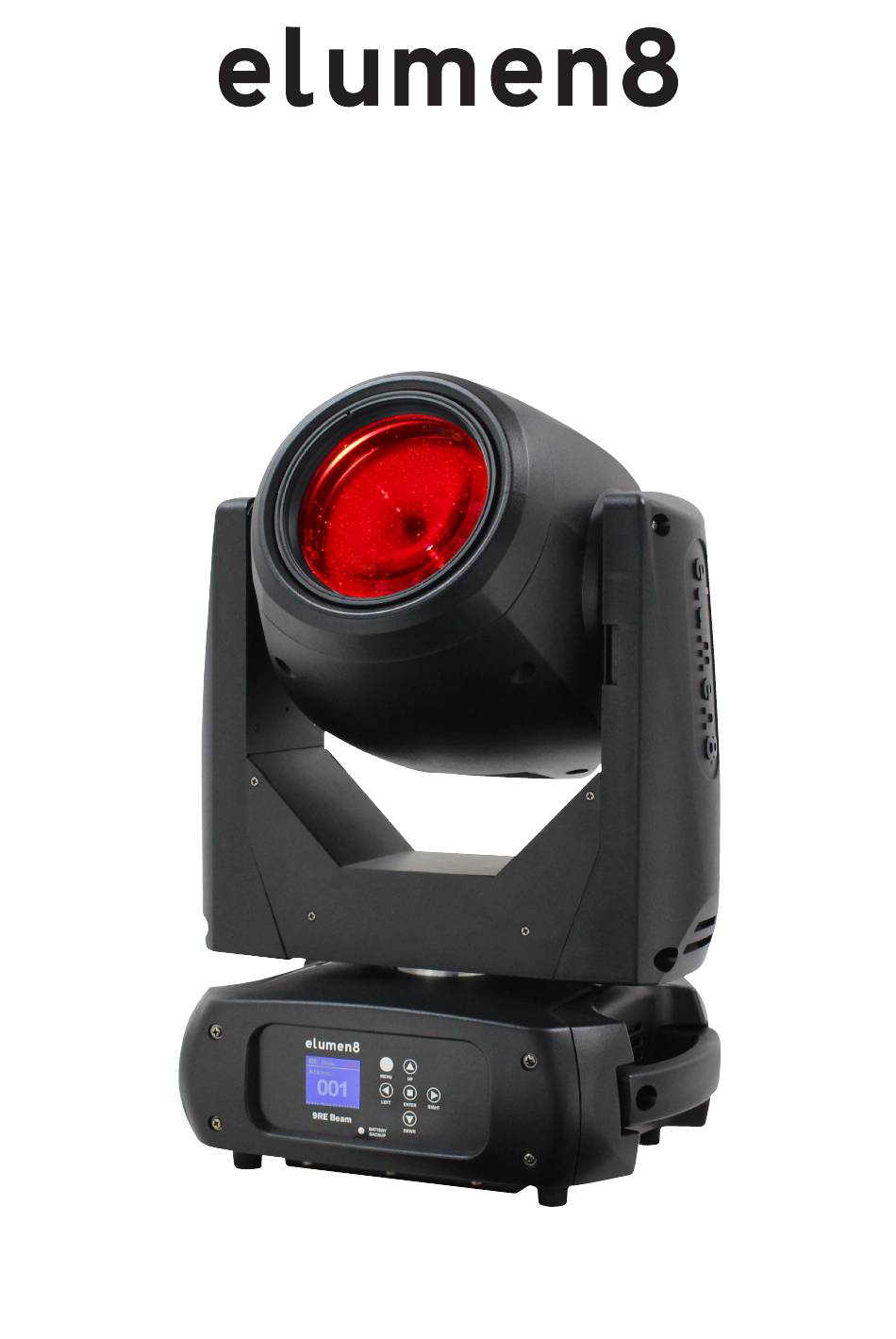

  • Page 1 9RE Beam User Manual Order codes: ELUM016...

  • Page 2: Safety Advice

    Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk 9RE Beam User Manual...
  • Page 3 To avoid damage to internal parts ie. optics, colour filters, gobos, prisms, frost filters, iris, shutters, motors, belts, wiring or lamps. Never expose the lens to direct sunlight, lighting fixtures or lasers even when the fixture is not in use. www.prolight.co.uk 9RE Beam User Manual...
  • Page 4 6 push button menu with 1.8” LCD display, and selectable 16 bit pan and tilt with auto correction, make this a truly ‘event ready’ fixture. Ideal for both rental and installation, the 9RE Beam boasts all the fundamental features you would expect from eLumen8, including a 2 year warranty.

  • Page 5: Technical Specifications

    Technical specifications 211mm 108mm 337mm 243mm 290mm 332mm 270mm www.prolight.co.uk 9RE Beam User Manual...
  • Page 6 1 x power cable 03 - 3-Pin DMX input 07 - PowerCON input 09 - Fuse F3A 250V & 1 x user manual 04 - 3-Pin DMX output 08 - PowerCON output 10 - Fans www.prolight.co.uk 9RE Beam User Manual...

  • Page 7: Installation

    The installation should be checked annually by a qualified person. The eLumen8 9RE Beam can be operated in a number of mounting positions as shown in the diagram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface.
  • Page 8 4. Mount the fixture onto your truss system via the clamps and tighten to ensure secure. 5. Pull the safety cable through the safety cable holes located on the metal base plate on the underside of the fixture and around the truss. www.prolight.co.uk 9RE Beam User Manual...
  • Page 9 Pan/Tilt Lock Mechanism Pan mechanism lock and release every 90° UNLOCKED LOCKED Tilt mechanism lock and release every 45° LOCKED UNLOCKED www.prolight.co.uk 9RE Beam User Manual...

  • Page 10: Lamp Replacement

    Never touch the lamp with bare hands, always wear gloves as oil from hands will shorten the lamps life. Make sure all covers/casings are replaced/secured before operating the fixture to prevent risk and/or damage to the eyes retina. Discharge Lamp Installation: www.prolight.co.uk 9RE Beam User Manual...

  • Page 11: Changing The Lamp

    9. Reset the ‘Lamp Hours’ in the fixtures menu. (See page 13 ‘Lamp Time’ for instructions on how to clear the lamp hours.) Never operate this fixture without the lamp! Do not operate this fixture without all external covers! www.prolight.co.uk 9RE Beam User Manual...

  • Page 12: Lamp Adjustment

    Please note: If you need to adjust the lamp up/down please use the gobo offset adjustment on page 22. The lamp MUST be adjusted with the fixture disconnected from the mains! Do not operate this fixture without all external covers! www.prolight.co.uk 9RE Beam User Manual...
  • Page 13 Please note: The adjusted hotspot may move during the first 100 hours of lamp operation as the lamp stabilises whilst its burning. Please adjust the lamp if the hotspot moves out of the centre. www.prolight.co.uk 9RE Beam User Manual...
  • Page 14 When the unit has been powered on the display will show “Detect Software” followed by “Motor Reset Please Wait...” and “eLumen8 9RE Beam”. The fixture will then return to its home screen. Pressing the “MENU” button once will take the user to the fixtures main menu. Using the “UP” and “DOWN”...
  • Page 15 DMX Fail Blackout “DMX Fail” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between “Hold” or “Blackout”. Press the “ENTER” button to confirm the setting. www.prolight.co.uk 9RE Beam User Manual...
  • Page 16 Gobo Control Gobo Manual Colour Control Colour Manual Prism Control Prism Manual PrismR Control PrismR Manual Prism2 Control Prism 2 Manual Prism 2R Control Prism 2R Manual Focus Control Focus Manual Frost Control Frost Default www.prolight.co.uk 9RE Beam User Manual...
  • Page 17 “MENU” button on to show “Lamp On” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “Off” and “On”. Press the “ENTER” button to confirm the setting. www.prolight.co.uk 9RE Beam User Manual...
  • Page 18 “MENU” button on to show “Ignite Delay” on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “000” - “255”. Press the “ENTER” button to confirm the setting. www.prolight.co.uk 9RE Beam User Manual...
  • Page 19 “MENU” button on to show “Display Backlight” Backlight on the LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “Off” and “On”. Press the “ENTER” button to confirm the setting. www.prolight.co.uk 9RE Beam User Manual...

  • Page 20: Fixture Temperature

    “Lamp Time” on the LCD display. LampTime Press the “ENTER” button and use the “LEFT” Clear and “RIGHT” buttons to select “Hours”. Now press the “ENTER” button to display the LampTime lamps usage time. Clear www.prolight.co.uk 9RE Beam User Manual...
  • Page 21 LCD display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select between “No” and “Yes”. Press the “ENTER” button to perform the factory setting reset when yes is selected. www.prolight.co.uk 9RE Beam User Manual...
  • Page 22 “UP” and “DOWN” buttons to select between Offset Colour Colour “-128” - “127”. Press the “ENTER” button to confirm the setting. Offset Gobo Gobo Dimmer Offset Dimmer Prism Offset Prism Offset Prism2 Prism2 Offset Frost Frost Offset Focus Focus www.prolight.co.uk 9RE Beam User Manual...
  • Page 23 Pan/Tilt Macro 23 192-199 Pan/Tilt Macro 24 200-207 Pan/Tilt Macro 25 208-215 Pan/Tilt Macro 26 216-223 Pan/Tilt Macro 27 224-231 Pan/Tilt Macro 28 CH4 (cont.) 232-239 Pan/Tilt Macro 29 240-247 Pan/Tilt Macro 30 248-255 Pan/Tilt Macro 31 www.prolight.co.uk 9RE Beam User Manual...
  • Page 24 Gobo 13 shake (slow-fast) 132-135 Gobo 14 shake (slow-fast) 136-139 Gobo 15 shake (slow-fast) 140-143 Gobo 16 shake (slow-fast) 144-159 Gobo 17 shake (slow-fast) Gobo wheel scroll CW 160-207 (fast-slow) Gobo wheel scroll CCW 208-255 (slow-fast) www.prolight.co.uk 9RE Beam User Manual...
  • Page 25 Enable blackout whilst pan/ 120-136 tilt/gobo/colour change Disable blackout whilst pan/ 137-153 tilt/gobo/colour change 154-170 No function 171-187 Lamp On 188-204 Lamp Off 205-221 No function Motor reset 222-238 (hold for 5 seconds) 239-255 No function www.prolight.co.uk 9RE Beam User Manual...
  • Page 26 Pan/Tilt Macro 23 192-199 Pan/Tilt Macro 24 200-207 Pan/Tilt Macro 25 208-215 Pan/Tilt Macro 26 216-223 Pan/Tilt Macro 27 224-231 Pan/Tilt Macro 28 232-239 Pan/Tilt Macro 29 240-247 Pan/Tilt Macro 30 248-255 Pan/Tilt Macro 31 www.prolight.co.uk 9RE Beam User Manual...
  • Page 27 Gobo 13 shake (slow-fast) 132-135 Gobo 14 shake (slow-fast) 136-139 Gobo 15 shake (slow-fast) 140-143 Gobo 16 shake (slow-fast) 144-159 Gobo 17 shake (slow-fast) Gobo wheel scroll CW 160-207 (fast-slow) Gobo wheel scroll CCW 208-255 (slow-fast) www.prolight.co.uk 9RE Beam User Manual...
  • Page 28 Gobo 10 Gobo 11 171-187 Lamp On 188-204 Lamp Off 205-221 No function Motor reset 222-238 (hold for 5 seconds) Gobo 12 Gobo 13 Gobo 14 Gobo 15 239-255 No function Gobo 16 Gobo 17 www.prolight.co.uk 9RE Beam User Manual...

  • Page 29: Dmx Setup

    Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk 9RE Beam User Manual...

  • Page 30: Line Termination

    5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk 9RE Beam User Manual...

  • Page 31: Optional Accessories

    Please note: Caution should be used when power linking other fixtures to the 9RE Beam as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source.

  • Page 32: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk 9RE Beam User Manual...
