Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HI302DR

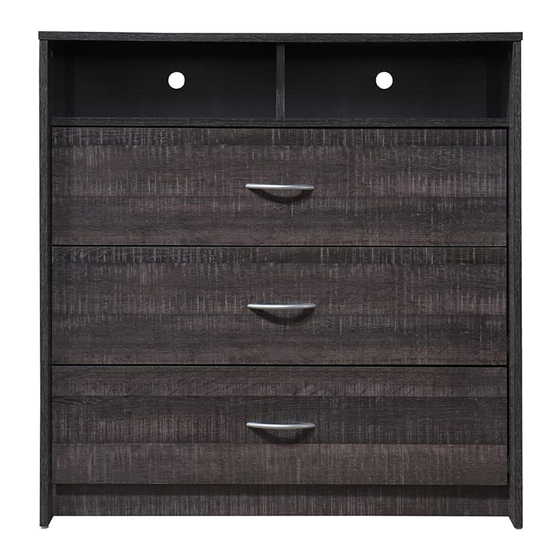

3 DRAWER DRESSERW / ONE OPEN SHELF 2 COMPARTMENTS

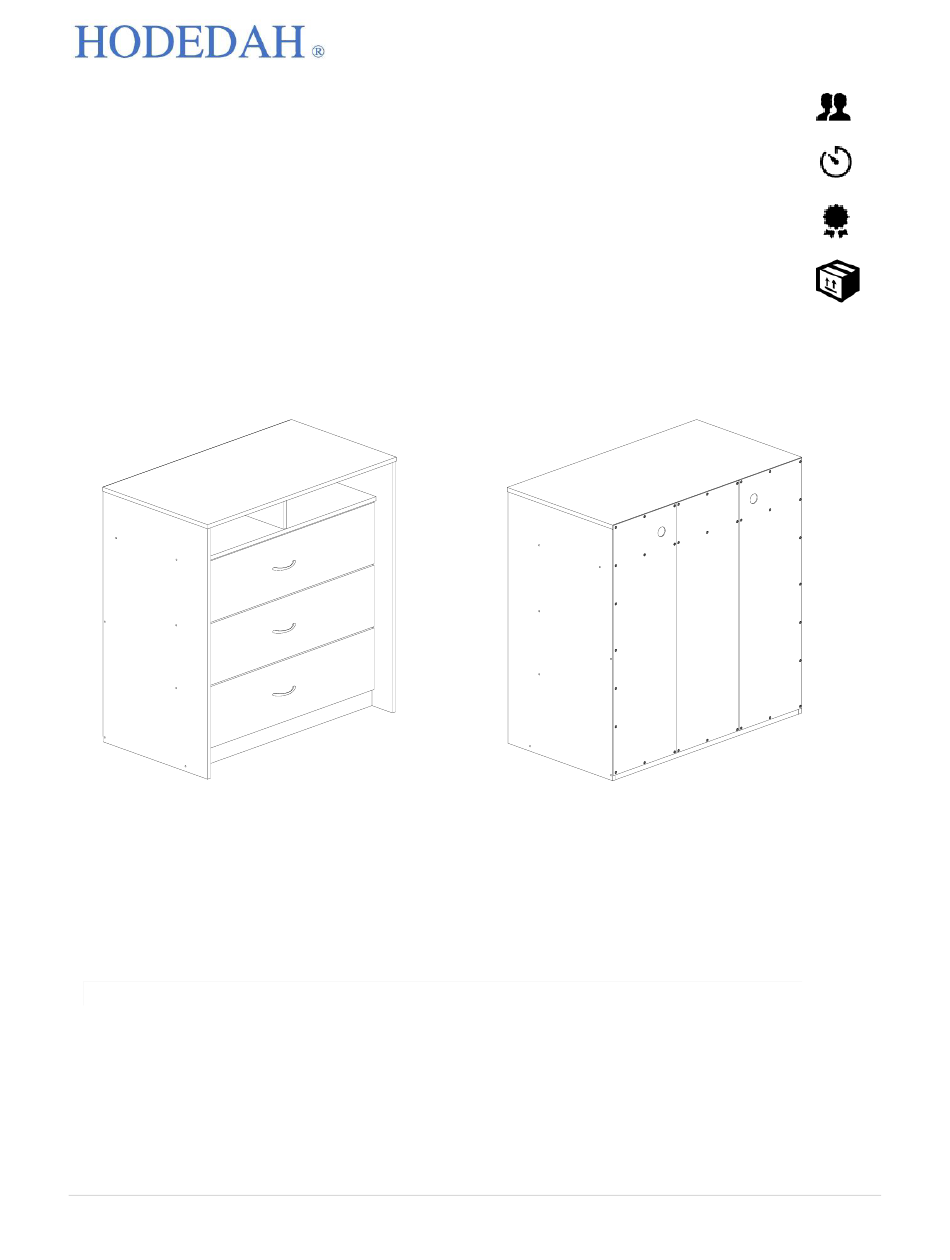

FRONT VIEW
Product Dimensions:
www.Hodedah.com
Height 36.41" x Width 35.43" x Depth 19.68"
Weight Capacity per drawer: 20 lbs.
BACK VIEW
1 |
2 people
90mins
1 YR LTD
1 Box
P a g e
Advertisement
Related Manuals for Hodedah HI302DR
Summary of Contents for Hodedah HI302DR
- Page 1 Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 90mins ITEM # HI302DR 1 YR LTD 3 DRAWER DRESSERW / ONE OPEN SHELF 2 COMPARTMENTS 1 Box BACK VIEW FRONT VIEW Product Dimensions: Height 36.41"...
-
Page 2: Warranty
______________________________________________ WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included. This warranty does not apply to any product that has been improperly assembled, subjected to misuse, abuse or which has been altered or repaired in any way. -
Page 3: Product Care And Maintenance
Never push, drag or pull your furniture, to move to a new location carefully with two or more people carry the unit to its new location. Avoid extreme changes in temperature by arranging furniture away from radiators, heat and air vents and air conditioning units. P a g e www.Hodedah.com... -
Page 4: Hardware List
1. Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need. 2. Check and measure the bolts before applying them to parts. 3. Do not completely tighten all hardware until the entire assembly is complete, unless indicated otherwise. P a g e www.Hodedah.com... -
Page 5: Parts List
Side Panel Right Side Panel Panel 350x145x15mm 350x145x15mm 811x145x15mm 3Pcs Drawer Base Back Panel - Drawer Base 3Pcs Panel Left Supporting Panel 820x344x2.5mm 900x298x2.5mm 335x50x15mm Back Panel - Back Panel - Right Center 900x298x2.5mm 900x298x2.5mm P a g e www.Hodedah.com... - Page 6 The Breakdown… P a g e www.Hodedah.com...
- Page 7 On hardware list, you will find three bundles of drawer slide (F), left and right as shown in picture below. Left Drawer Slide(F) Flat Shaped - Left "L" Shaped - Left Right Drawer Slide(F) "L" Shaped - Right Flat Shaped - Right P a g e www.Hodedah.com...
- Page 8 Insert PVC dowels (A) to Panel 2, 3, 4, 5, 6, 7, 8, 10 and 11's non-thru holes as shown, using hammer to gently tap them in. Non-thru holes (are small indents in the wood that show you where the screws should be.) 8x25mm Dowel 36Pcs P a g e www.Hodedah.com...
- Page 9 (F) at the predrilled holes on the panel 2 as shown. Then tighten the drawer slide (F) with 3 screws (D). M3.5x16mm Screw 18Pcs Drawer Slide 300mm - Right 3Pcs Drawer Slide 300mm - Left 3Pcs P a g e www.Hodedah.com...
- Page 10 Step 3 *Insert nails (G) protection onto the bottom edge of panel 2 and 3, slightly tapping them in with hammer. 5/8 Nail With Pin 4Pcs 10 | P a g e www.Hodedah.com...
- Page 11 Step 4 *Place minifix (B) long piece onto the predrilled holes of panel 1 and 9 as shown. (You will use 15 pieces) Minifix 15Pcs 11 | P a g e www.Hodedah.com...
- Page 12 Step 5 *Attach panel 5 onto panel 4, align the position properly and fasten screws (C) onto the predrilled holes to fix the panel. M4x45mm Screw 2Pcs 12 | P a g e www.Hodedah.com...
- Page 13 * Fasten screws (C) from the outside of panel 2 by using the predrilled holes to attach panel 5, 6 and 8. *Cover all the screws (C)' head with stickers (E) provided by stick up onto hole of screw (C)' heads one by one. M4x45mm Screw 7Pcs Sticker 7Pcs 13 | P a g e www.Hodedah.com...
- Page 14 *Fasten screws (C) onto the predrilled holes of panel 3 to fix panel 5, 6 and 8 predrilled holes. *Cover all the screws (C)' head with stickers (E) provided by stick up onto hole of screw (C)' heads one by one. M4x45mm Screw 7Pcs Sticker 7Pcs 14 | P a g e www.Hodedah.com...
- Page 15 * Gently tap the panel 1 to connect panel 2, panel 3 and panel 4 firmly. *Insert minifix (B) nuts into both sides predrilled holes of panel 2, 3 and 4, then tighten them clockwise in order to lock minifix up by going underneath panel 1. Minifix 6Pcs 15 | P a g e www.Hodedah.com...
- Page 16 Step 9 *Fix approximately 30 pieces of nails (J) into panel 15, 16 and 17 using a hammer. 6/8 Power Pin 30Pcs 16 | P a g e www.Hodedah.com...
- Page 17 10 and 11 properly. (As shown) *Insert the minifix (B) nuts with the cross arrow mark facing upwards and aim to panel 10,11 and 13 's top thru holes.(As shown) Minifix 9Pcs 17 | P a g e www.Hodedah.com...
- Page 18 *Next tighten screws (C) to panel 11's upper thru holes to fix up to the panel 12. *Tighten screws (C) to panel 12's upper thru holes to fix up to the panel 13. M4x45mm Screw 15Pcs 18 | P a g e www.Hodedah.com...
- Page 19 Step 12 *Flip the drawer over. *Tighten 2 screws (I) from inner side of panel 9 into the handle (H) holes. Handle Moon (96mm) 3Pcs M3x21mm Screw 6Pcs 19 | P a g e www.Hodedah.com...
- Page 20 9. Then tighten 3 screws (D) on each drawer slides (F). "L" shaped - left of the drawer slide stick to the end of drawer front panel 9. M3.5x16mm Screw 9Pcs Drawer Slide 300mm - Left 3Pcs 20 | P a g e www.Hodedah.com...
- Page 21 9. Then tighten 3 screws (D) on each drawer slides (F). "L" shaped - right of the drawer slide stick to the end of drawer front panel 9. M3.5x16mm Screw 9Pcs Drawer Slide 300mm - Right 3Pcs 21 | P a g e www.Hodedah.com...
- Page 22 *Take all drawers, and slide them (the white rollers at drawer slide at both side of drawers are to go into the track of the slide at each side panel.) All the way gently, one drawer by one drawer starting from bottom to the top accordingly. 22 | P a g e www.Hodedah.com...
- Page 23 23 | P a g e www.Hodedah.com...
- Page 24 Job Complete… Enjoy &Thank you for purchasing from Hodedah! 24 | P a g e www.Hodedah.com...
