HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read abd keep for future reference.
ITEM # HI1628-F

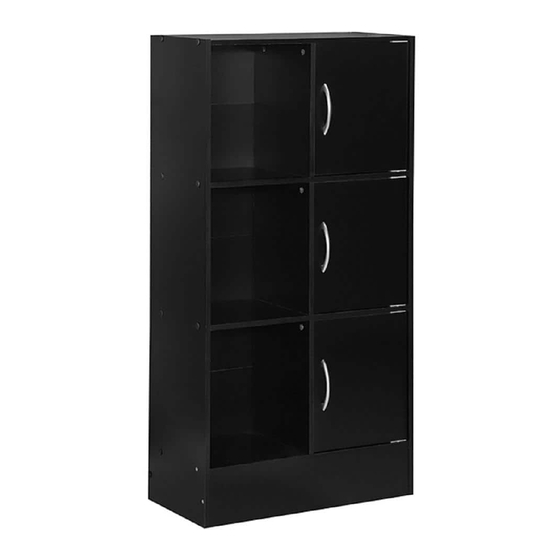

STORAGE CABINET
FRONT VIEW
Product Dimensions: Height 47.24" x Width 23.62" x Depth 11.81"
www.Hodedah.com
®
Weight Capacity per shelf : 85 lbs
1 person
45 mins
1 YR LTD
1 Box
BACK VIEW
1
Page
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hodedah HI1628-F
Summary of Contents for Hodedah HI1628-F
- Page 1 HODEDAH ® Assembly Instructions 1 person This instruction booklet contains important safety information, please read abd keep for future reference. 45 mins ITEM # HI1628-F 1 YR LTD STORAGE CABINET 1 Box FRONT VIEW BACK VIEW Product Dimensions: Height 47.24" x Width 23.62" x Depth 11.81"...
-
Page 2: Warranty
FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included. -
Page 3: Product Care And Maintenance
HODEDAH ® Let's get started... Helpful hints, read before beginning assembly Make sure you receive all boxes.If your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2. -
Page 4: Hardware List
HODEDAH ® Hardware List Crosshead Screw Screw Screw m6.3 x 40mm m3.5 x 14mm m3.5 x 22mm Door Holder Anti-Tipping Kit Mini Fix 12mm Handle Magnet Catch KD Leg Pin 96mm (Silver) Allen Key L Bracket Plastic Leg L Shape... -
Page 5: Part List
HODEDAH ® Part List www.Hodedah.com Page... - Page 6 HODEDAH ® The Breakdown www.Hodedah.com Page...
- Page 7 HODEDAH ® Step 1 Mini Fix 12mm 3 pcs -Fix the Mini Fix Cam (F1) into marking hole at 3pcs of panel no. 4. Step 2 Mini Fix 12mm -Insert the Mini Fix Bolt (F1) into panel no. 5. www.Hodedah.com...
- Page 8 HODEDAH ® Step 3 Mini Fix 12mm 2 pcs -Insert the Mini Fix Bolt (F1) into 2pcs of panel no. 6. Step 4 Crosshead Screw m6.3 x 40mm 4 Allen Key 2 Sets -Attach the panel no. 4 & 6 together by using Crosshead Screw m6.3 x 40mm (A17).
- Page 9 HODEDAH ® Step 5 Round Sticker 17mm Lock 2nd Insert Right Position -Assemble all panels together by using Mini Fix 12mm (F1) . -Cover the Mini Fix 12mm (F1) by using Round Sticker (Z). Step 6 Crosshead Screw m6.3 x 40mm 2 Allen Key -Assemble the panel no.
- Page 10 HODEDAH ® Step 7 Crosshead Screw m6.3 x 40mm 10 Allen Key Crosshead Cover -Assemble the panel no. 3 & 8 to the unit by using Crosshead Screw m6.3 x 40mm (A17). -Use Allen Key (N1) to tighten the Crosshead Screw m6.3 x 40mm (A17).
- Page 11 HODEDAH ® Step 9 Crosshead Screw m6.3 x 40mm 10 Allen Key Crosshead Cover -Attach the panel no. 2 to the unit by using Crosshead Screw m6.3 x 40mm (A17). -Use Allen Key (N1) to tighten the Crosshead Screw m6.3 x 40mm (A17).
- Page 12 HODEDAH ® Step 11 Screw m3.5 x 14mm Leg Pin Plastic Leg L Shape L Bracket 2 pcs Hit Softly -Nail a Leg Pin (L1) at bottom of panel no. 8 . -Use Screw m3.5 x 14mm (A2) to assemble the Plastic Leg L shape (L2) between panel no. 2, 3 & 8.
-
Page 13: Final Step
HODEDAH ® Step 13 Screw m3.5 x 14mm Magnet Catch KD -Insert the Magnet Catch KD (K1) at panel no. 5 & 6. -Use Screw m3.5 x 14mm (A2) to assemble Magnet Plate (K1) at panel no. 1. Step 14 Final step Screw m3.5 x 22mm... - Page 14 HODEDAH ® FITTING OF ANTI-TIP SAFETY STRAP STEP 1: - Attach the mounting bracket (a) to the furniture in the solid part below the top panel a few inches away from the side of the unit. - Screw (b) through the smallest hole of (a).
- Page 15 HODEDAH ® Job Complete Enjoy & Thank you for purchasing from Hodedah! www.Hodedah.com Page...
