Related Manuals for Hodedah HI5009-Z
Summary of Contents for Hodedah HI5009-Z

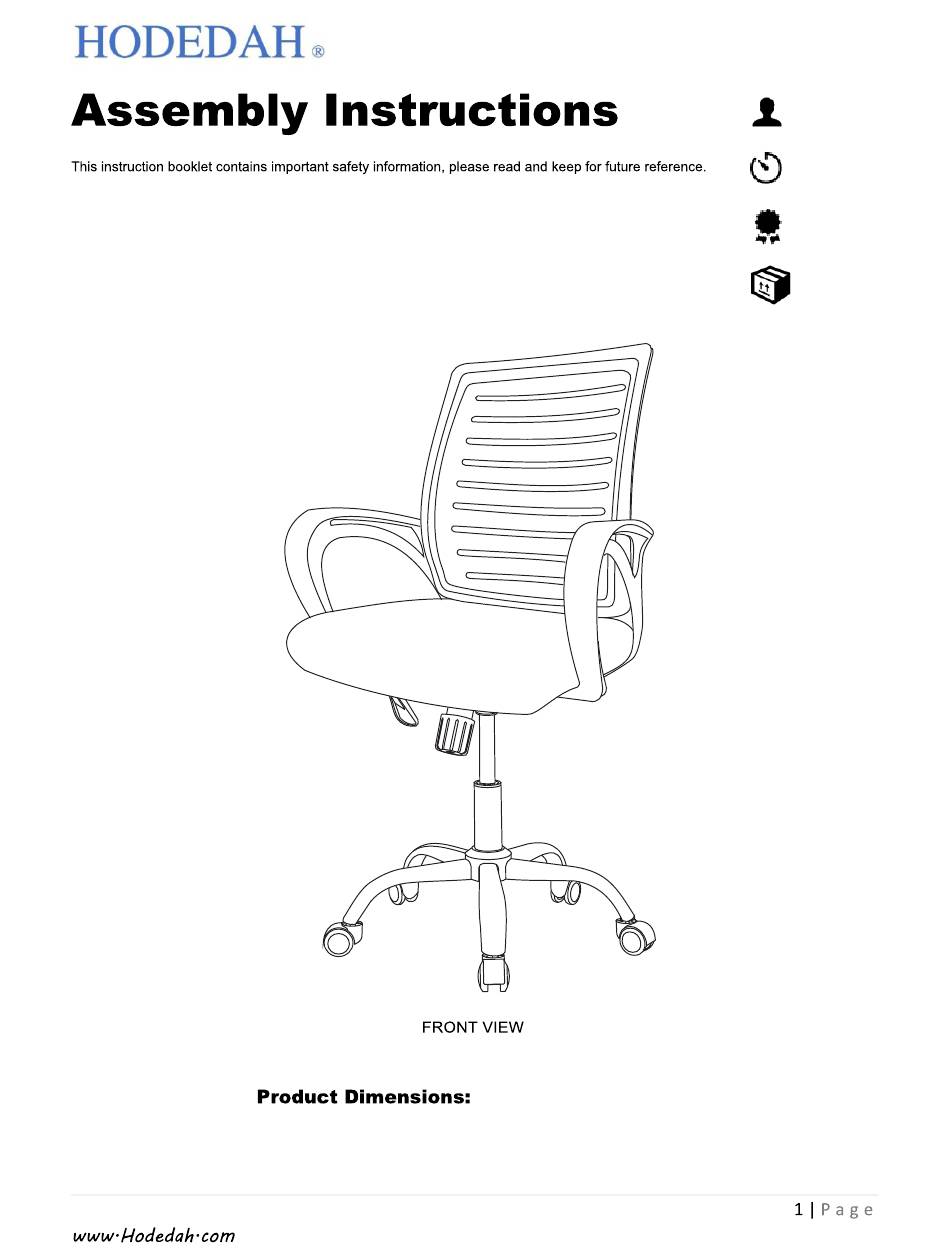

- Page 1 30 mins ITEM#HI5009-Z 1 YR LTD OFFICE CHAIR 1 Box H40.15"W22.4"D17.4"...
- Page 4 Allen Key Silver Bolt Silver Bolt Ø6*20mm Ø6*35mm Chair back Chair arms Chair seat Metal base Gas bar Base Plastic cover Caster...
- Page 6 Attach caster (8) to base(6) .(see photos for example) ● Insert plastic cover (7) on base(6). ●...
-
Page 7: Hardware Required
Attach gas bar (5) to base(6) .(see photos for example) ● Attach chair arm(2) on chair back(1), screw 4 X bolt(B) with allen key (C) in the hole ● after four holes aligned .(see photos for example) HARDWARE REQUIRED... - Page 8 Attach chair seat (3) on chair arm (2),screw 4 X bolt(A) with allen key (C)in the holes. ● (see photos for example) HARDWARE REQUIRED Step 6 Attach metal base (4) on bottom of chair seat (3),fix screw 4 X bolt(B) with allen key © ●...
- Page 9 Step 7 Put chair seat (3) on top of gas bar(5), let the gas top into metal base hole, sit on chair ● to let gas bar attach together.(see photos for example) Step 8 Tighten all screws after every part is in the right position; ●...
