HEDS-9922PRGEVB
HEDS-9922EVB User Guide

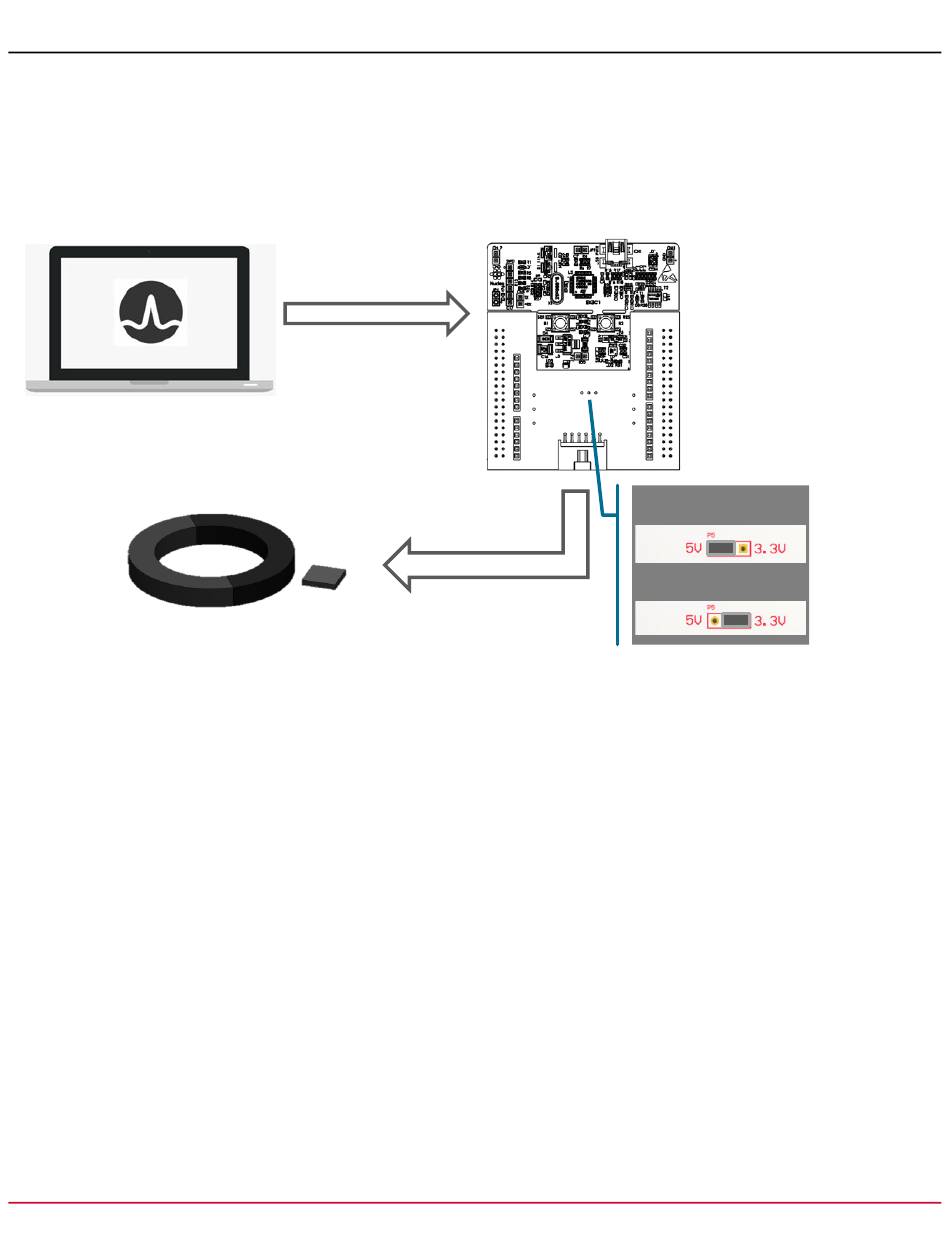

Hardware Setup
1. Connect the STM32-Nucleo to PC using a USB port.
2. Connect the 12-pin ribbon cable; one end to the interface board, the other to the encoder.
3. Select the operating voltage of sensor by connecting the jumper to either 3.3V or 5V.
Program Installation
The installation software for the programming kit is available in the USB drive provided. To install the application software,
double-click the software HEDS-9922 PRGEVB Programming Evaluation Kit.msi and follow the onscreen instructions to
finish the installation.
After the installation is complete, the program is available in the selected working directory
For latest software update, visit this link: https://broadcom.box.com/v/HEDS-9922-Programming-Software.
NOTE:
The software is for PCs running on the Windows operating system. The minimum requirement is a Window 10
64-bit operating system.
Broadcom
Magnetic Encoder IC Programming Kit Evaluation Board
Micro
USB
HEDS-9922-UG101
5
