HEDS-9922PRGEVB
HEDS-9922EVB User Guide

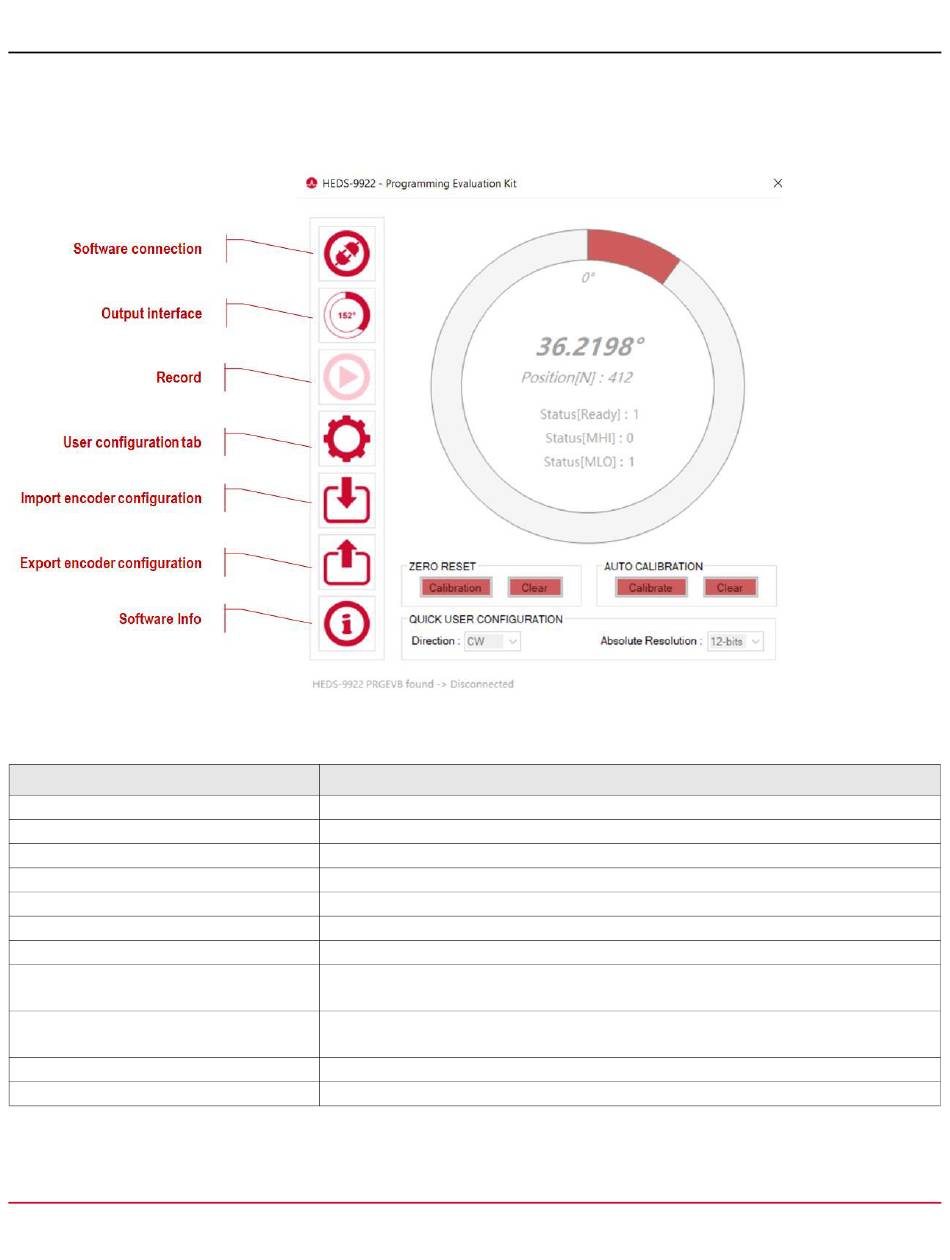

User Interface of Calibration Software
Main Tab
The following table provides a functional description of each button.
Name
Software connection
Output interface
Record
User configuration tab
Import encoder configuration
Export encoder configuration
Software Info
ZERO RESET
AUTO CALIBRATION
Direction
Absolute resolution
Broadcom
Description
Enable the software connection to the board
Toggle between Fix mode and Chart mode
Record position streaming in Fix mode
Configure
Recall the encoder configuration from the saved file
Save the existing encoder configuration to a file
Software revision
Calibrate: Reset single-turn position
Clear: Erase reset data
Calibrate: Initiate the calibration sequence
Clear: Erase the calibration data
Select the counting direction with respect to magnet turning
Select the absolute resolution
Magnetic Encoder IC Programming Kit Evaluation Board
HEDS-9922-UG101
6
