HEDS-9922PRGEVB
HEDS-9922EVB User Guide

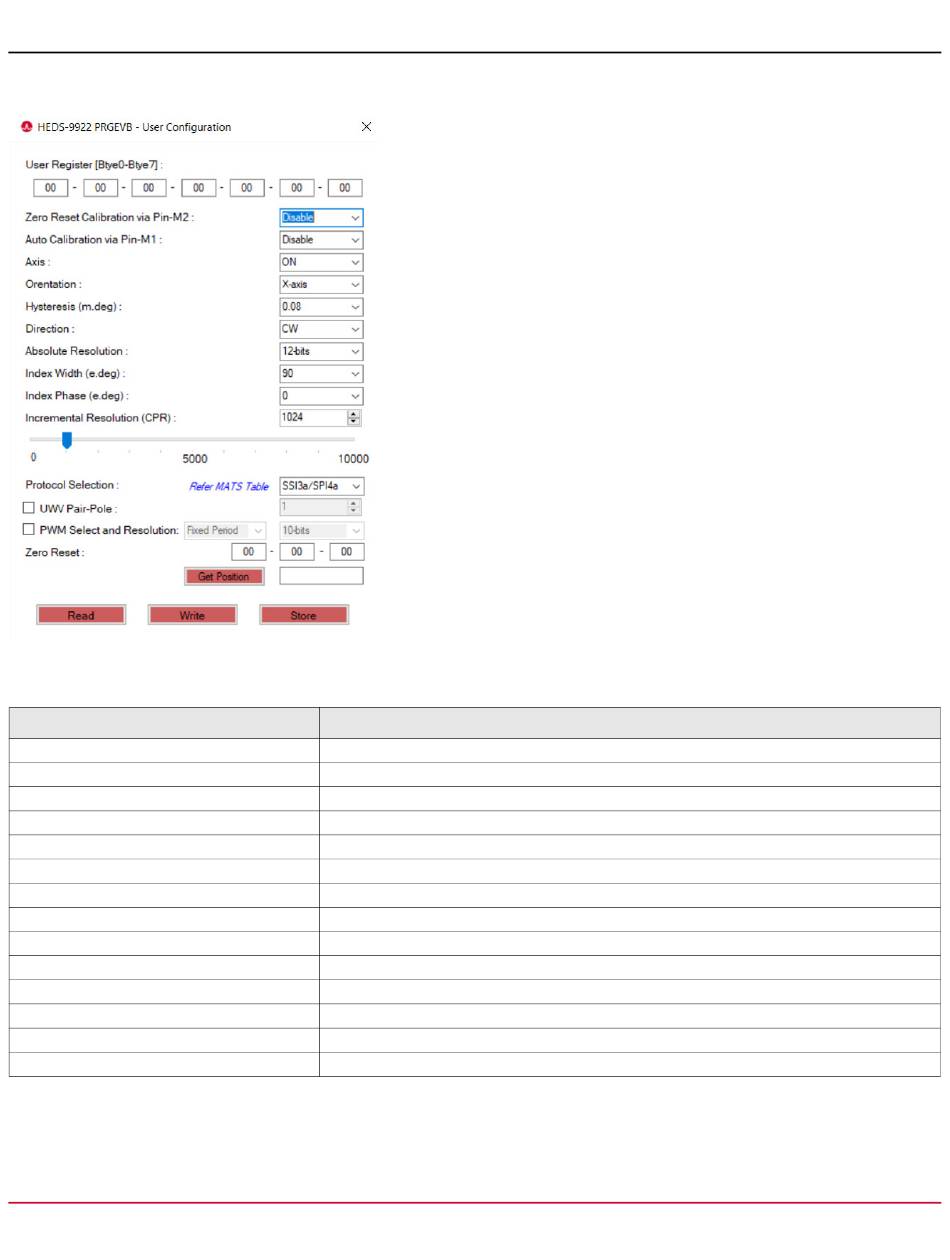

User Configuration Tab
The following table provides a functional description of each button.
Name
User Register [Byte0-Byte7]
Zero Reset Calibration via Pin-M2
Auto Calibration via Pin-M1
Axis
Hysteresis (m.deg)
Direction
Absolute Resolution
Index Width (e.deg)
Index Phase (e.deg)
Incremental Resolution (CPR)
Protocol Selection
UVW Pair-Pole
PWM Select Resolution
Zero Reset
NOTE:
Click Read to read the encoder configuration from memory, and click Write to write the configuration into memory
after the selection. Click Store to store the configuration in memory to be available on the next power-up. Click Get
Position to get the current absolute position
Broadcom
Description
User programmable memory
Enable calibration through hardware pin M2
Enable calibration through hardware pin M1
Select On-Axis or Off-Axis
Select the Incremental hysteresis
Select the counting direction with respect to magnet turning
Select the absolute resolution
Select the Index width
Select the Index location
Select the incremental resolution
Select the protocol per
Table 1
Select the UVW pole-pair resolution
Select the PWM type and resolution
Input single-turn offset value
Magnetic Encoder IC Programming Kit Evaluation Board
HEDS-9922-UG101
7
