HEDS-9922PRGEVB
HEDS-9922EVB User Guide

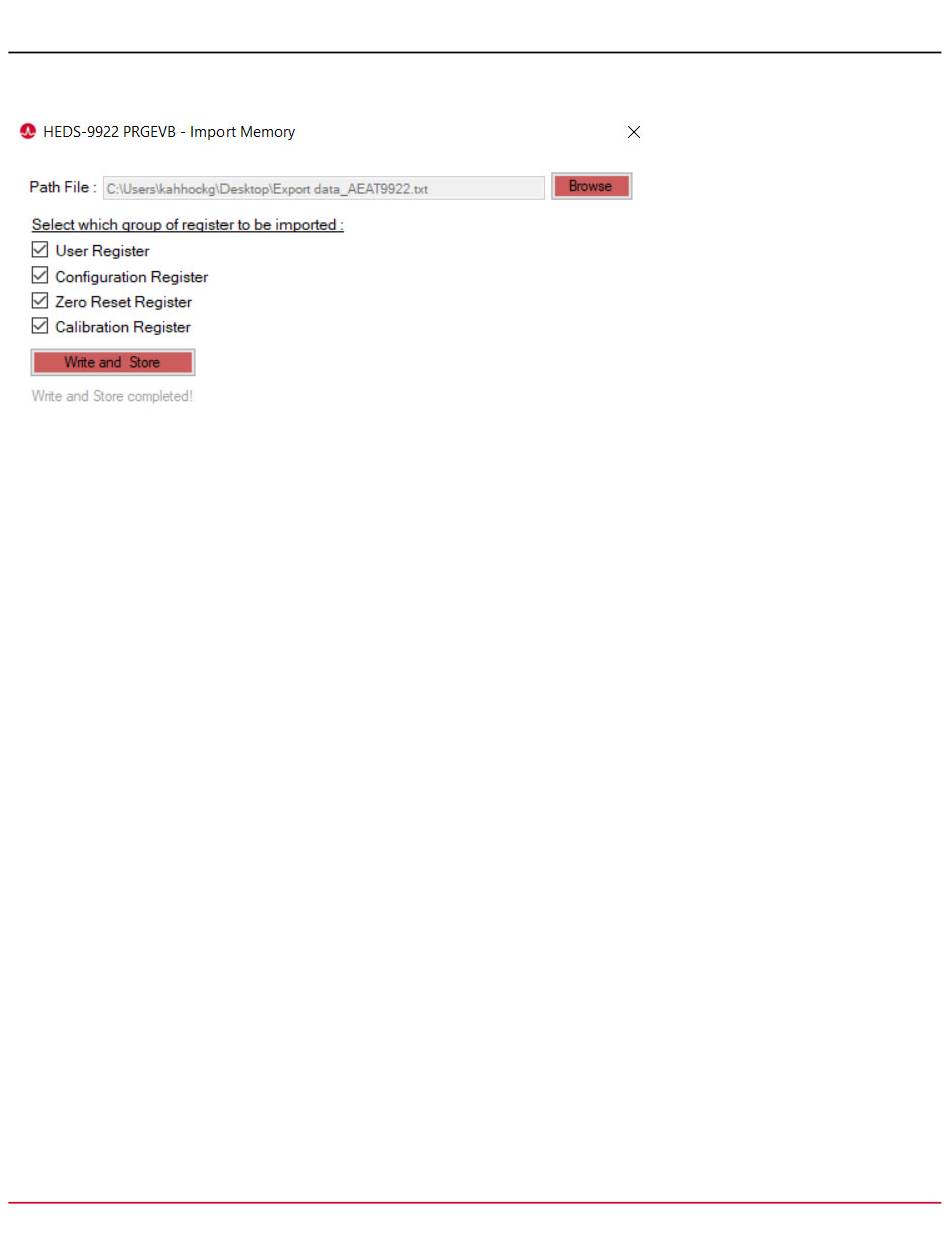

Import Encoder Configuration Tab
The Import Encoder Configuration tab consists of four groups of registers. Each group can be selected individually or in
different combinations.
The import encoder configuration procedure follows:
1. Click the Import Encoder Configuration tab.
The preceding figure is displayed.
2. Click Browse to select the targeted file.
3. Select the check box of the targeted register group.
4. Click Write and Store.
The completion status appears below the Write and Store button.
Export Encoder Configuration Tab
The export encoder configuration procedure follows:
1. Click Export Encoder Configuration.
2. Enter the file name, select the file location, and click Save.
