HEDS-9922PRGEVB
HEDS-9922EVB User Guide

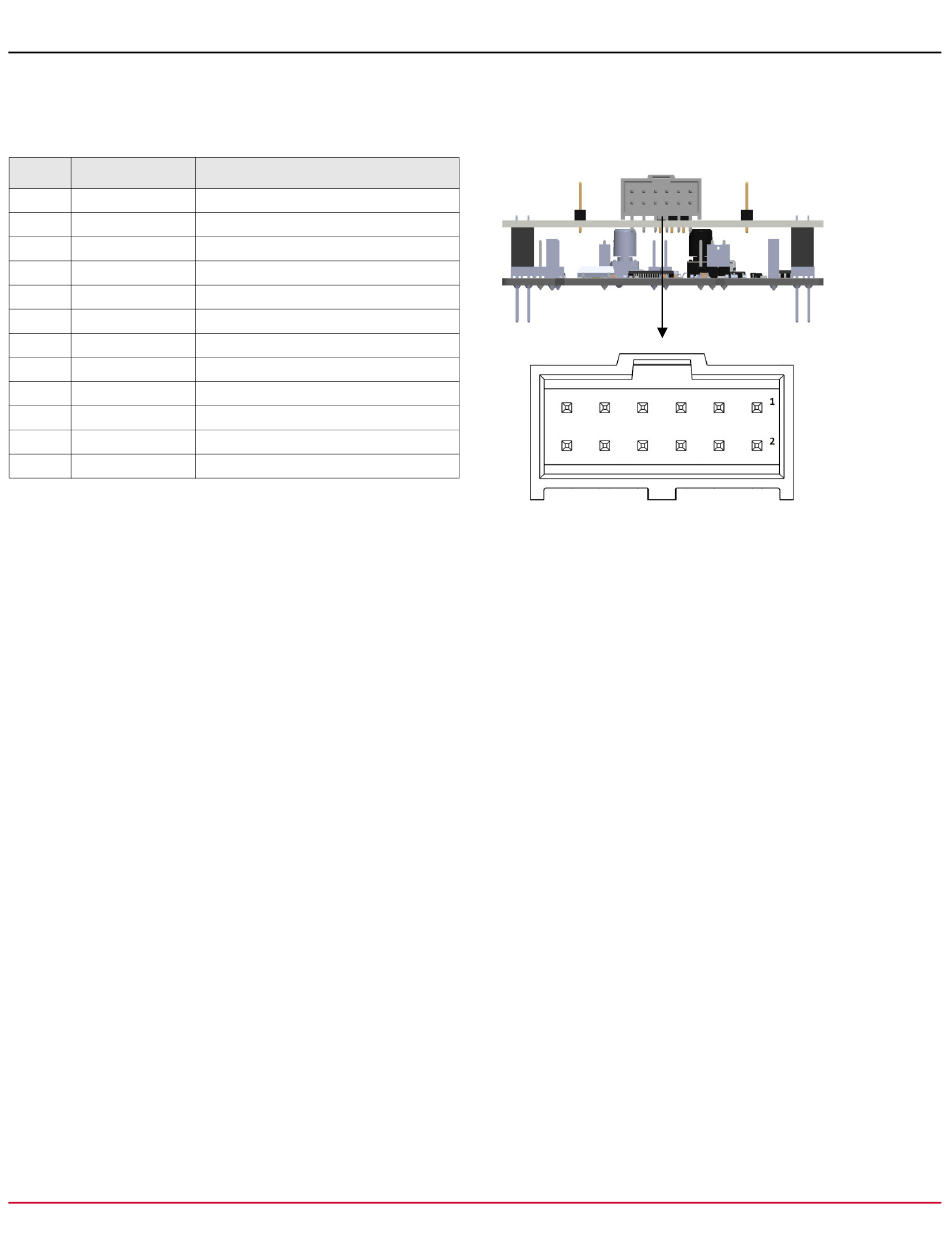

HEDS-9922PRGEVB Programming Kit Pinout
The table shows the pin assignment for each I/O port.
Pin Description
1 A
2 B
3 VSS
4 VDD
5 I
6 MSEL
7 M2
8 M3
9 M0
10 M1
11 VDDA
12 VSSA
Broadcom
Function
Incremental Signal A
Incremental Signal B
Supply Ground
Supply Input
Incremental Signal Index
Mode Selection
I/O pad. See Table 1
I/O pad. See Table 1
I/O pad. See Table 1
I/O pad. See Table 1
Supply Input
Supply Ground
Magnetic Encoder IC Programming Kit Evaluation Board
HEDS-9922-UG101
3
